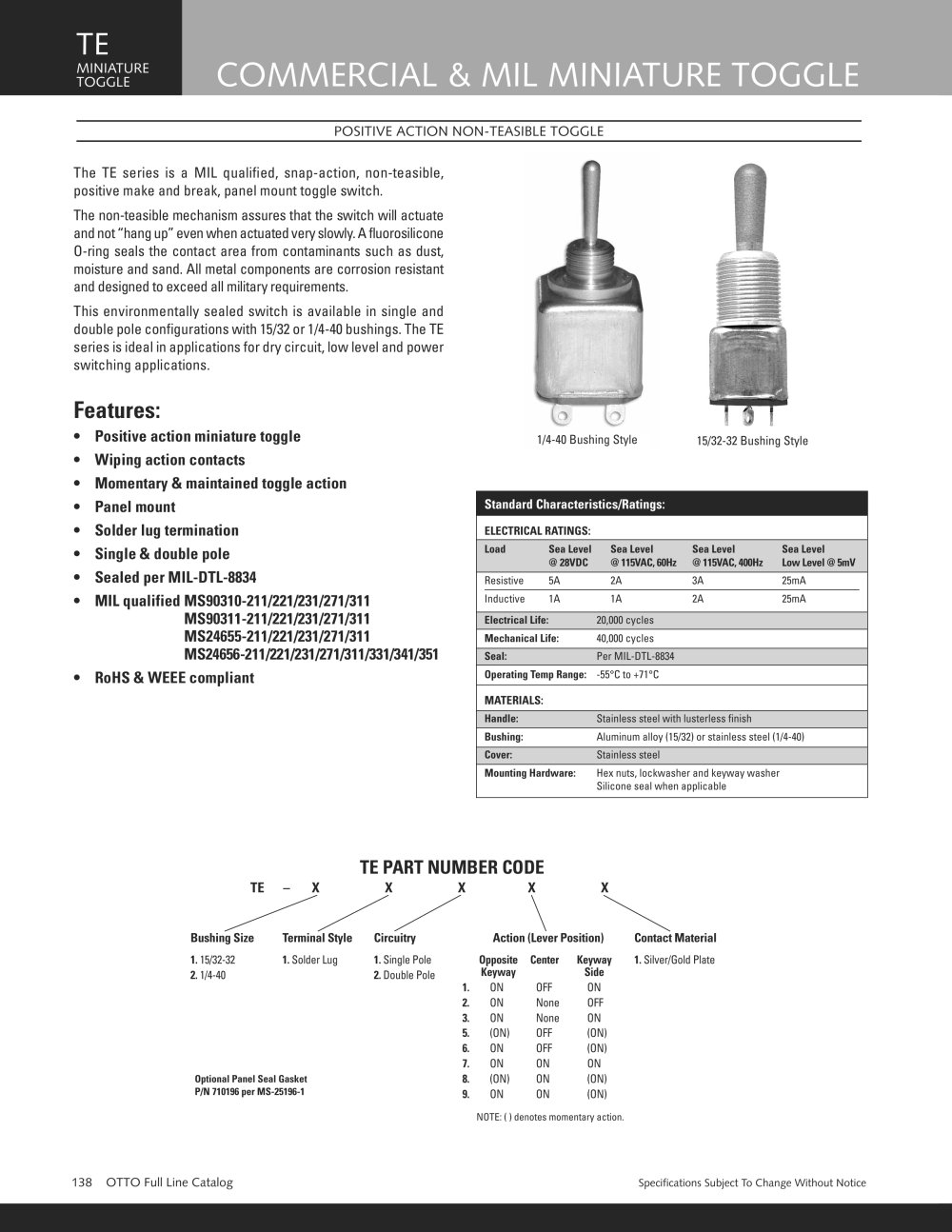

COMMERCIAL MINIATURE & MIL MINIATURE TOGGLE TOGGLE TE 138 OTTO Full Line Catalog Specifications Subject To Change Without Notice POSITIVE ACTION NON-TEASIBLE TOGGLE The TE series is a MIL qualified, snap-action, non-teasible, positive make and break, panel mount toggle switch. The non-teasible mechanism assures that the switch will actuate and not “hang up” evenwhen actuated very slowly.Afluorosilicone O-ring seals the contact area from contaminants such as dust, moisture and sand. All metal components are corrosion resistant and designed to exceed allmilitary requirements. This environmentally sealed switch is available in single and double pole configurations with 15/32 or 1/4-40 bushings. The TE series is ideal in applications for dry circuit, low level and power switching applications. Features: • Positive action miniature toggle • Wiping action contacts • Momentary & maintained toggle action • Panel mount • Solder lug termination • Single & double pole • Sealed per MIL-DTL-8834 • MIL qualified MS90310-211/221/231/271/311 MS90311-211/221/231/271/311 MS24655-211/221/231/271/311 MS24656-211/221/231/271/311/331/341/351 • RoHS &WEEE compliant 1/4-40 Bushing Style 15/32-32 Bushing Style Standard Characteristics/Ratings: ELECTRICAL RATINGS: Load Sea Level Sea Level Sea Level Sea Level @ 28VDC @115VAC, 60Hz @115VAC, 400Hz LowLevel@5mV Resistive 5A 2A 3A 25mA Inductive 1A 1A 2A 25mA Electrical Life: 20,000 cycles Mechanical Life: 40,000 cycles Seal: Per MIL-DTL-8834 Operating Temp Range: -55°C to +71°C MATERIALS: Handle: Stainless steel with lusterless finish Bushing: Aluminum alloy (15/32) or stainless steel (1/4-40) Cover: Stainless steel Mounting Hardware: Hex nuts, lockwasher and keyway washer Silicone seal when applicable Bushing Size Terminal Style Circuitry Action (Lever Position) ContactMaterial 1. 15/32-32 2. 1/4-40 1. Solder Lug 1. Single Pole 2. Double Pole Opposite Center Keyway Keyway Side 1. ON OFF ON 2. ON None OFF 3. ON None ON 5. (ON) OFF (ON) 6. ON OFF (ON) 7. ON ON ON 8. (ON) ON (ON) 9. ON ON (ON) 1. Silver/Gold Plate Optional Panel Seal Gasket P/N 710196 per MS-25196-1 TE PART NUMBER CODE TE – X X X X X NOTE: ( ) denotes momentary action.

Open the catalog to page 1

COMMERCIAL & MIL MINIATURE TOGGLE MINIATURE TOGGLE TE Specifications Subject To Change Without Notice www.ottoexcellence.com 139 TOGGLE SWITCHES POSITIVE ACTION NON-TEASIBLE TOGGLE TE-111 15/32-32, Single Pole MS90310 TE-112 15/32-32, Double Pole MS90311 CIRCUITS MADEWITH LEVER IN THESE POSITIONS: Opposite Center Keyway MS Dash Keyway Number 1. ON 2-3 OFF ON 1-2 -211 2. ON 2-3 None OFF -221 3. ON 2-3 None ON 1-2 -231 5. (ON) 2-3 OFF (ON) 1-2 -271 6. ON 2-3 OFF (ON) 1-2 -311 CIRCUITS MADEWITH LEVER IN THESE POSITIONS: Opposite Center Keyway MS Dash Keyway Number 1. ON 2-3, 5-6 OFF ON 1-2,...

Open the catalog to page 2

COMMERCIAL MINIATURE & MIL MINIATURE TOGGLE TOGGLE TE 140 OTTO Full Line Catalog Specifications Subject To Change Without Notice POSITIVE ACTION NON-TEASIBLE TOGGLE TE-211 1/4-40 Bushing, Single Pole MS24655 TE-212 1/4-40, Double Pole MS24656 CIRCUITS MADEWITH LEVER IN THESE POSITIONS: Opposite Center Keyway MS Dash Keyway Number 1. ON 2-3, 5-6 OFF ON 1-2, 4-5 -211 2. ON 2-3, 5-6 None OFF -221 3. ON 2-3, 5-6 None ON 1-2, 4-5 -231 5. (ON) 2-3, 5-6 OFF (ON) 1-2, 4-5 -271 6. ON 2-3, 5-6 OFF (ON) 1-2, 4-5 -311 7. ON 2-3, 5-6 OFF ON 1-2, 4-5 -331 8. (ON) 1-2, 4-5 OFF (ON) 1-2, 4-5 -341 9. (ON)...

Open the catalog to page 3
