OTTO
SL Slide Switch

SL Slide Switch

Product catalog summary

Overview: The document provides technical specifications for the SL Slide Switch, available in both commercial and military grades. It highlights the features, standard characteristics, and materials used in the construction of the switch.

Features:

Available in single and double pole, double throw configurations.
Low-level rating with gold-plated contacts and terminals.
3-position center OFF with options for momentary or maintained switch action.
Dusttight design compliant with MIL-PRF-8805 Design 2.
Various button contours and colors available.
FAA/PMA approval available upon request.
Compliant with RoHS and WEEE standards.

Standard Characteristics/Ratings:

Electrical Ratings: Resistive load at 5A, Inductive load at 3A, Lamp load at 1A, DWV at 1050Vrms, Low Level at 10mA @ 30mV.
Electrical and Mechanical Life: 100,000 cycles.
Seal: Dusttight per MIL-PRF-8805 Design 2.
Operating Temperature Range: -55°C to +85°C.
Operating Force: 24 oz +/- 10 oz.
Return Force: 10 oz +8 oz/-3 oz to center from maintained position.
Total Travel: 0.120 inches max in two directions.
Overtravel: 0.010 inches min.

Materials:

Case and Button: Thermoplastic.
Terminals: Beryllium copper with silver plate, gold flash over silver plate for low level.
Mounting Hardware: Includes hex nut and lockwasher.

SL Part Number Code: The document provides a detailed part number coding system to specify the number of poles, button style, case style, seal grade, current rating, switch action/circuit, and button color.

Series Information: The document lists various series of the SL Slide Switch, including SL-1111, SL-1211, SL-2111, SL-2211, and SL-2221, each with specific configurations and approvals.

Catalog excerpts

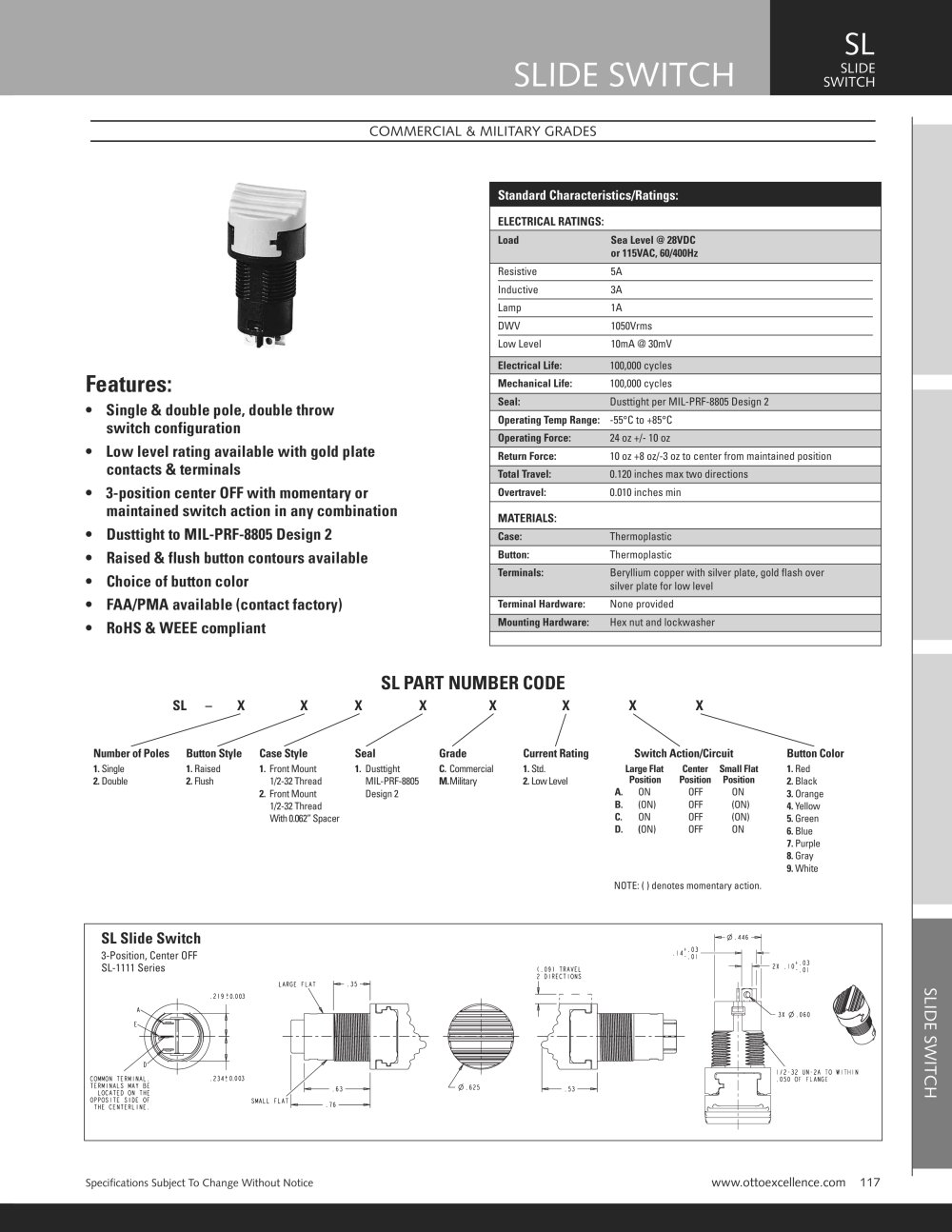

SLIDE SWITCH SLIDE SWITCH SL Specifications Subject To Change Without Notice www.ottoexcellence.com 117 SLIDE SWITCH COMMERCIAL & MILITARY GRADES Features: • Single & double pole, double throw switch configuration • Low level rating available with gold plate contacts & terminals • 3-position center OFF with momentary or maintained switch action in any combination • Dusttight to MIL-PRF-8805 Design 2 • Raised & flush button contours available • Choice of button color • FAA/PMA available (contact factory) • RoHS &WEEE compliant Standard Characteristics/Ratings: ELECTRICAL RATINGS: Load Sea Level @ 28VDC or 115VAC, 60/400Hz Resistive 5A Inductive 3A Lamp 1A DWV 1050Vrms Low Level 10mA @ 30mV Electrical Life: 100,000 cycles Mechanical Life: 100,000 cycles Seal: Dusttight per MIL-PRF-8805 Design 2 Operating Temp Range: -55°C to +85°C Operating Force: 24 oz +/- 10 oz Return Force: 10 oz +8 oz/-3 oz to center from maintained position Total Travel: 0.120 inches max two directions Overtravel: 0.010 inches min MATERIALS: Case: Thermoplastic Button: Thermoplastic Terminals: Beryllium copper with silver plate, gold flash over silver plate for low level Terminal Hardware: None provided Mounting Hardware: Hex nut and lockwasher SL Slide Switch 3-Position, Center OFF SL-1111 Series Number of Poles Button Style Case Style Seal Grade Current Rating Switch Action/Circuit Button Color 1. Single 2. Double 1. Raised 2. Flush 1. FrontMount 1/2-32 Thread 2. FrontMount 1/2-32 Thread With 0.062”Spacer 1. Dusttight MIL-PRF-8805 Design 2 C. Commercial M.Military 1. Std. 2. LowLevel Large Flat Center Small Flat Position Position Position A. ON OFF ON B. (ON) OFF (ON) C. ON OFF (ON) D. (ON) OFF ON 1. Red 2. Black 3. Orange 4. Yellow 5. Green 6. Blue 7. Purple 8. Gray 9.White SL – X X X X X X X X SL PART NUMBER CODE NOTE: ( ) denotes momentary action.

Open the catalog to page 1

SLIDE SLIDE SWITCH SWITCH SL 118 OTTO Full Line Catalog Specifications Subject To Change Without Notice COMMERCIAL & MILITARY GRADES SL Slide Switch 3-Position, Center OFF SL-1211 Series SL Slide Switch 3-Position, Center OFF SL-2111 Series SL Slide Switch 3-Position, Center OFF SL-2211 Series SL Slide Switch 3-Position, Center OFF SL-2221 Series FAA–PMA Approved

Open the catalog to page 2
