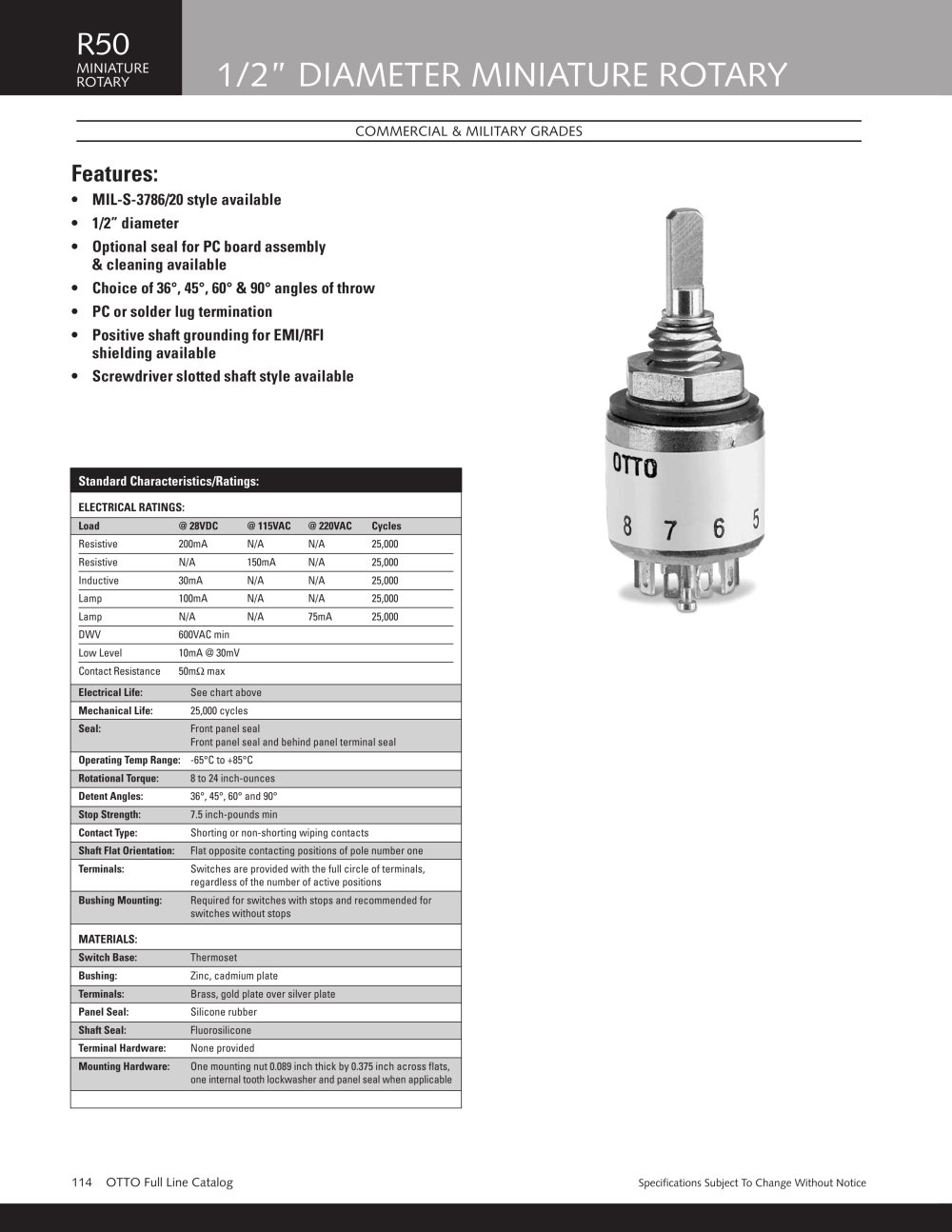

1/2” DIAMETER MINIATURE MINIATURE ROTARY ROTARY R50 114 OTTO Full Line Catalog Specifications Subject To Change Without Notice COMMERCIAL & MILITARY GRADES Features: • MIL-S-3786/20 style available • 1/2” diameter • Optional seal for PC board assembly & cleaning available • Choice of 36°, 45°, 60° & 90° angles of throw • PC or solder lug termination • Positive shaft grounding for EMI/RFI shielding available • Screwdriver slotted shaft style available Standard Characteristics/Ratings: ELECTRICAL RATINGS: Load @ 28VDC @ 115VAC @ 220VAC Cycles Resistive 200mA N/A N/A 25,000 Resistive N/A 150mA N/A 25,000 Inductive 30mA N/A N/A 25,000 Lamp 100mA N/A N/A 25,000 Lamp N/A N/A 75mA 25,000 DWV 600VAC min Low Level 10mA @ 30mV Contact Resistance 50mÙ max Electrical Life: See chart above Mechanical Life: 25,000 cycles Seal: Front panel seal Front panel seal and behind panel terminal seal Operating Temp Range: -65°C to +85°C Rotational Torque: 8 to 24 inch-ounces Detent Angles: 36°, 45°, 60° and 90° Stop Strength: 7.5 inch-pounds min Contact Type: Shorting or non-shorting wiping contacts Shaft Flat Orientation: Flat opposite contacting positions of pole number one Terminals: Switches are provided with the full circle of terminals, regardless of the number of active positions Bushing Mounting: Required for switches with stops and recommended for switches without stops MATERIALS: Switch Base: Thermoset Bushing: Zinc, cadmium plate Terminals: Brass, gold plate over silver plate Panel Seal: Silicone rubber Shaft Seal: Fluorosilicone Terminal Hardware: None provided Mounting Hardware: One mounting nut 0.089 inch thick by 0.375 inch across flats, one internal tooth lockwasher and panel seal when applicable

Open the catalog to page 1

1/2” DIAMETER MINIATURE ROTARY MINIATURE ROTARY R50 Specifications Subject To Change Without Notice www.ottoexcellence.com 115 ROTARY SWITCHES COMMERCIAL & MILITARY GRADES Angle of Number Number of Throw of Poles Positions Per Pole 36° 1 02 thru 10 2 02 thru 05 45° 1 02 thru 08 2 02 thru 04 60° 1 02 thru 06 2 02 thru 03 90° 1 02 thru 04 2 02 NOTE: 45°, 60° and 90° drawings available upon request. Size Grade Terminal Style Bushing Length Seal Angle of Throw Decks Poles Per Deck Positions Per Pole Contact Type Spec. Options 0. 0.500” OD C. Commercial M.Military* A. Solder/Std. P. PC...

Open the catalog to page 2

116 OTTO Full Line Catalog Specifications Subject To Change Without Notice 1/2” DIAMETER MINIATURE MINIATURE ROTARY ROTARY R50 COMMERCIAL & MILITARY GRADES Size Grade Terminal Style Bushing Length Seal Angle of Throw Decks Poles Per Deck Positions Per Pole Contact Type Spec. Options 0. 0.500” OD C. Commercial M.Military* A. Solder/Std. P. PC Tails/Std. W.Solder/Low Level M.PC/Low Level A. 0.312” B. 0.292” C. 0.250” D. 0.312” With Pos. Shaft Grd. E. 0.292” With Pos. Shaft Grd. F. 0.250” With Pos. Shaft Grd. A. Unsealed B. Front Panel Seal C. Front Panel Seal and Behind Panel Terminal Seal...
