LP3 - Illuminated, Vandal Resistant, Momentary Action

LP3 - Illuminated, Vandal Resistant, Momentary Action
2Pages

Catalog excerpts

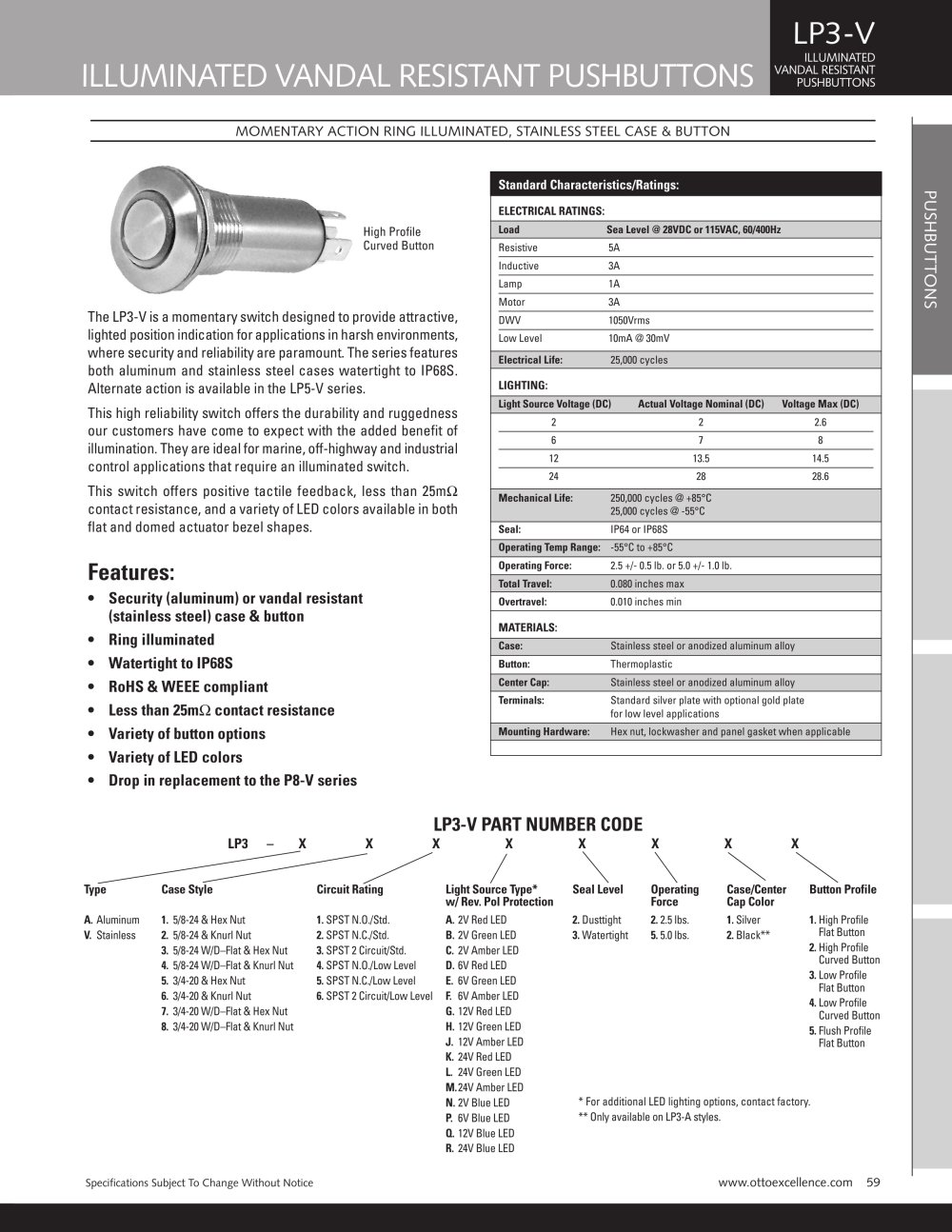

LP3 - Illuminated, Vandal Resistant, Momentary Action - 1

Specifications Subject To Change Without Notice www.ottoexcellence.com 59 PUSHBUTTONS ILLUMINATED VANDAL RESISTANT PUSHBUTTONS ILLUMINATED VANDAL RESISTANT PUSHBUTTONS LP3-V MOMENTARY ACTION RING ILLUMINATED, STAINLESS STEEL CASE & BUTTON Standard Characteristics/Ratings: ELECTRICAL RATINGS: Load Sea Level @ 28VDC or 115VAC, 60/400Hz Resistive 5A Inductive 3A Lamp 1A Motor 3A DWV 1050Vrms Low Level 10mA @ 30mV Electrical Life: 25,000 cycles LIGHTING: Light Source Voltage (DC) Actual Voltage Nominal (DC) Voltage Max (DC) 2 2 2.6 6 7 8 12 13.5 14.5 24 28 28.6 Mechanical Life: 250,000 cycles @ +85°C 25,000 cycles @ -55°C Seal: IP64 or IP68S Operating Temp Range: -55°C to +85°C Operating Force: 2.5 +/- 0.5 lb. or 5.0 +/- 1.0 lb. Total Travel: 0.080 inches max Overtravel: 0.010 inches min MATERIALS: Case: Stainless steel or anodized aluminum alloy Button: Thermoplastic Center Cap: Stainless steel or anodized aluminum alloy Terminals: Standard silver plate with optional gold plate for low level applications Mounting Hardware: Hex nut, lockwasher and panel gasket when applicable Type Case Style Circuit Rating Light Source Type* w/ Rev. Pol Protection Seal Level Operating Force Case/Center Cap Color Button Profile A. Aluminum V. Stainless 1. 5/8-24 & Hex Nut 2. 5/8-24 & Knurl Nut 3. 5/8-24 W/D–Flat & Hex Nut 4. 5/8-24 W/D–Flat & Knurl Nut 5. 3/4-20 & Hex Nut 6. 3/4-20 & Knurl Nut 7. 3/4-20 W/D–Flat & Hex Nut 8. 3/4-20 W/D–Flat & Knurl Nut 1. SPST N.O./Std. 2. SPST N.C./Std. 3. SPST 2 Circuit/Std. 4. SPST N.O./Low Level 5. SPST N.C./Low Level 6. SPST 2 Circuit/Low Level A. 2V Red LED B. 2V Green LED C. 2V Amber LED D. 6V Red LED E. 6V Green LED F. 6V Amber LED G. 12V Red LED H. 12V Green LED J. 12V Amber LED K. 24V Red LED L. 24V Green LED M.24V Amber LED N. 2V Blue LED P. 6V Blue LED Q. 12V Blue LED R. 24V Blue LED 2. Dusttight 3.Watertight 2. 2.5 lbs. 5. 5.0 lbs. 1. Silver 2. Black** 1. High Profile Flat Button 2. High Profile Curved Button 3. Low Profile Flat Button 4. Low Profile Curved Button 5. Flush Profile Flat Button LP3-V PART NUMBER CODE LP3 – X X X X X X X X * For additional LED lighting options, contact factory. ** Only available on LP3-A styles. The LP3-V is a momentary switch designed to provide attractive, lighted position indication for applications in harsh environments, where security and reliability are paramount. The series features both aluminum and stainless steel cases watertight to IP68S. Alternate action is available in the LP5-V series. This high reliability switch offers the durability and ruggedness our customers have come to expect with the added benefit of illumination. They are ideal for marine, off-highway and industrial control applications that require an illuminated switch. This switch offers positive tactile feedback, less than 25mÙ contact resistance, and a variety of LED colors available in both flat and domed actuator bezel shapes. Features: • Security (aluminum) or vandal resistant (stainless steel) case & button • Ring illuminated • Watertight to IP68S • RoHS & WEEE compliant • Less than 25mÙ contact resistance • Variety of button options • Variety of LED colors • Drop in replacement to the P8-V series High Profile Curved Button

Open the catalog to page 1

LP3 - Illuminated, Vandal Resistant, Momentary Action - 2

60 OTTO Full Line Catalog Specifications Subject To Change Without Notice ILLUMINATED VANDAL RESISTANT PUSHBUTTONS ILLUMINATED VANDAL RESISTANT PUSHBUTTONS LP3-V MOMENTARY ACTION RING ILLUMINATED, STAINLESS STEEL CASE & BUTTON LP3-1 High Profile Flat Button LP3-2 High Profile Curved Button LP3-3 Low Profile Flat Button LP3-4 Low Profile Curved Button LP3-5 Flush Profile Flat Button
