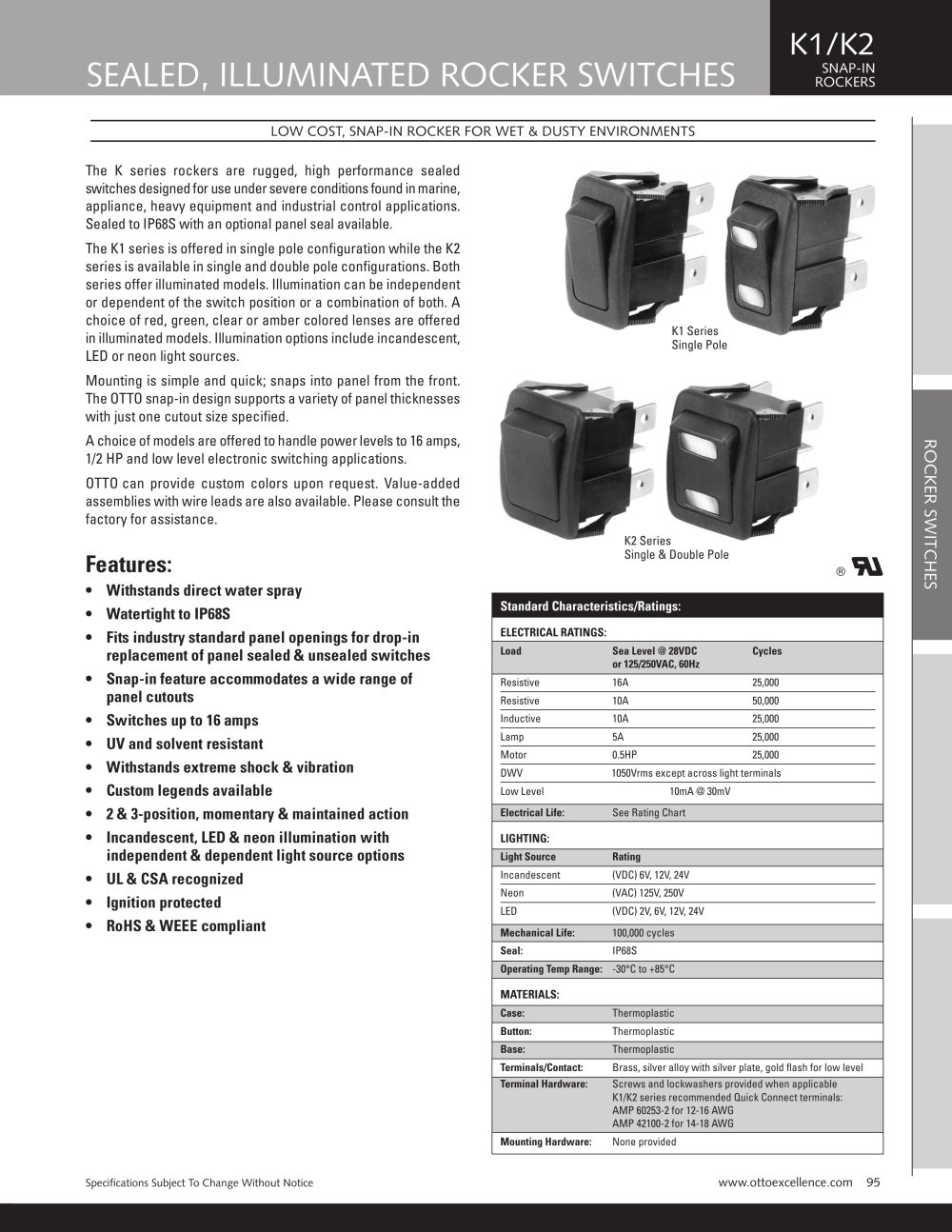

Specifications Subject To Change Without Notice www.ottoexcellence.com 95 ROCKER SWITCHES SEALED, ILLUMINATED ROCKER SWITCHES SNAP-IN ROCKERS K1/K2 LOW COST, SNAP-IN ROCKER FOR WET & DUSTY ENVIRONMENTS The K series rockers are rugged, high performance sealed switches designed for use under severe conditions found inmarine, appliance, heavy equipment and industrial control applications. Sealed to IP68S with an optional panel seal available. The K1 series is offered in single pole configuration while the K2 series is available in single and double pole configurations. Both series offer illuminated models. Illumination can be independent or dependent of the switch position or a combination of both. A choice of red, green, clear or amber colored lenses are offered in illuminated models. Illumination options include incandescent, LED or neon light sources. Mounting is simple and quick; snaps into panel from the front. The OTTO snap-in design supports a variety of panel thicknesses with just one cutout size specified. A choice ofmodels are offered to handle power levels to 16 amps, 1/2 HP and low level electronic switching applications. OTTO can provide custom colors upon request. Value-added assemblies with wire leads are also available. Please consult the factory for assistance. Features: • Withstands direct water spray • Watertight to IP68S • Fits industry standard panel openings for drop-in replacement of panel sealed & unsealed switches • Snap-in feature accommodates a wide range of panel cutouts • Switches up to 16 amps • UV and solvent resistant • Withstands extreme shock & vibration • Custom legends available • 2 & 3-position, momentary & maintained action • Incandescent, LED & neon illumination with independent & dependent light source options • UL & CSA recognized • Ignition protected • RoHS &WEEE compliant K1 Series Single Pole K2 Series Single & Double Pole ® Standard Characteristics/Ratings: ELECTRICAL RATINGS: Load Sea Level @ 28VDC Cycles or 125/250VAC, 60Hz Resistive 16A 25,000 Resistive 10A 50,000 Inductive 10A 25,000 Lamp 5A 25,000 Motor 0.5HP 25,000 DWV 1050Vrms except across light terminals Low Level 10mA @ 30mV Electrical Life: See Rating Chart LIGHTING: Light Source Rating Incandescent (VDC) 6V, 12V, 24V Neon (VAC) 125V, 250V LED (VDC) 2V, 6V, 12V, 24V Mechanical Life: 100,000 cycles Seal: IP68S Operating Temp Range: -30°C to +85°C MATERIALS: Case: Thermoplastic Button: Thermoplastic Base: Thermoplastic Terminals/Contact: Brass, silver alloy with silver plate, gold flash for low level Terminal Hardware: Screws and lockwashers provided when applicable K1/K2 series recommended Quick Connect terminals: AMP 60253-2 for 12-16 AWG AMP 42100-2 for 14-18 AWG Mounting Hardware: None provided

Open the catalog to page 1

SEALED, ILLUMINATED SNAP-IN ROCKER SWITCHES ROCKERS K2 98 OTTO Full Line Catalog Specifications Subject To Change Without Notice LOW COST, SNAP-IN ROCKER FOR WET & DUSTY ENVIRONMENTS, 1 & 2 POLES K2 Series 0.25 Quick Connect Terminals Position "A" Position "B" Position "C" Panel cutout dimensions are for reference only. Differences in panel material and thickness may require changes to the panel cutout for optimum fit. Optional Panel Gasket 0.062” thickness P/N 807038-1 0.031” thickness P/N 807038-2 Terminal Style/ Switch Rating A. Q.C./Std. B. Screw/Std. C. Solder/Std. D. Q.C./Low Level E....

Open the catalog to page 2

SEALED, ILLUMINATED ROCKER SWITCHES SNAP-IN ROCKERS K2 Specifications Subject To Change Without Notice www.ottoexcellence.com 99 ROCKER SWITCHES LOW COST, SNAP-IN ROCKER FOR WET & DUSTY ENVIRONMENTS, 1 & 2 POLES Light Type A. No Light B. 6V Incandescent C. 12V Incandescent D. 24V Incandescent E. 125VAC Neon F. 250VAC Neon G. 2V Red LED H. 2V Green LED J. 2V Amber LED K. 6V Red LED L. 6V Green LED M.6V Amber LED N. 12V Red LED P. 12V Green LED Q. 12V Amber LED R. 24V Red LED S. 24V Green LED T. 24V Amber LED Light/Circuit Location A. No Light Legend & Orientation A. None X X X X X Lens Color...

Open the catalog to page 3
