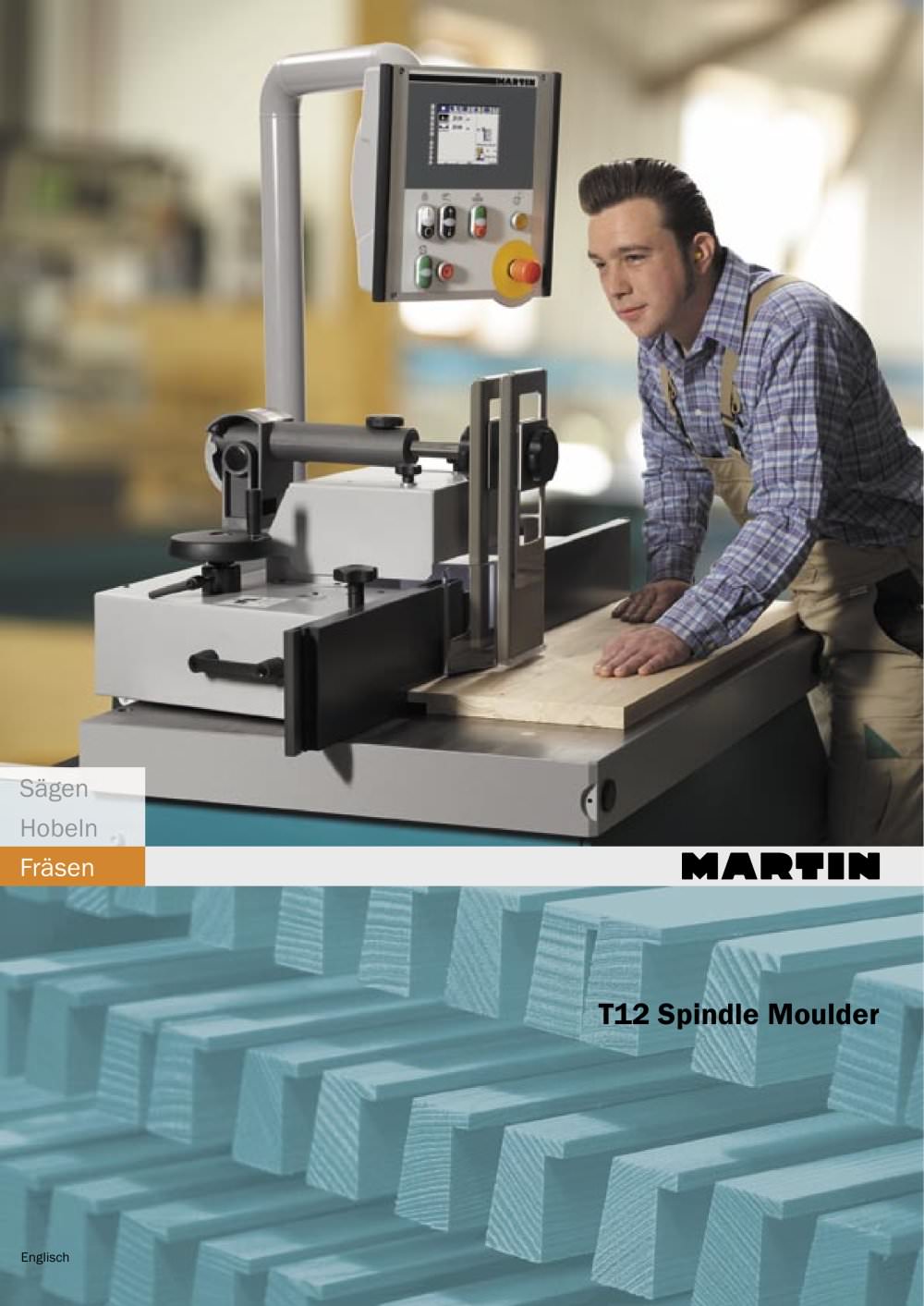

Overview of the T12 Spindle Moulder
The T12 Spindle Moulder by MARTIN is a compact-class machine designed for both small workshops and industrial applications. It combines premium features with affordability, offering flexibility and high-end capabilities without a tilting spindle.

Key Features

Touch-Screen Control System: Simplifies operation and reduces setup times, storing data for up to 500 tools and 100 program settings.
Compound Frame: Built with a robust steel and concrete frame for stability and vibration absorption.
Fence System: Features a bilateral guidance system for precision with a repetition accuracy of ± 0.025 mm, with options for motorized adjustments.
HSK Clamping System: Compatible with CNC machining centers, offering a tool-free clamping system.

Performance and Customization
The T12 supports variable rotational speed control from 1,000 to 12,000 rpm and offers motor upgrades from 5.5 kW to 11 kW. Optional features and accessories enhance its performance.

Accessories and Options

Digital Display and Motorized Positioning: Enhance precision and ease of use.
Sliding Table: Available with a 1,400 mm operating range for large cross-sections and complex operations.
Moulding Assistant Software: Provides interactive guidance for setting up moulding jobs.

Specifications

Motor Rating: Options include 5.5 kW, 7.5 kW, and 11.0 kW.
Rotational Speed: Optional continuous speed control from 1,000 to 12,000 rpm.
Spindle Height Adjustment: 150 mm.
Table Openings: Sizes range from 74 mm to 255 mm.
User Interface: 5.7" touch-screen with a resolution of 0.05 mm.
Dust and Noise Emission: Low dust emission and noise levels of 84.6 dB(A) idle and 88.3 dB(A) running.
Weight: Approximately 950 kg.

Optional Accessories

Fence for Insert Cutting: Adjustable for precise and safe insert cutting.
Spring Collet Arbor T1263: Allows use of high-speed moulding tools with exchangeable collets.

Operational Features

Control System: PowerPC-based control unit with a 2-way swivel.
Safety and Standards: Complies with industry safety regulations and noise emission standards.

Manufacturer Information
Otto Martin Maschinenbau GmbH & Co. KG, located in Ottobeuren, Germany.

Conclusion
The MARTIN T12 Spindle Moulder is versatile and powerful, suitable for a wide range of applications. Its compact design, advanced control systems, and customizable options make it ideal for both entry-level users and demanding industrial environments.
