Micro interruption compensators

Product catalog summary

Introduction
The document introduces the MICRO INTERRUPTIONS COMPENSATOR WITH SVG FUNCTION, a device designed to address voltage sags and micro interruptions in automated processes, particularly with the rise of renewable energy generation.

Device Overview
The OXYGENzero device compensates for micro grid interruptions up to 1 second using supercapacitor technology and includes an SVG function for reactive power compensation. It operates in parallel with the electricity grid and features a fast intervention time of less than 5ms.

Technical Specifications

Rated Voltage: 400-415V (480V)
System: 3P+N
Rated Frequency: 50Hz ±5% (60Hz ±5%)
Rated Power: 500kVA to 2000kVA
Efficiency: >99%
Correction Time: ≤5 ms
Correction Duration: 1 second (up to 10 seconds with derating)
Dimensions and Weight: Vary by model
Technology: IGBT + Supercapacitors
Cooling: Forced ventilation
Protection Degree: IP2X

Advantages of Supercapacitors

Long service life and high number of cycles
Low maintenance costs
High temperature resistance
Reduced dimensions and weight
Modularity for expansion

Additional Protections

Supercapacitor protection with DC fuses
Overvoltage protection with Class II surge arrestors

User Interface
The device features a multilingual 10” touch display for viewing electrical values and setting operating parameters.

Applications

Electronics industry
Food & Beverage
Continuous production lines
Medical and pharmaceutical sectors
Computer equipment and data centers

Company Information
ORTEA SpA, based in Italy, reserves the right to alter products without notice and emphasizes the importance of authorized use of their documentation.

Catalog excerpts

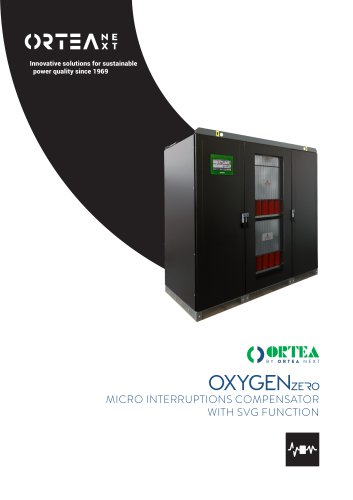

Innovative solutions for sustainable power quality since 1969 MICRO INTERRUPTIONS COMPENSATOR WITH SVG FUNCTION

Open the catalog to page 1

With the exponential growth of renewable energy generation Voltage SAGs and micro interruptions are the main cause of failures and malfunctions in plants with automated processes. MICRO INTERRUPTIONS COMPENSATOR WITH SVG FUNCTION OXYGENzero is an electronic device capable of compensating for micro grid interruptions of up to 1s (expandable with derating) at full load using energy accumulators based on supercapacitor technology. The equipment incorporates the SVG function for reactive power compensation. PROTECTION AGAINST MICRO INTERRUPTIONS • Long service life: 10 times longer than standard...

Open the catalog to page 2

1 second (up to 10 seconds with derating) IGBT + Supercapacitors Supercapacitors 4kHz 1.000.000 cycles Static thyristor switch 100% Harmonics tolerance according to IEC 61000-2-4 Class 2 (THDV < 8%)* 10” touch screen display Indoor MODBUS RTU MODBUS TCP, Ethernet IP DC fuses Output class II surge arrestors Total protection kit (K version)**: Input circuit breaker Output circuit breaker Bypass switch TECHNICAL FEATURES Type Rated voltage System Rated frequency Rated power Rated current SVG function - max reactive power Efficiency Correction time Correction duration Dimensions LxWxH Energy storage...

Open the catalog to page 3

VOLTAGE STABILIZERS SAG COMPENSATORS LV TRANSFORMERS AND REACTORS Innovative solutions for sustainable power quality since 1969 POWER FACTOR CORRECTION SYSTEMS ACTIVE HARMONIC FILTERS ENERGY EFFICIENCY SMART DEVICES ENERGY SAVING VOLTAGE OPTIMIZERS Via dei Chiosi, 21 20873 Cavenago di Brianza MB | ITALY phone: +39 02 95 917 800 email: [email protected] WWW.ORTEANEXT.COM The present document is reserved property of ORTEA SpA: it is compulsory to inform head office and ask for authorisation before proceeding with any release or reproduction. ORTEA SpA will not be held liable or responsible in any...
