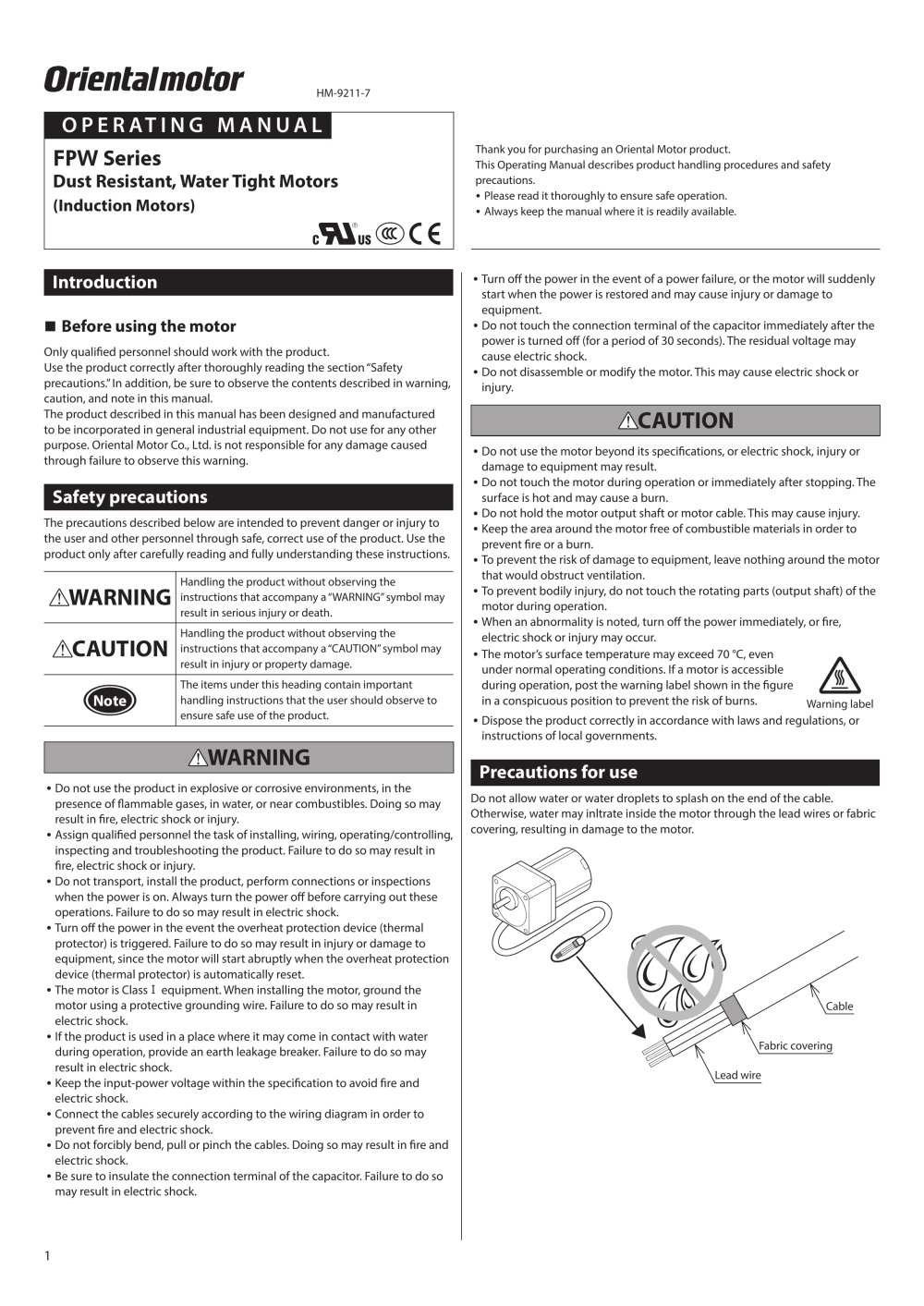

RoHS-Compliant Watertight, Dust-Resistant Motors FPW Series > 1 size="-3">

 Open the catalog to page 1

The FPW Series motors are watertight, dust-resistant geared induction motors which conform to the IEC standard IP67. They can be used where they are splashed with water. The FPW Series is recognized by UL/CSA standards and conforms to EN standards. CE marking is used in accordance with the low voltage directive. These motors are also certified under the China Compulsory Certification (CCC) System. > ✽ Not available for use under high pressure jets of water or immersion of water IP67: The letters "IP" stand for "Ingress Protection" and are followed by two numerical digits which indicate...

 Open the catalog to page 2

: Selectable according to necessity. Oriental Motor provides. ✽ A capacitor is included with single-phase motors. The capacitors for the motors are neither watertight nor dust-resistant. >

 Open the catalog to page 3

Series FPW : FPW Series Motor Frame Size 4 : 80 mm 5 : 90 mm 6 : 104 mm Output Power (W)(Example) 25 : 25 W Power Supply Voltage A : Single-Phase 100 VAC, 110/115 VAC C : Single-Phase 200 VAC, 220/230 VAC S : Three-Phase 200/220/230 VAC 2 : RoHS-Compliant Gear Ratio Included Capacitor J : For Single-Phase 100 VAC, 200 VAC > FPW425C2-15E U : For Single-Phase 110/115 VAC E : For Single-Phase 220/230 VAC > The J , U and E at the end of the model name indicate that the unit includes a capacitor. These letters are not listed on the motor nameplate. When the motor is approved under various...

 Open the catalog to page 4

Length: L (mm)Screw Size FPW425 Type80M5 P0.8 FPW540 Type90M6 P1.0 FPW560 Type90M6 P1.0 FPW690 Type100M8 P1.25 > 4 flat washers and 4 hexagonal nuts are provided with the screws.

 Open the catalog to page 9

This power relay box connects the motor cable and the extension cable. Use this relay box when extending the motor cable of FPW Series. > The relay box conforms to the protection level IP65 only when used with a watertight extension cable for an FPW Series motor.The screws for the cover on the sealed connector and relay box should be adjusted to the torque shown below.Sealed connector 1.0 1.5 N mCover of power relay box 0.54 0.66 N m > (Unit = mm) Mass: 150 g 8.571.51234Inside of the Terminal BoxM3.5 8 5042 4.3 817072 40.5716 136 max. Applicable cable diameter: 6.5 8.5 > Use this cable to...

 Open the catalog to page 11

This product is manufactured at a plant certified with the international standards ISO 9001 (for quality assurance) and ISO 14001 (for systems of environmental management). Specifications are subject to change without notice.This catalogue was published in July, 2006. www.orientalmotor.de www.oriental-motor.co.ukUnit 5, Faraday Office Park,Rankine Road, Basingstoke, Hampshire RG24 8AH U.K. Tel: 01256-347090 Fax: 01256-347099 www.orientalmotor.it European Headquarters and Dsseldorf Office Italy Headquarters Schiessstrae 7440549 D Via A. De Gasperi, 8520017 Mazzo di Rho (Ml), ItalyTel:...
