AC motors bh-series_new_gc

Catalog excerpts

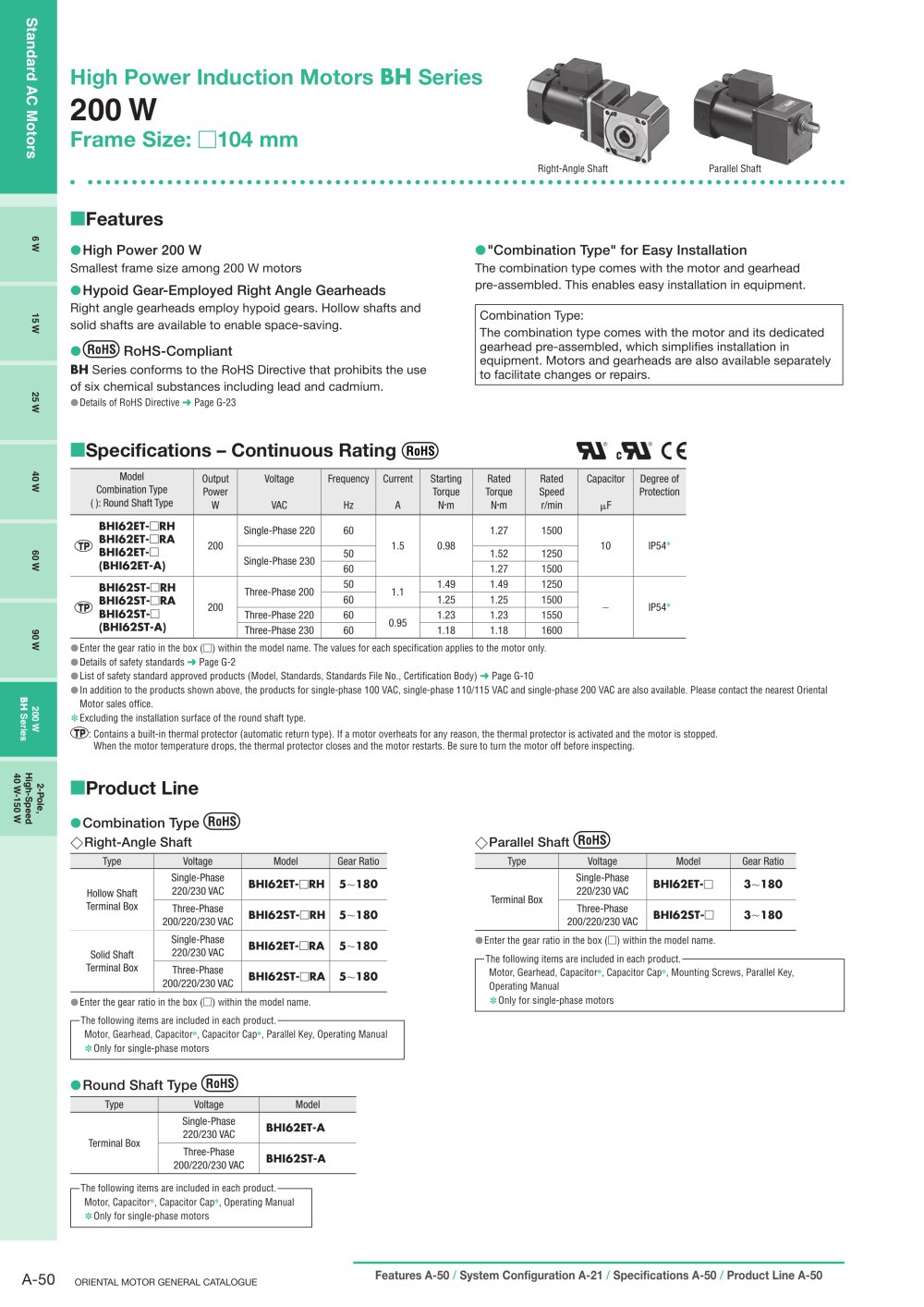

High Power Induction Motors BH Series Frame Size: Ⅺ104 mm Right-Angle Shaft Parallel Shaft b "Combination Type" for Easy Installation Smallest frame size among 200 W motors The combination type comes with the motor and gearhead pre-assembled. This enables easy installation in equipment. b Hypoid Gear-Employed Right Angle Gearheads 15 W Right angle gearheads employ hypoid gears. Hollow shafts and solid shafts are available to enable space-saving. Combination Type: The combination type comes with the motor and its dedicated gearhead pre-assembled, which simplifies installation in equipment. Motors and gearheads are also available separately to facilitate changes or repairs. BH Series conforms to the RoHS Directive that prohibits the use of six chemical substances including lead and cadmium. b Details of RoHS Directive ➜ Page G-23 ˾Specifications – Continuous Rating 40 W Model Combination Type ( ): Round Shaft Type Rated Speed r/min b Enter the gear ratio in the box (Ⅺ) within the model name. The values for each specification applies to the motor only. b Details of safety standards ➜ Page G-2 b List of safety standard approved products (Model, Standards, Standards File No., Certification Body) ➜ Page G-10 b In addition to the products shown above, the products for single-phase 100 VAC, single-phase 110/115 VAC and single-phase 200 VAC are also available. Please contact the nearest Oriental Motor sales office. ✽ Excluding the installation surface of the round shaft type. : Contains a built-in thermal protector (automatic return type). If a motor overheats for any reason, the thermal protector is activated and the motor is stopped. When the motor temperature drops, the thermal protector closes and the motor restarts. Be sure to turn the motor off before inspecting. ˾Product Line b Combination Type ȣ Right-Angle Shaft Type Hollow Shaft Terminal Box Solid Shaft Terminal Box Gear Ratio b Enter the gear ratio in the box (Ⅺ) within the model name. Gear Ratio b Enter the gear ratio in the box (Ⅺ) within the model name. The following items are included in each product. Motor, Gearhead, Capacitor✽, Capacitor Cap✽, Mounting Screws, Parallel Key, Operating Manual ✽ Only for single-phase motors The following items are included in each product. Motor, Gearhead, Capacitor✽, Capacitor Cap✽, Parallel Key, Operating Manual ✽ Only for single-phase motors b Round Shaft Type Type The following items are included in each product. Motor, Capacitor✽, Capacitor Cap✽, Operating Manual ✽ Only for single-phase motors ORIENTAL MOTOR GENERAL CATALOGUE Features A-50 / System Configuration A-21 / Specifications A-50 / Product Line A-50

 Open the catalog to page 1

Peripheral Equipment Speed Control Inverter ➜Page A-195 ˾Gearmotor – Torque Table for Combination Type Speed r/min Speed r/min Gear Ratio Speed r/min ˾Permissible Overhung Load and Permissible Thrust Load ˾Permissible Load Inertia of Gearhead: J Torque Motors Watertight, Dust-Resistant Motors Combination Type ➜ Page A-15 Round Shaft Type ➜ Page A-15 AC Speed Control Motors Right-Angle Gearheads b Right-Angle Shaft 60 Hz Model Electromagnetic Brake Motors Reversible Motors Speed r/min Induction Motors bEnter the gear ratio in the box (Ⅺ) within the model name. bA colored background ( )...

 Open the catalog to page 2

bMounting screws are included with the combination type, parallel shaft. Dimensions for mounting screws ➜ Page A-246 bEnter the gear ratio in the box (Ⅺ) within the model name. ȣ Combination Type: Right-Angle, Hollow Shaft (Terminal Box Type) Flange Mounting Surface A-A b Use cable with a diameter of ␾6 ȁ ␾12 mm. b Details of terminal box ➜ Page A-248 ORIENTAL MOTOR GENERAL CATALOGUE Features A-50 / System Configuration A-21 / Specifications A-50 / Product Line A-50

 Open the catalog to page 3

ȣ Combination Type: Right-Angle, Solid Shaft (Terminal Box Type) b At the time of shipment, a parallel key is inserted on the gearhead's shaft. Electromagnetic Brake Motors Reversible Motors Induction Motors Right-Angle Gearheads b Use cable with a diameter of ␾6 ȁ ␾12 mm. b Details of terminal box ➜ Page A-248 ȣ Combination Type: Parallel Shaft (Terminal Box Type) b Use cable with a diameter of ␾6 ȁ ␾12 mm. b Details of terminal box ➜ Page A-248 b At the time of shipment, a parallel key is inserted on the gearhead's shaft. Torque Motors Watertight, Dust-Resistant Motors AC Speed Control...

 Open the catalog to page 4

ȣ Round Shaft Type (Terminal Box Type) b Use cable with a diameter of ␾6 ȁ ␾12 mm. b Details of terminal box ➜ Page A-248 25 W ȣ Capacitor (Included with single-phase motors) b A capacitor cap is included with a capacitor. b Enter the gear ratio in the box (Ⅺ) within the model name. Capacitor Model ˾Mounting Method for Right Angle, Hollow Shaft Type b Inner Diameter of Hollow Shaft and Recommended Load Shaft Diameter b Stepped Load Shaft These figures below show how to mount loads depending on the shape of the shaft. The tolerance of the inner diameter for the hollow shaft is finished as...

 Open the catalog to page 5

˾Connection Diagrams bThe direction of motor rotation is as viewed from the shaft end of the motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction. b Round Shaft Type b Combination Type: Parallel Shaft Single-Phase Induction Motor Three-Phase Induction Motor Single-Phase Induction Motor Three-Phase Induction Motor Counterclockwise To change the rotation direction, change any two connections between R, S and T. b How to connect a capacitor ➜ page A-247 Motor ˾List of Motor and Gearhead Combinations b Connecting to the terminal Applicable lead...

 Open the catalog to page 6
