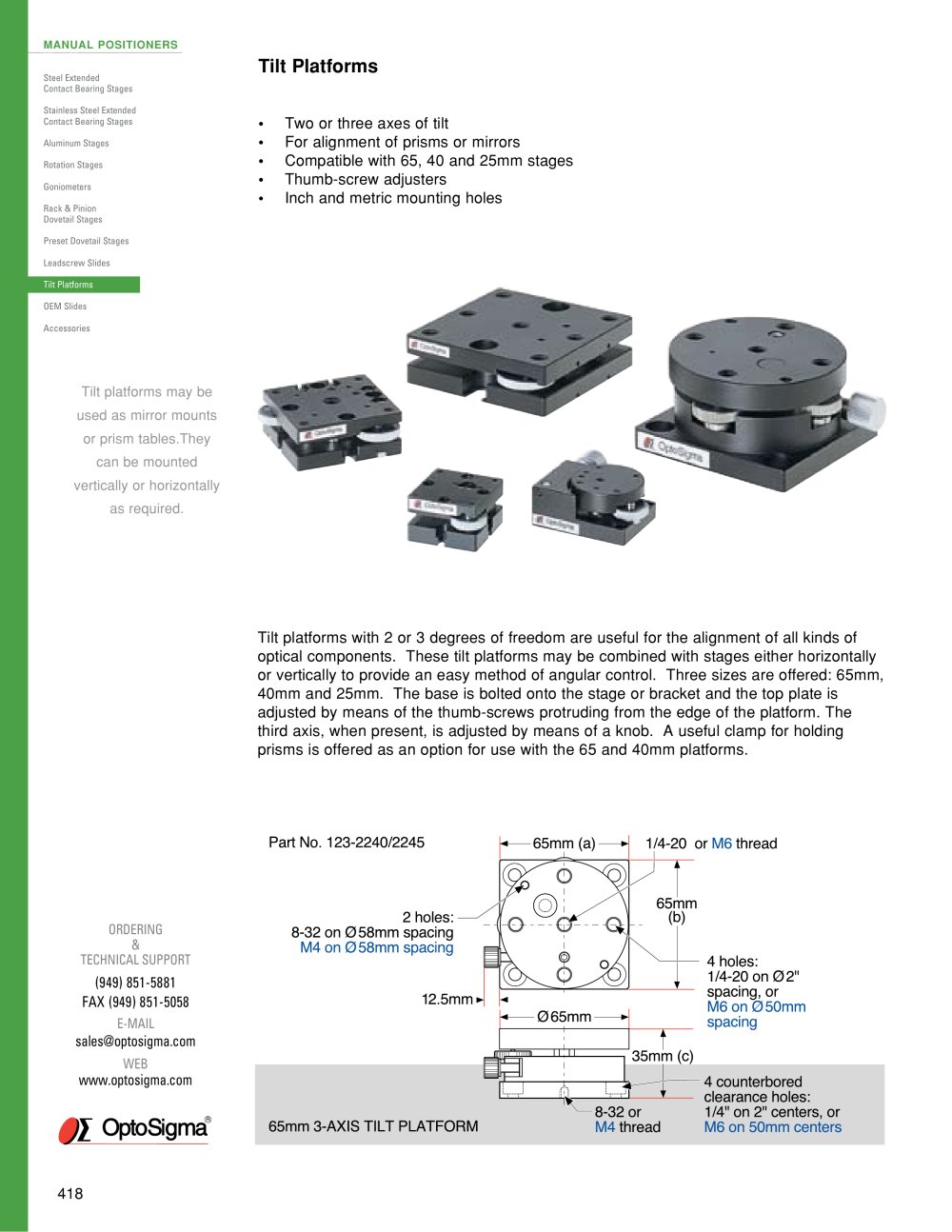

Tilt Platforms / Tilt Stage 2 Axis / 123-2200 - 1

MANUAL POSITIONERS Tilt Platforms Steel Extended Contact Bearing Stages Stainless Steel Extended Contact Bearing Stages Aluminum Stages Rotation Stages Goniometers Rack & Pinion Dovetail Stages Preset Dovetail Stages Leadscrew Slides Tilt Platforms OEM Slides Accessories Two or three axes of tilt For alignment of prisms or mirrors Compatible with 65, 40 and 25mm stages Thumb-screw adjusters Inch and metric mounting holes Tilt platforms may be used as mirror mounts or prism tables.They can be mounted vertically or horizontally as required. Tilt platforms with 2 or 3 degrees of freedom are useful for the alignment of all kinds of optical components. These tilt platforms may be combined with stages either horizontally or vertically to provide an easy method of angular control. Three sizes are offered: 65mm, 40mm and 25mm. The base is bolted onto the stage or bracket and the top plate is adjusted by means of the thumb-screws protruding from the edge of the platform. The third axis, when present, is adjusted by means of a knob. A useful clamp for holding prisms is offered as an option for use with the 65 and 40mm platforms. Part No. 123-2240/2245 1/4-20 orM6thread ORDERING & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 E-MAIL sales@optosigma.com www.optosigma.com Jl OptoSigma8 2 holes: 8-32 on 058mm spacing M4 on 058mm spacing i © J X,^ 65mm (b) 4 holes: 1/4-20 on 02" spacing, or M6 on 050mm spacing 12.5mm « 4 counterbored clearance holes: 1/4" on 2" centers, or M6 on 50mm centers 65mm 3-AXIS TILT PLATFORM 8-32 or M4 thread 418

Open the catalog to page 1

Tilt Platforms / Tilt Stage 2 Axis / 123-2200 - 2

MANUAL POSITIONERS Part No. 123-2230/2235 3 holes: M2 on 20mm centers (metric only) 1/4-20 or M6 thread Steel Extended Contact Bearing Stages Steel Extended Contact Bearing Stages Aluminum Stages Rotation Stages Goniometers Rack & Pinion Dovetail Stages Preset Dovetail Stages Leadscrew Slides Tilt Platforms OEM Slides Accessories 2 holes: M2.6 on 034mm spacing 3 holes: 6-32 on 01.25" spacing M3 on 032mm spacing H h 12mm ^0 40mmn 3 counterbored clearance holes: 6-32 on 1.25" centers M3 on 32mm centers 40mm 3-AXIS TILT PLATFORM 25mm (c) _t_ Part No. 155-1440 3 counterbored clearance holes: M2...

Open the catalog to page 2

Tilt Platforms / Tilt Stage 2 Axis / 123-2200 - 3

MANUAL POSITIONERS Part No. 123-2210/2215 40mm (a) 1/4-20 or M6 SteelExtended Contact Bearing Stages Stainless Steel Extended Contact Bearing Stages Aluminum Stages Rotation Stages Goniometers Rack & Pinion Dovetail Stages Preset Dovetail Stages Leadscrew Slides Tilt Platforms OEM Slides Accessories 6 holes: 6-32 on .625 x 1.25" spacing M3 on 16 x 32mm spacing 40mm =1 4mm 4mm *\ 2 counterbored clearance slots: 6-32 on 1.25" centers M3 on 32mm centers irliii iiiiiiiNJj^- liiiiinj iii » »Hi jﯮ 1fimm (o) 40mm 2-AXIS TILT PLATFORM 8-32 or M4 Part No. 123-2220 25mm (b) 20mm i)*?' ffl 25mm (a) 6...
