Steel Extended Contact Bearing Goniometer Stages / Goniometer / 126-2010

Product catalog summary

Overview: The document provides detailed information on manual positioners, specifically focusing on various types of stages such as mirror mounts, steel extended contact bearing stages, and goniometers. It highlights the superior performance and unique features of these stages compared to similar products.

Specifications: The stages are available in different configurations, including worm drive actuators, motorized, and vacuum-compatible versions. The steel extended contact bearing goniometer stages are noted for their improved manufacturing process, which enhances simplicity, size, and strength. Key specifications include centering accuracy, locking mechanism stability, and precision centering pins for alignment.

Product Details: The document lists various models with specific dimensions, travel range, load capacity, resolution, and finish. Prices are provided for each model, with options for both inch and metric measurements. The stages are made from 440C stainless steel, with tolerances specified for dimensions and rotation height.

Additional Information: Notes indicate that load capacity may be reduced for off-center loads, and the resolution is defined as the angular displacement corresponding to a 10-micron displacement of the micrometer. For further details, including drawings, the document directs readers to the company's website.

Catalog excerpts

Steel Extended Contact Bearing Goniometer Stages / Goniometer / 126-2010-1

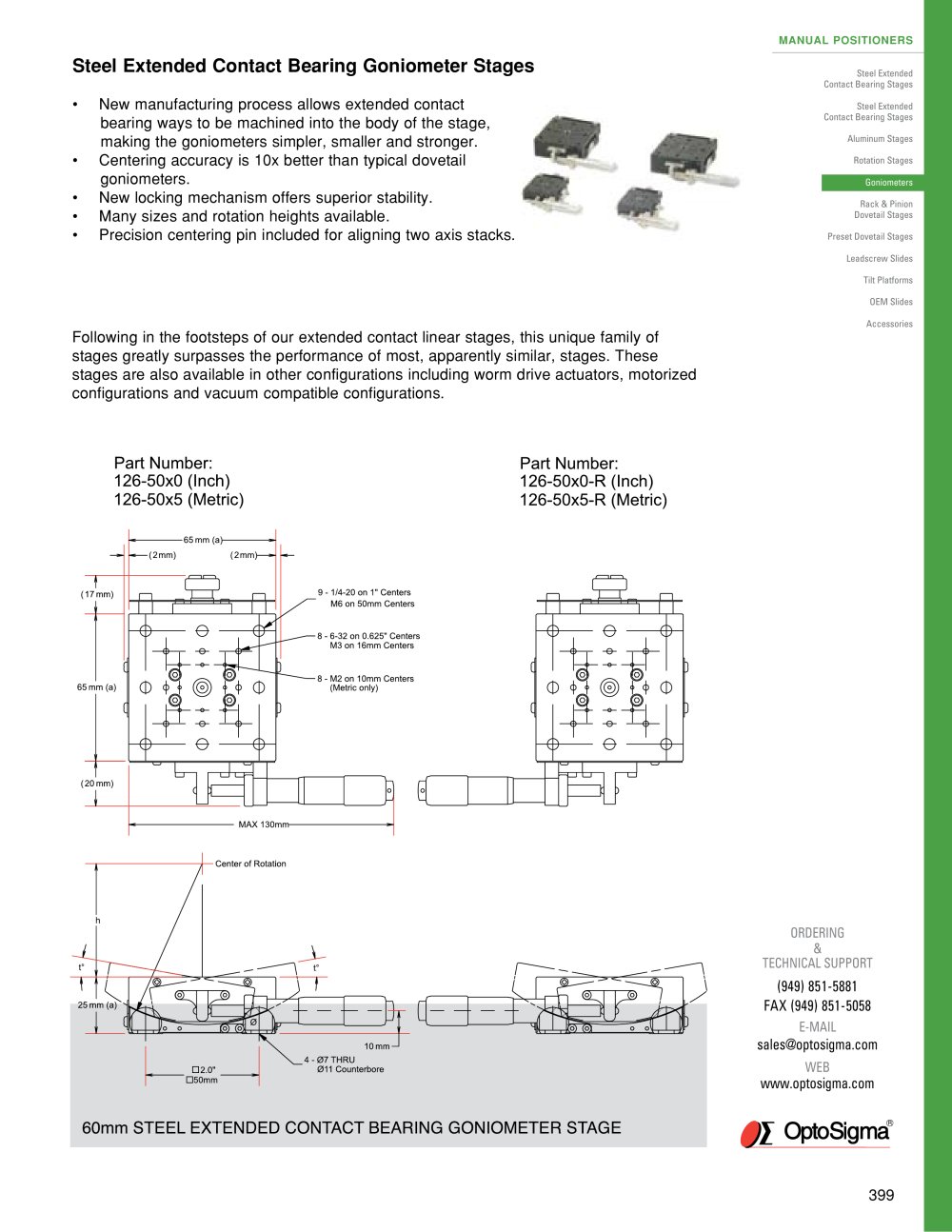

MANUAL POSITIONERS Steel Extended Contact Bearing Goniometer Stages Steel Extended Contact Bearing Stages Steel Extended Contact Bearing Stages Aluminum Stages Rotation Stages Rack & Pinion Dovetail Stages Preset Dovetail Stages Leadscrew Slides Tilt Platforms OEM Slides Accessories New manufacturing process allows extended contact bearing ways to be machined into the body of the stage, making the goniometers simpler, smaller and stronger. Centering accuracy is 10x betterthan typical dovetail goniometers. New locking mechanism offers superior stability. Many sizes and rotation heights available. Prcision centering pin included for aligning two axis stacks. Following in the footsteps of our extended contact linear stages, this unique family of stages greatly surpasses the performance of most, apparently similar, stages. These stages are also available in other configurations including worm drive actuators, motorized configurations and vacuum compatible configurations. Part Number: 126-50x0 (Inch) 126-50x5 (Metric) Part Number: 126-50xO-R(lnch) 126-50x5-R (Metric) _4-07THRU 011 Counterbore ORDERING & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 [email protected] www.optosigma.com 60mm STEEL EXTENDED CONTACT BEARING GONIOMETER STAGE OptoSigma® 399

Open the catalog to page 1

Steel Extended Contact Bearing Goniometer Stages / Goniometer / 126-2010-2

MANUAL POSITIONERS SteelExtended Contact Bearing Stages Stainless Steel Extended Contact Bearing Stages Aluminum Stages Rotation Stages Rack & Pinion Dovetail Stages Preset Dovetail Stages Leadscrew Slides Tilt Platforms OEM Slides Accessories Part No. 126-20x0 (Inch) 126-20x5 (Metric) Part No. 126-20x0-R (Inch) 126-20x5-R (Metric) (17mm) (7mm) 8- 6-32 on 0.625 Centers M3 on 16mm Centers 8- M2 on 10mm Centers (Metric ONLY) n 40 mm (a) LT □_ _D (20 mm) a _i G 4-03.5THRU 06 Counterbore 40mm STEEL EXTENDED CONTACT BEARING GONIOMETER STAGE Spcifications & Tolrances Dimensions: ±0.2mm Material: 440C...

Open the catalog to page 2
