Sigma Fine Piezo Stages / Piezo Rotation / 510-0015

Sigma Fine Piezo Stages / Piezo Rotation / 510-0015

Product catalog summary

Overview: The document provides detailed specifications and ordering information for various motor stages, piezo stages, and related accessories offered by OptoSigma. It includes descriptions of different models, their dimensions, capabilities, and pricing.

Specifications: The document outlines the specifications for different stages, including:

Compact, modular design with options for X, XY, XYZ, 2-axis tilt, and rotation.
Unique F/D digital closed-loop sensor for precise control.
Active error compensation for linear trajectory control.
Improved resolution, stiffness, accuracy, linearity, load capacity, and speed.
Compatibility with FINE series controllers.

Product Models: The document lists several models with specific dimensions and features:

SFS H40X(CL) 40mm Closed Loop Single Axis (X) Stage
SFS H40Z(CL) 40mm Closed Loop Single Axis (Z) Stage
SFS H60X(CL) 60mm Closed Loop Single Axis (X) Stage
SFS H60XY(CL) 60mm Closed Loop Two Axis (XY) Stage
SFS 60YAW(OP) 60mm Open Loop Single Axis (Θz) Rotation Stage
SFS 60RP(OP) 60mm Open Loop Two Axis (Θx, Θy) Tilt Stage

Key Specifications: The document provides detailed specifications for each model, including:

Dimensions and tolerances
Resolution and sensor resolution
Linearity and straightness
Positional repeatability
Load capacity and weight

Pricing: The document includes pricing information for each model, with prices ranging from $2,395 to $5,825 depending on the model and specifications.

Notes: The document notes that actual travel values can vary by ±15% of the nominal value and that open-loop resolution is a theoretical value based on the minimum voltage change possible with specific controllers.

Catalog excerpts

Sigma Fine Piezo Stages / Piezo Rotation / 510-0015-1

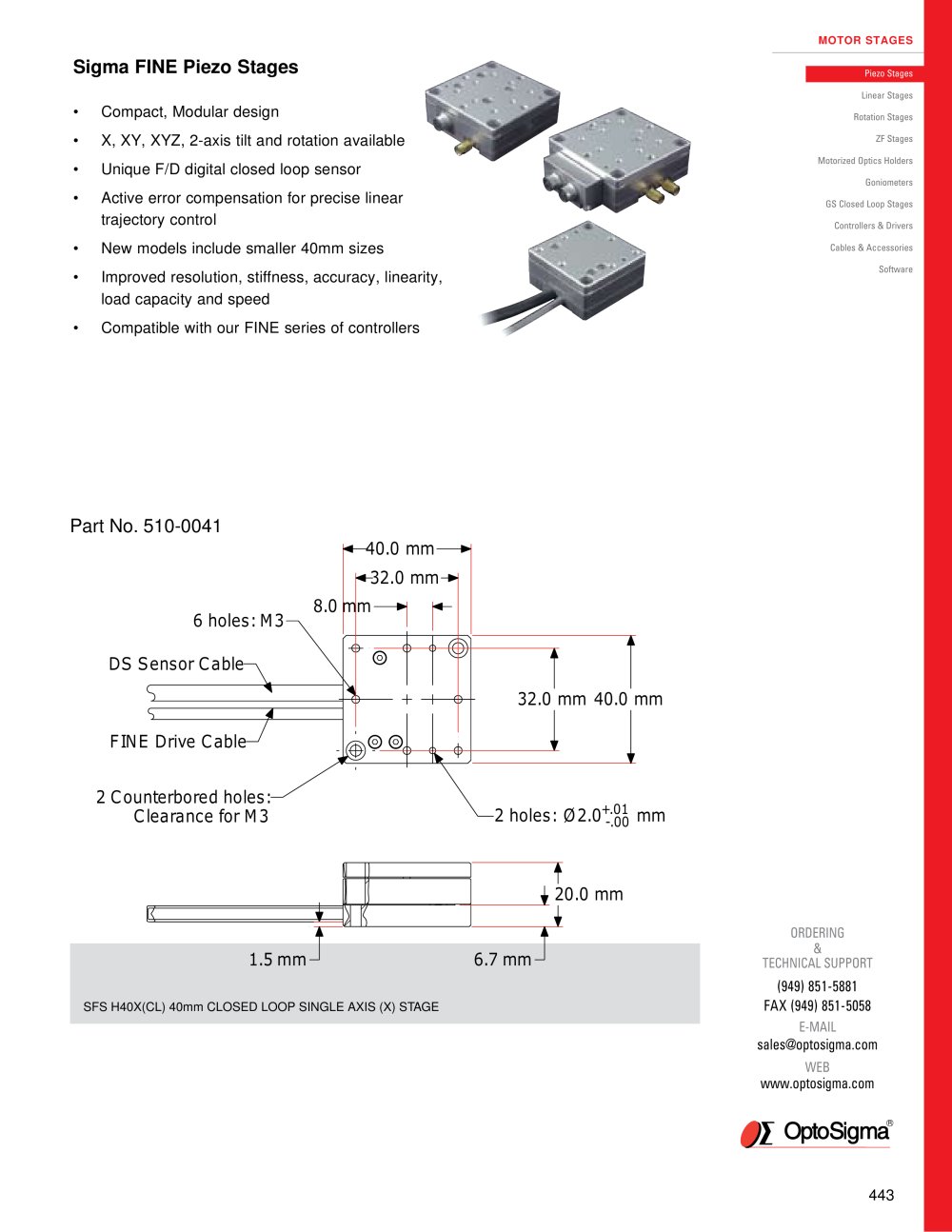

MOTOR STAGES Sigma FINE Piezo Stages Compact, Modular design Օ X, XY, XYZ, 2-axis tilt and rotation available Unique F/D digital closed loop sensor Active error compensation for precise linear trajectory control Օ New models include smaller 40mm sizes Improved resolution, stiffness, accuracy, linearity, load capacity and speed Օ Compatible with our FINE series of controllers Linear Stages Rotation Stages ZF Stages Motorized Optics Holders Goniometers GS Closed Loop Stages Controllers & Drivers Cables & Accessories Software Part No. 510-0041 -40.0 mm 6 holes: M3 DS Sensor Cable 1 32.0 mm 40.0 mm FINE Drive Cable 2 Counterbored holes: Clearance for M3 2 holes: 02.0+;00 mm T 20.0 mm ORDERING & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 [email protected] www.optosigma.com Jl OptoSigmsf 443

Open the catalog to page 1

Sigma Fine Piezo Stages / Piezo Rotation / 510-0015-2

MOTOR STAGES Part No. 510-0044 -40.0mm- -«-32.0 mm-8.0 mm- Linear Stages Rotation Stages ZF Stages Motorized Optics Holders Goniometers GS Closed Loop Stages Controllers & Drivers Cables & Accessories Software FINE Drive Cable 32.0 mm 40.0 mm DS Sensor Cable - 2 Counterbored holes: clearance for M3 2 holes: 02.0 +_;°0 mm 6 holes: M3 1.5 mm- SFS H40Z(CL) 40mm CLOSED LOOP SINGLE AXIS (Z) STAGE Part No. 510-0061 -60.0mm 4 Counterbored holes: clearance for M4 60.0 mm 4 holes: M4 8 holes: M3 & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 E-MAIL [email protected] www.optosigma.com 16.0 mm...

Open the catalog to page 2

Sigma Fine Piezo Stages / Piezo Rotation / 510-0015-3

MOTOR STAGES Part No. 510-0062 -60.0 mm Linear Stages Rotation Stages ZF Stages Motorized Optics Holders Goniometers GS Closed Loop Stages Controllers & Drivers Cables & Accessories Software 2 holes: 02.O+.;°O1omm 60.0 mm -DS Sensor Cable Connectors FINE Drive Cable Connectors 4 holes: M4 8 holes: M3 4 Counterbored holes: clearance for M4 Part No. 510-0063 -60.0 mm 2 holes: 02.0 +_:oo mm 60.0 mm - DS Sensor Cable Connectors FINE Drive Cable Connectors 4 holes: M4 8 holes: M3 4 Counterbored holes: clearance for M4 ORDERING & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 [email protected]...

Open the catalog to page 3

Sigma Fine Piezo Stages / Piezo Rotation / 510-0015-4

MOTOR STAGES Part No. 510-0064 Linear Stages Rotation Stages ZF Stages Motorized Optics Holders Goniometers GS Closed Loop Stages Controllers & Drivers Cables & Accessories Software 4 Counterbored holes: clearance for M4 50.0 mm 32.0 mm 4 holes: M4 8 holes: M3 2 holes: 02.0 + OOmm FINE Drive Cable Connector DS Sensor Cable Connector X 28.0 mm Part No. 510-0015 FINE Drive Cable Connector -60.0mm--50.0mm- 60.0 mm & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 E-MAIL [email protected] www.optosigma.com Jl OptoSigma8 4 holes: M4 8 holes: M3 4 Counterbored holes: clearance for M4 7 j9.0 mm...

Open the catalog to page 4

Sigma Fine Piezo Stages / Piezo Rotation / 510-0015-5

MOTOR STAGES Part No. 510-0016 50.0 mm- 4 Counterbored holes: clearance for M4 Linear Stages Rotation Stages ZF Stages Motorized Optics Holders Goniometers GS Closed Loop Stages Controllers & Drivers Cables & Accessories Software 50.0 mm 32.0 mm 4 holes: M4 4 holes: M3 -COARSE Adjustment - Approximate center of Rotation 1 25 mm Spcifications & Tolrances Dimensions: ±0.2mm Sensor Resolution: 10nm Straightness (Y and Z direction): 1um Piezo Linear Stages Resolution2: 1nm Linearity: <0.3% Positional Repeatability: X, XY, Z: <0.1um XYZ: <0.15um Travel 1 (mm) table Size (mm) Load Capacity (kg) Positional...

Open the catalog to page 5
