For ordering and technical support, contact via phone at (949) 851-5881, fax at (949) 851-5058, or email at [email protected]. More information can be found on their website at www.optosigma.com.
The document provides details on various opto-mechanical components including mirror mounts, optic holders, optical baseplates, optical rails and carriers, bases, rod mounting systems, post and post holders, clamps, and precision beam steering assemblies.
- Mirror Mounts: Available in different sizes and configurations.
- Optic Holders: Designed to hold optics securely.
- Optical Baseplates: Provide a stable platform for mounting optical components.
- Optical Rails and Carriers: Facilitate the alignment and positioning of optical elements.
- Precision Beam Steering Assembly: Includes beam steering mounts suitable for 20mm posts.
- Optic Size 30mm, Thickness 5mm, Height 177.8mm, Price: $995.00, Part Number: 148-3515
- Optic Size 30mm, Thickness 5mm, Height 355.6mm, Price: $1,050.00, Part Number: 148-3525
- Optic Size 25x25mm or Ø25mm, Thickness 5mm, Price: $445.00, Part Number: 112-5627
Catalog excerpts

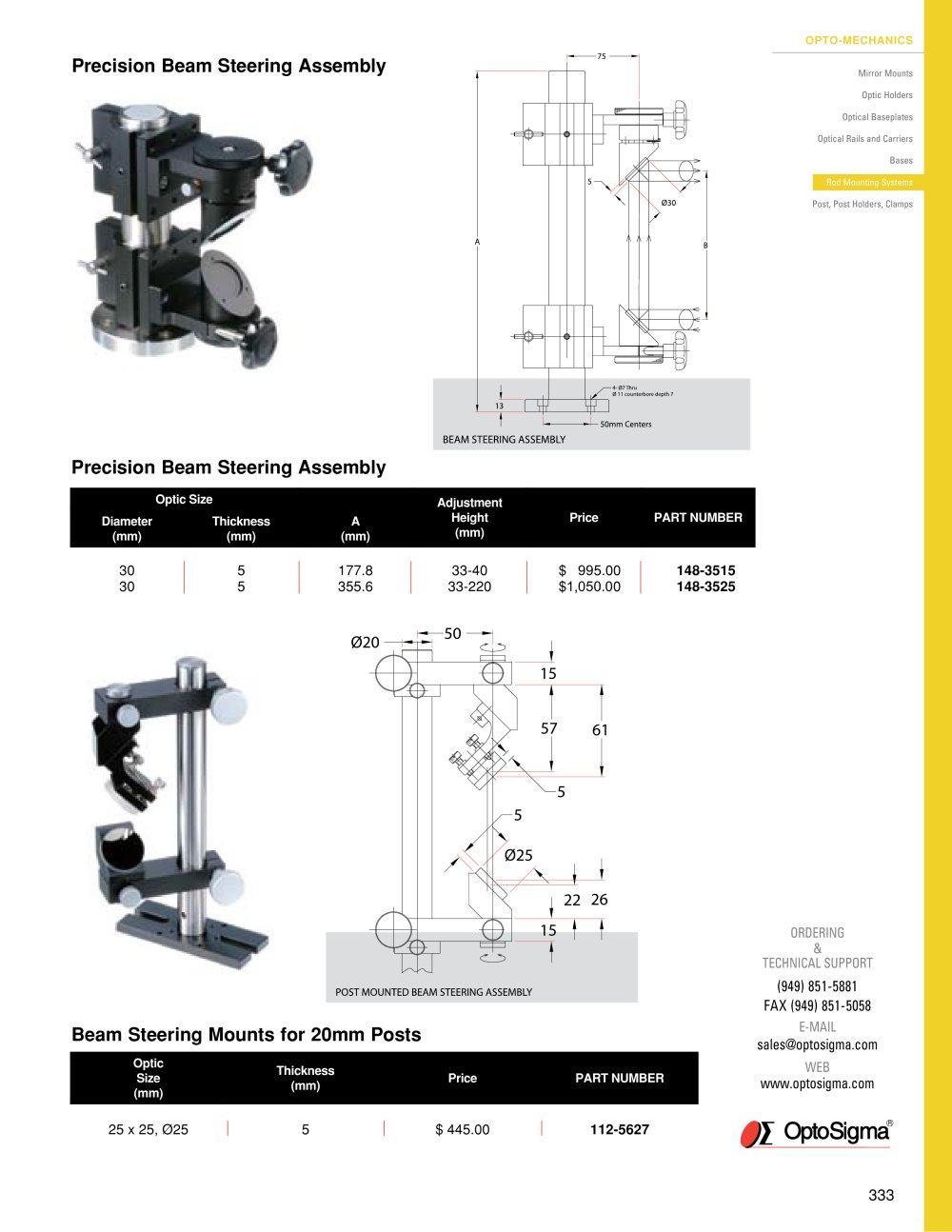

OPTO-MECHANICS Prcision Beam Steering Assembly Mirror Mounts Optic Holders Optical Baseplates Optical Rails and Carriers Bases Rod Mounting Systems Post, Post Holders, Clamps BEAM STEERING ASSEMBLY Prcision Beam Steering Assembly Optic Size Adjustment Diameter Thickness A Height Price PART NUMBER (mm) (mm) (mm) (mm) 30 5 177.8 33-40 $ 995.00 148-3515 30 5 355.6 33-220 $1,050.00 148-3525 020 50 A 15 57 61 025 22 26 ORDERING & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 [email protected] www.optosigma.com Jl OptoSigmsf POST MOUNTED BEAM STEERING ASSEMBLY Beam Steering Mounts for 20mm Posts Optic Size (mm) Thickness (mm) Price PART NUMBER 25 x 25, 025 5 $ 445.00 112-5627 333
