Optosigma Corporation
Kinematic Bases / Kinematic Base / 147-0550

Kinematic Bases / Kinematic Base / 147-0550

Product catalog summary

Ordering & Technical Support: For ordering and technical support, contact via phone at (949) 851-5881, fax at (949) 851-5058, or email at [email protected]. More information is available on their website www.optosigma.com.

Product Overview: The document provides details on various opto-mechanical components including mirror mounts, optic holders, optical baseplates, optical rails and carriers, bases, rod mounting systems, and post, post holders, and clamps.

Specifications & Tolerances: The components are made from aluminum with dimensions tolerance of ±0.2mm and positional replacement tolerance of ±0.1mm. The finish is black anodized.

Kinematic Bases: These bases use a precise mounting method involving three balls that locate against a flat, a cone, and a vee groove. This ensures accurate positional replacement. The lower plate can be attached to a standard breadboard hole pattern, and the top plate can accept stages or other mounts. Multiple top plates allow for precise sample exchange. A thumbwheel on the bottom plate secures the top plate.

Features: The kinematic bases attach to standard breadboards and baseplates, feature a large thumbwheel for easy locking and unlocking, and allow for accurate removal and replacement of components. They are available in inch and metric hole patterns and include a steel locking screw for durability.

Product Options and Pricing: The base with both plates (65 x 65 mm) is priced at $105.00, and the top plate only (65 x 65 mm) is priced at $40.00. Part numbers are provided for both metric and inch versions.

Catalog excerpts

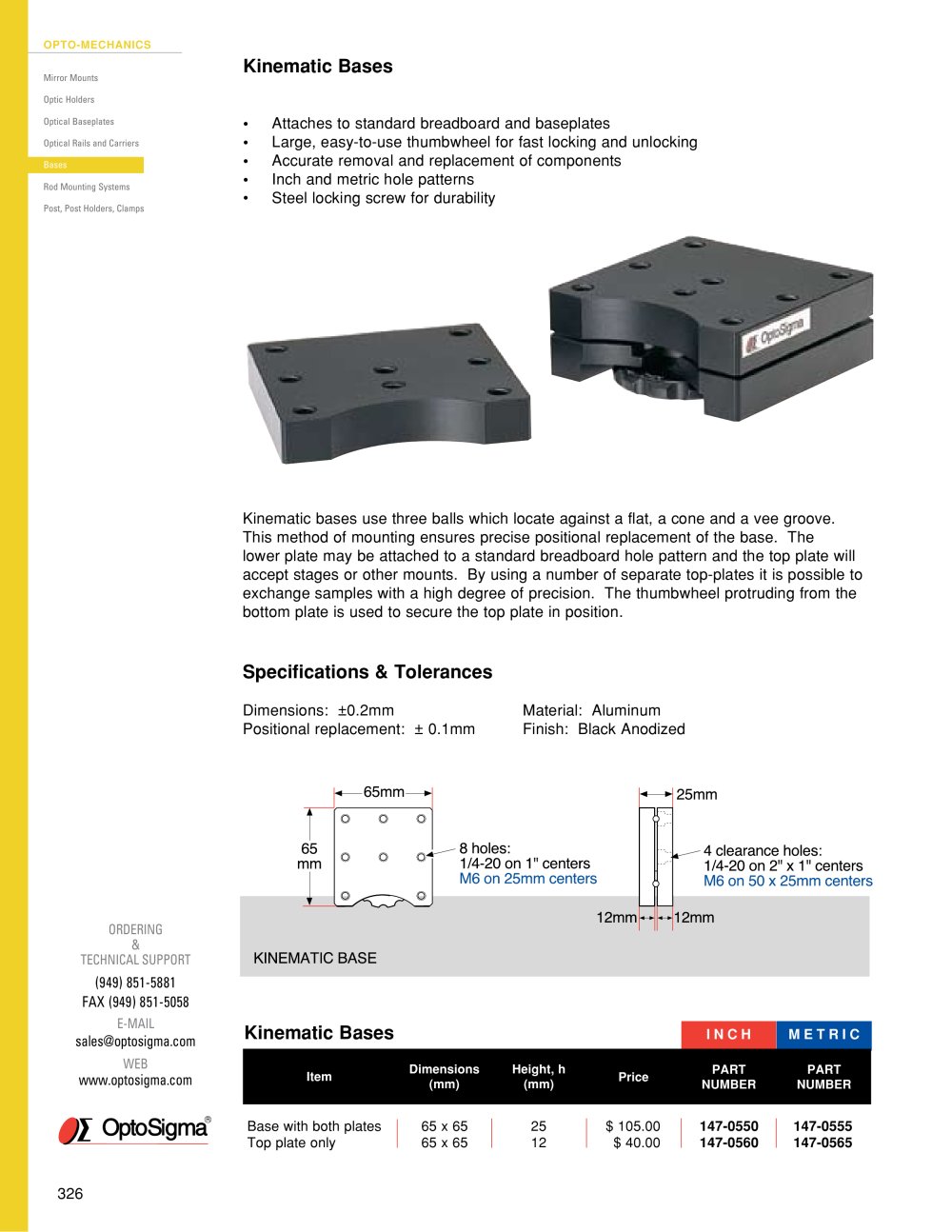

Kinematic Bases / Kinematic Base / 147-0550-1

OPTO-MECHA Kinematic Bases Mirror Mounts Optic Holders optai BasMates . Attaches to standard breadboard and baseplates opticai Raiis and Carriers Large, easy-to-use thumbwheel for fast locking and unlocking iCC^^^^B Օ Accurate removal and replacement of components Rod Mounting Systems ' Inch and metric hole patterns Steel locking screw for durability Post, Post Holders, Clamps Kinematic bases use three balls which locate against a flat, a cone and a vee groove. This method of mounting ensures precise positional replacement of the base. The lower plate may be attached to a standard breadboard hole pattern and the top plate will accept stages or other mounts. By using a number of separate top-plates it is possible to exchange samples with a high degree of precision. The thumbwheel protruding from the bottom plate is used to secure the top plate in position. Spթcifications & Tolrances Dimensions: ±0.2mm Positional replacement: ± 0.1mm Material: Aluminum Finish: Black Anodized -65mm闗► 65 o o o 8 holes: mm G O O 1/4-20 on 1"centers I M6 on 25mm centers ce 25mm 4 clearance holes: 1/4-20 on 2" x1"centers M6 on 50 x 25mm centers 12mm 12mm ORDERING & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 E-MAIL [email protected] www.optosigma.com Jl OptoSigma8 KINEMATIC BASE Kinematic Bases^ inchmetric Item Dimensions (mm) Height, h (mm) Price PART NUMBER PART NUMBER Base with both plates Top plate only 65 x 65 65 x 65 25 12 $ 105.00 $ 40.00 147-0550 147-0560 147-0555 147-0565 326

Open the catalog to page 1
