Hollow Retro-Reflectors / Hollow Retro-reflector / 055-2510

Product catalog summary

Contact Information:
For ordering and technical support, contact via phone at (949) 851-5881, fax at (949) 851-5058, or email at [email protected]. More information is available on their website www.optosigma.com.

Product Overview:
The document provides details on various optical components including spherical lenses, cylindrical lenses, lens kits, achromatic doublets, multi-element optics, micro optics, mirrors, prisms, substrates & windows, beamsplitters, polarizers, filters, and apertures.

Specifications & Tolerances:
- Dimensions: ±0.2mm
- Clear aperture: 80% of Inner Diameter
- Surface quality: 60-40
- Material: BK7 grade A
- Coatings: Aluminum with protective overcoat

Hollow Retro-reflectors:
These consist of three flat mirrors assembled to reflect the input beam by 180 degrees. Unlike solid corner cubes, the optical path is in air, allowing use as a broadband reflector. The design minimizes polarization and chromatic aberration effects. Precision assembly ensures accurate beam deviation. Each retro-reflector is mounted in black anodized aluminum and is angle insensitive, making them suitable for alignment and metrology. They are coated with protective aluminum for use in the visible spectral region.

Product Specifications:

Housing Diameter (mm)	Inner Diameter (mm)	Length (mm)	Beam Deviation (arcsec)	Wavefront Distortion	Price	Part Number
13.0	10.0	18.0	≤10	1λ	$945.00	055-2510055
13.0	10.0	18.0	≤30	2λ	$630.00	055-2515055
25.0	20.0	25.0	≤5	1λ	$735.00	055-2520055
25.0	20.0	25.0	≤30	2λ	$525.00	055-2525055
35.0	30.0	35.0	≤5	1λ	$630.00	055-2540055
35.0	30.0	35.0	≤30	2λ	$525.00	055-2545055

Catalog excerpts

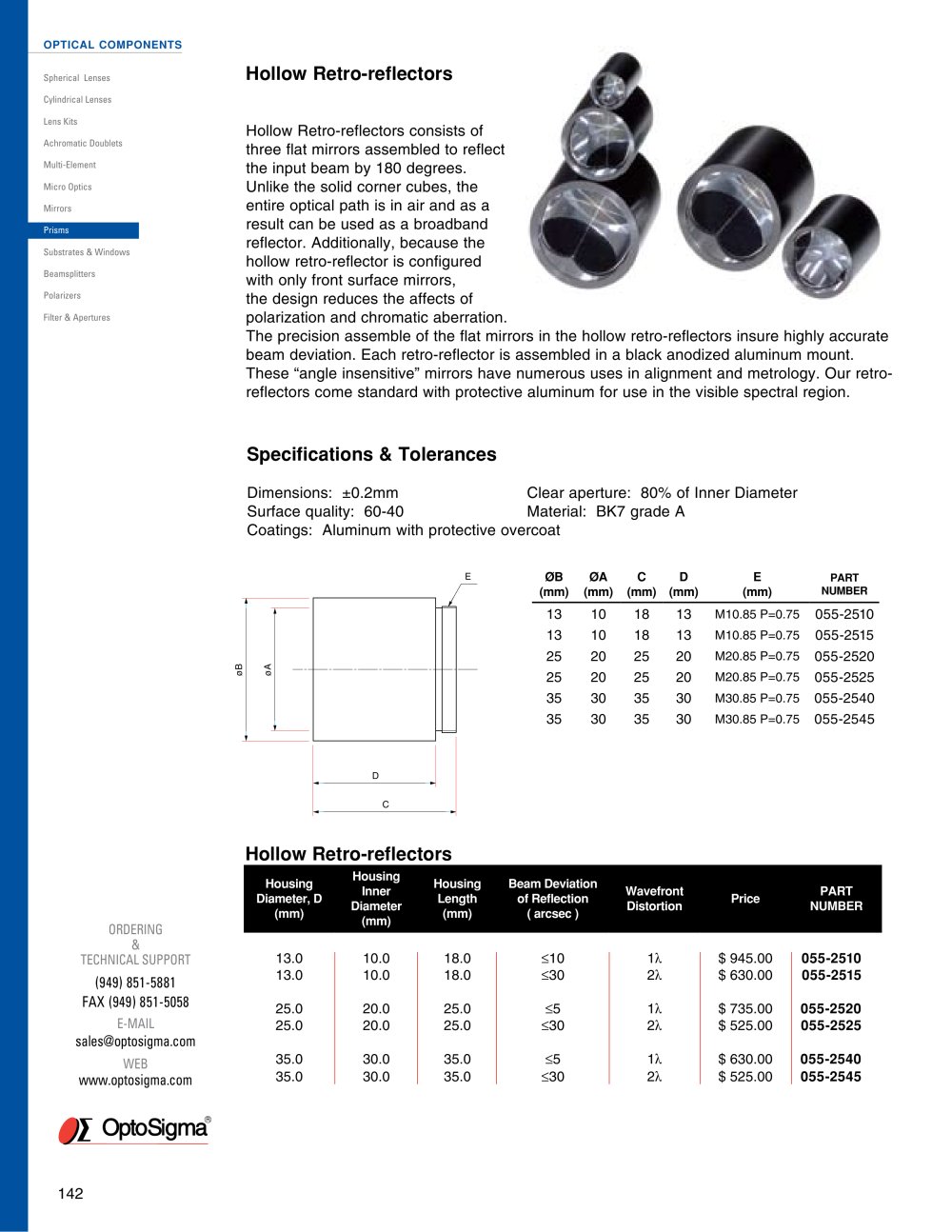

Hollow Retro-Reflectors / Hollow Retro-reflector / 055-2510-1

OPTICAL COMPONENTS Spherical Lenses Cylindrical Lenses Lens Kits Achromatic Doublets Multi-Element Micro Optics Hollow Retro-reflectors Hollow Retro-reflectors consists of three flat mirrors assembled to reflect the input beam by 180 degrees. Unlike the solid corner cubes, the entire optical path is in air and as a result can be used as a broadband reflector. Additionally, because the hollow retro-reflector is configured with only front surface mirrors, the design reduces the affects of polarization and chromatic aberration. The precision assemble of the flat mirrors in the hollow retro-reflectors insure highly accurate beam deviation. Each retro-reflector is assembled in a black anodized aluminum mount. These "angle insensitive" mirrors have numerous uses in alignment and metrology. Our retro-reflectors come standard with protective aluminum for use in the visible spectral region. Prisms Substrates & Windows Beamsplitters Polarizers Filter & Apertures Specifications & Tolerances Dimensions: ±0.2mm Clear aperture: 80% of Inner Diameter Surface quality: 60-40 Material: BK7 grade A Coatings: Aluminum with protective overcoat E 0B 0A C D E PART (mm) (mm) (mm) (mm) (mm) NUMBER 13 10 18 13 M10.85 P=0.75 055-2510 13 10 18 13 M10.85 P=0.75 055-2515 25 20 25 20 M20.85 P=0.75 055-2520 25 20 25 20 M20.85 P=0.75 055-2525 35 30 35 30 M30.85 P=0.75 055-2540 35 30 35 30 M30.85 P=0.75 055-2545 C < Hollow Retro-reflectors Housing Housing Inner Diameter (mm) Housing Beam Deviation Wavefront Distortion PART NUMBER Diameter, D Length of Reflection Price (mm) (mm) ( arcsec ) & TECHNICAL SUPPORT 13.0 10.0 18.0 <10 U $ 945.00 055-2510 (949) 851-5881 13.0 10.0 18.0 <30 21 $ 630.00 055-2515 FAX (949) 851-5058 25.0 20.0 25.0 <5 U $ 735.00 055-2520 E-MAIL 25.0 20.0 25.0 <30 21 $ 525.00 055-2525 [email protected] 35.0 30.0 35.0 <5 U $ 630.00 055-2540 www.optosigma.com 35.0 30.0 35.0 <30 21 $ 525.00 055-2545 §1 OptoSigma8 142
