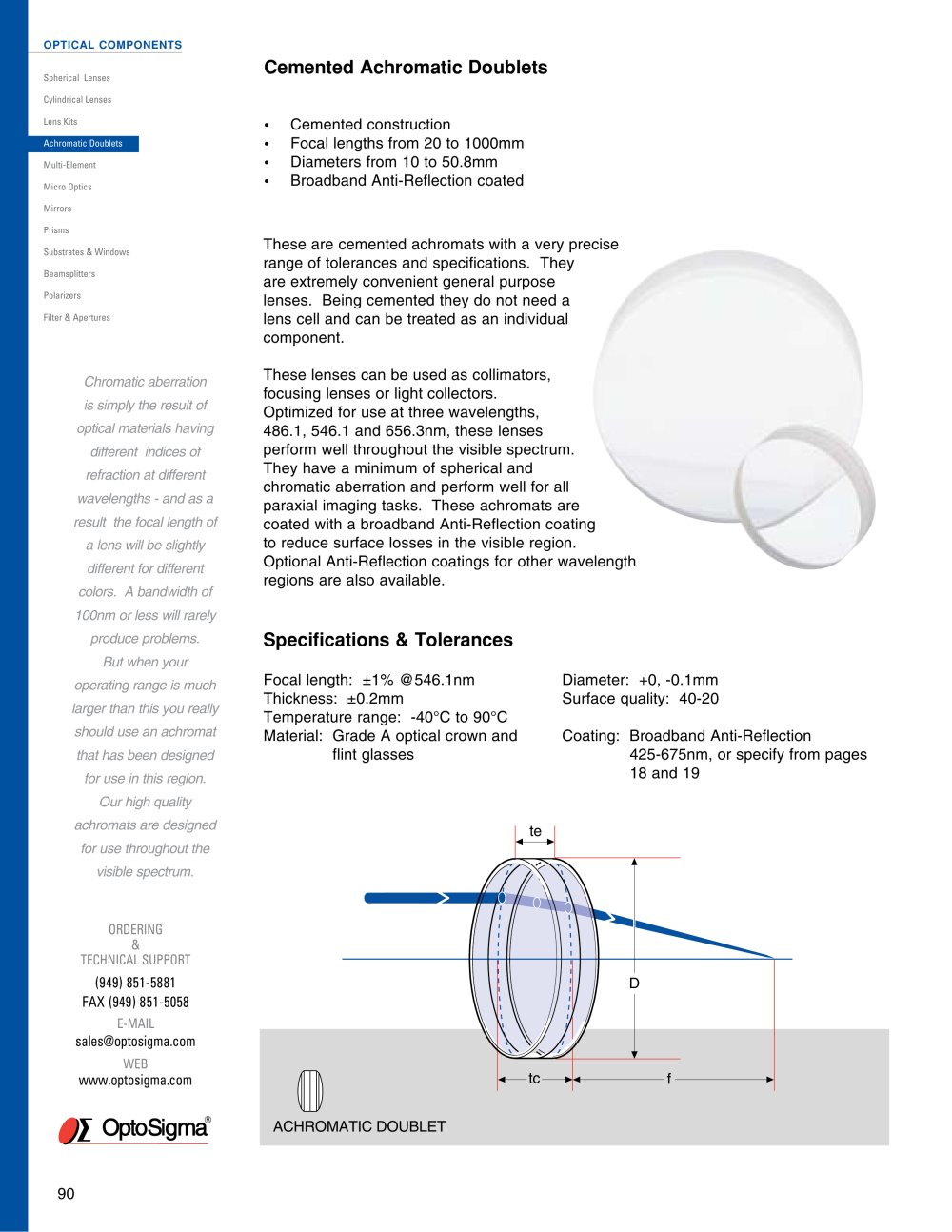

Cemented Achromatic Doublets / Achromatic Doublet / 026-0160
Product catalog summary
Overview: The document provides detailed information on optical components, specifically focusing on achromatic doublets. These are lenses designed to minimize chromatic aberration and are used in various optical applications.
Specifications & Tolerances: The achromatic doublets are cemented lenses with focal lengths ranging from 20 to 1000mm and diameters from 10 to 50.8mm. They are broadband anti-reflection coated, optimized for wavelengths of 486.1, 546.1, and 656.3nm, and perform well across the visible spectrum. The lenses have a surface quality of 40-20 and can operate in temperatures from -40°C to 90°C.
Applications: These lenses are suitable for use as collimators, focusing lenses, or light collectors. They are designed to reduce spherical and chromatic aberration, making them ideal for paraxial imaging tasks.
Product Range: The document lists various achromatic doublets with different specifications, including diameter (D), focal length (f), center thickness (tc), edge thickness (te), radii (r1, r2), and prices. The table provides detailed measurements and part numbers for ordering.
Ordering Information: For technical support and ordering, contact details are provided, including phone, fax, email, and website information.
