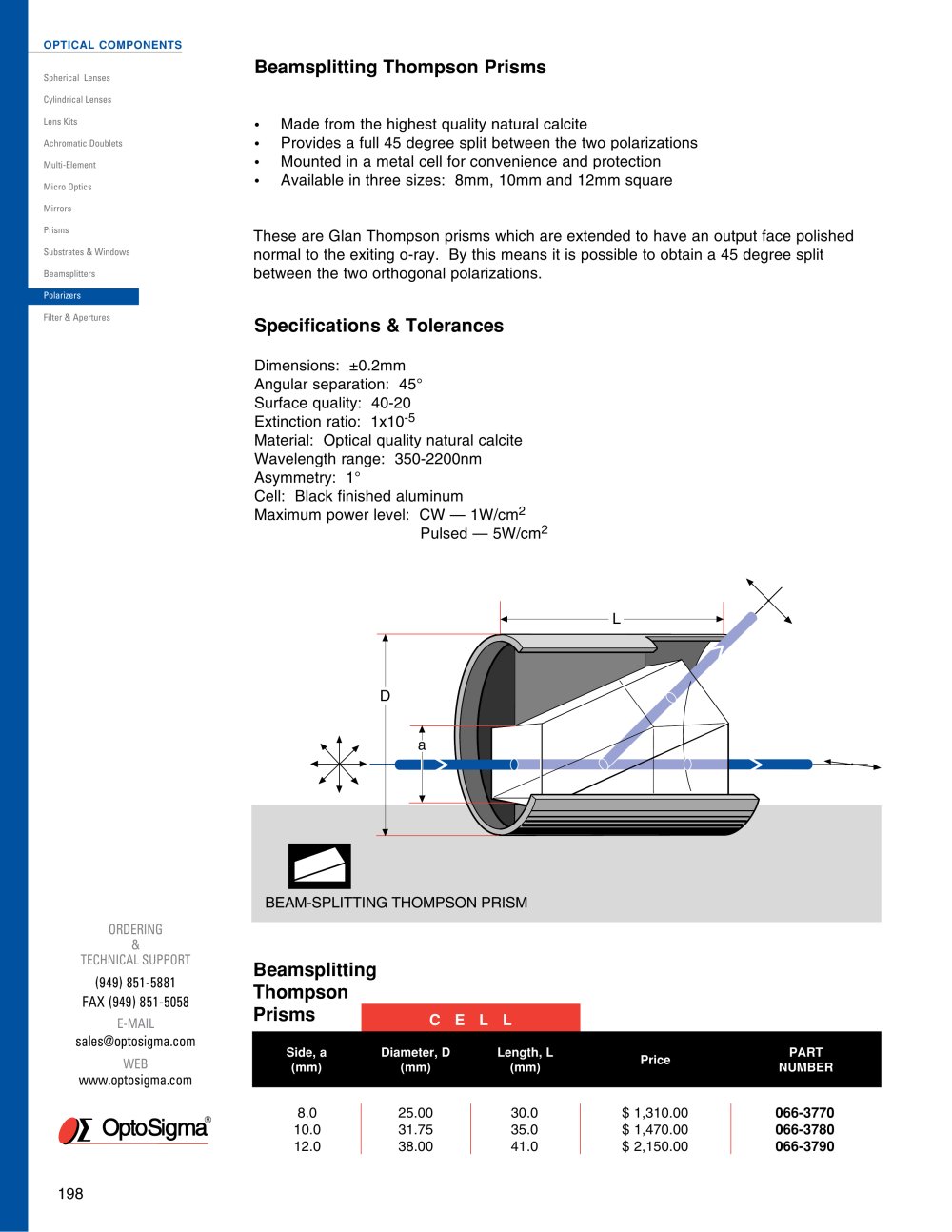

Beamsplitting Thompson Prisms / Beamsplitting Thompson Prism / 066-3770
Beamsplitting Thompson Prisms / Beamsplitting Thompson Prism / 066-3770
Contact information for ordering and technical support includes phone, fax, email, and web details for OptoSigma.
The document lists various optical components such as spherical lenses, cylindrical lenses, lens kits, achromatic doublets, multi-element optics, micro optics, mirrors, prisms, substrates & windows, beamsplitters, polarizers, filters, and apertures.
- Made from high-quality natural calcite.
- Provides a 45-degree split between two polarizations.
- Mounted in a metal cell for protection and convenience.
- Available in sizes: 8mm, 10mm, and 12mm square.
- Dimensions: ±0.2mm
- Angular separation: 45°
- Surface quality: 40-20
- Extinction ratio: 1x10-5
- Material: Optical quality natural calcite
- Wavelength range: 350-2200nm
- Asymmetry: 1°
- Cell: Black finished aluminum
- Maximum power level: CW — 1W/cm2, Pulsed — 5W/cm2
| Diameter, D (mm) | Length, L (mm) | Side, a (mm) | Price | Part Number |
|---|---|---|---|---|
| 8.0 | 25.00 | 30.0 | $1,310.00 | 066-3770 |
| 10.0 | 31.75 | 35.0 | $1,470.00 | 066-3780 |
| 12.0 | 38.00 | 41.0 | $2,150.00 | 066-3790 |
Catalog excerpts
OPTICAL COMPONENTS Spherical Lenses Cylindrical Lenses Lens Kits Achromatic Doublets Multi-Element Micro Optics Mirrors Prisms Substrates & Windows Beamsplitters Beamsplitting Thompson Prisms Made from the highest quality natural calcite Provides a full 45 degree split between the two polarizations Mounted in a metal cell for convenience and protection Available in three sizes: 8mm, 10mm and 12mm square These are Glan Thompson prisms which are extended to have an output face polished normal to the exiting o-ray. By this means it is possible to obtain a 45 degree split between the two orthogonal polarizations. Polarizers Filter & Apertures Specifications & Tolerances Dimensions: ±0.2mm Angular separation: 45° Surface quality: 40-20 Extinction ratio: 1x10-5 Material: Optical quality natural calcite Wavelength range: 350-2200nm Asymmetry: 1° Cell: Black finished aluminum Maximum power level: CW 1W/cm2 Pulsed ח 5W/cm2 & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 E-MAIL [email protected] www.optosigma.com Jl OptoSigma8 Beamsplitting Thompson Prisms Side, a (mm) Diameter, D (mm) Length, L (mm) Price PART NUMBER 8.0 10.0 12.0 25.00 31.75 38.00 30.0 35.0 41.0 $ 1,310.00 $ 1,470.00 $ 2,150.00 066-3770 066-3780 066-3790 198
