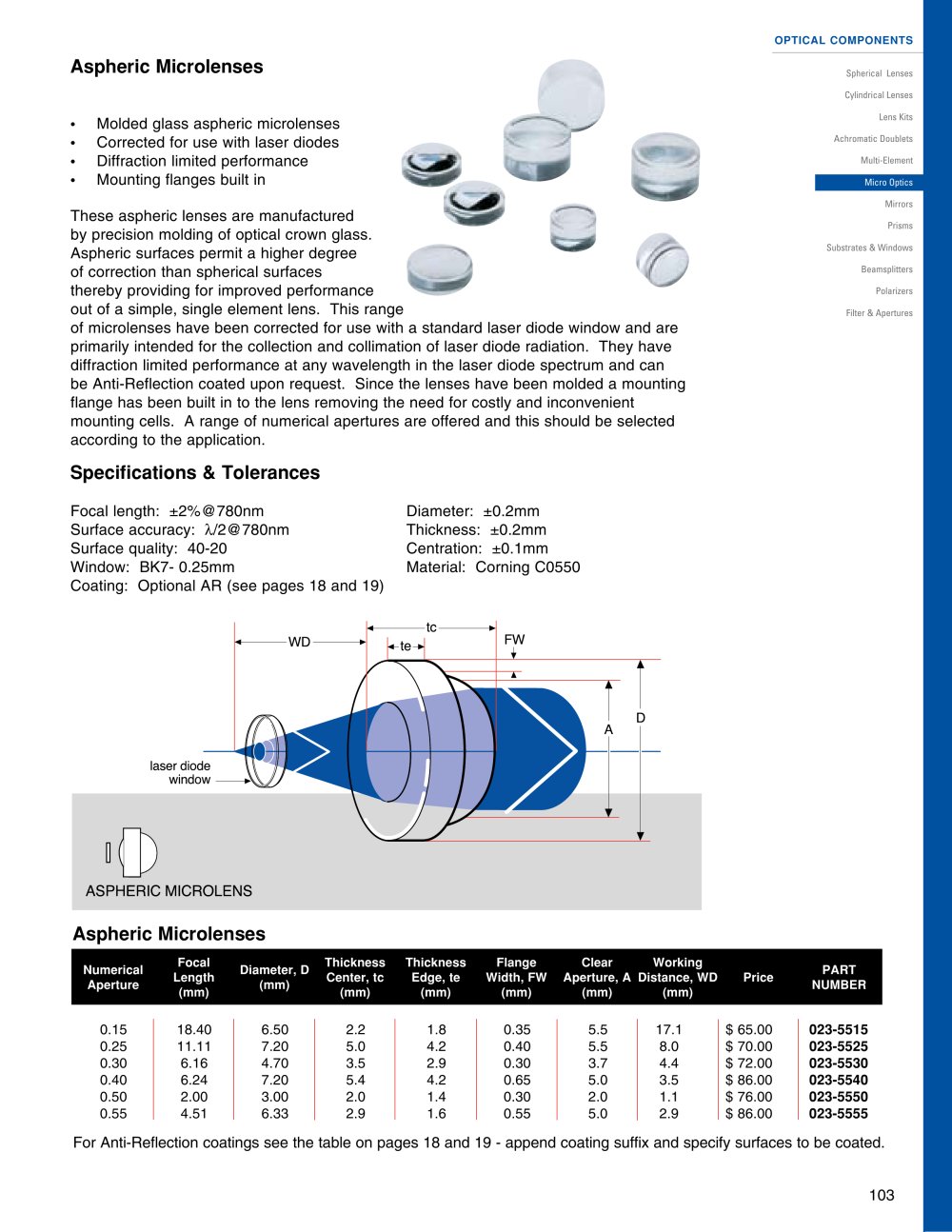

Aspheric Microlenses / Aspheric Lens NAO.15 / 023-5515 - 1

OPTICAL COMPONENTS Aspheric Microlenses Spherical Lenses Cylindrical Lenses Lens Kits Achromatic Doublets Multi-Element Mirrors Prisms Substrates & Windows Beamsplitters Polarizers Filter & Apertures Molded glass aspheric microlenses Corrected for use with laser diodes Diffraction limited performance Mounting flanges built in These aspheric lenses are manufactured by precision molding of optical crown glass. Aspheric surfaces permit a higher degree of correction than spherical surfaces thereby providing for improved performance out of a simple, single element lens. This range of microlenses have been corrected for use with a standard laser diode window and are primarily intended for the collection and collimation of laser diode radiation. They have diffraction limited performance at any wavelength in the laser diode spectrum and can be Anti-Reflection coated upon request. Since the lenses have been molded a mounting flange has been built in to the lens removing the need for costly and inconvenient mounting cells. A range of numerical apertures are offered and this should be selected according to the application. Specifications & Tolerances Focal length: ±2%@780nm Surface accuracy: /2@780nm Surface quality: 40-20 Window: BK7- 0.25mm Coating: Optional AR (see pages 18 and 19) Diameter: ±0.2mm Thickness: ±0.2mm Centration: ±0.1mm Material: Corning C0550 laser diode window ASPHERIC MICROLENS Aspheric Microlenses Numerical Aperture Focal Length (mm) Diameter, D (mm) Thickness Center, tc (mm) Thickness Edge, te (mm) Flange Width, FW (mm) Clear Working Aperture, A Distance, WD (mm) (mm) Price PART NUMBER 0.15 18.40 6.50 2.2 1.8 0.35 5.5 17.1 $ 65.00 023-5515 0.25 11.11 7.20 5.0 4.2 0.40 5.5 8.0 $ 70.00 023-5525 0.30 6.16 4.70 3.5 2.9 0.30 3.7 4.4 $ 72.00 023-5530 0.40 6.24 7.20 5.4 4.2 0.65 5.0 3.5 $ 86.00 023-5540 0.50 2.00 3.00 2.0 1.4 0.30 2.0 1.1 $ 76.00 023-5550 0.55 4.51 6.33 2.9 1.6 0.55 5.0 2.9 $ 86.00 023-5555 For Anti-Reflection coatings see the table on pages 18 and 19 - append coating suffix and specify surfaces to be coated. 103
