Absorptive Neutral Density Filters, Mounted / Mounted Absorbing ND Filter / 077-0178 - 1

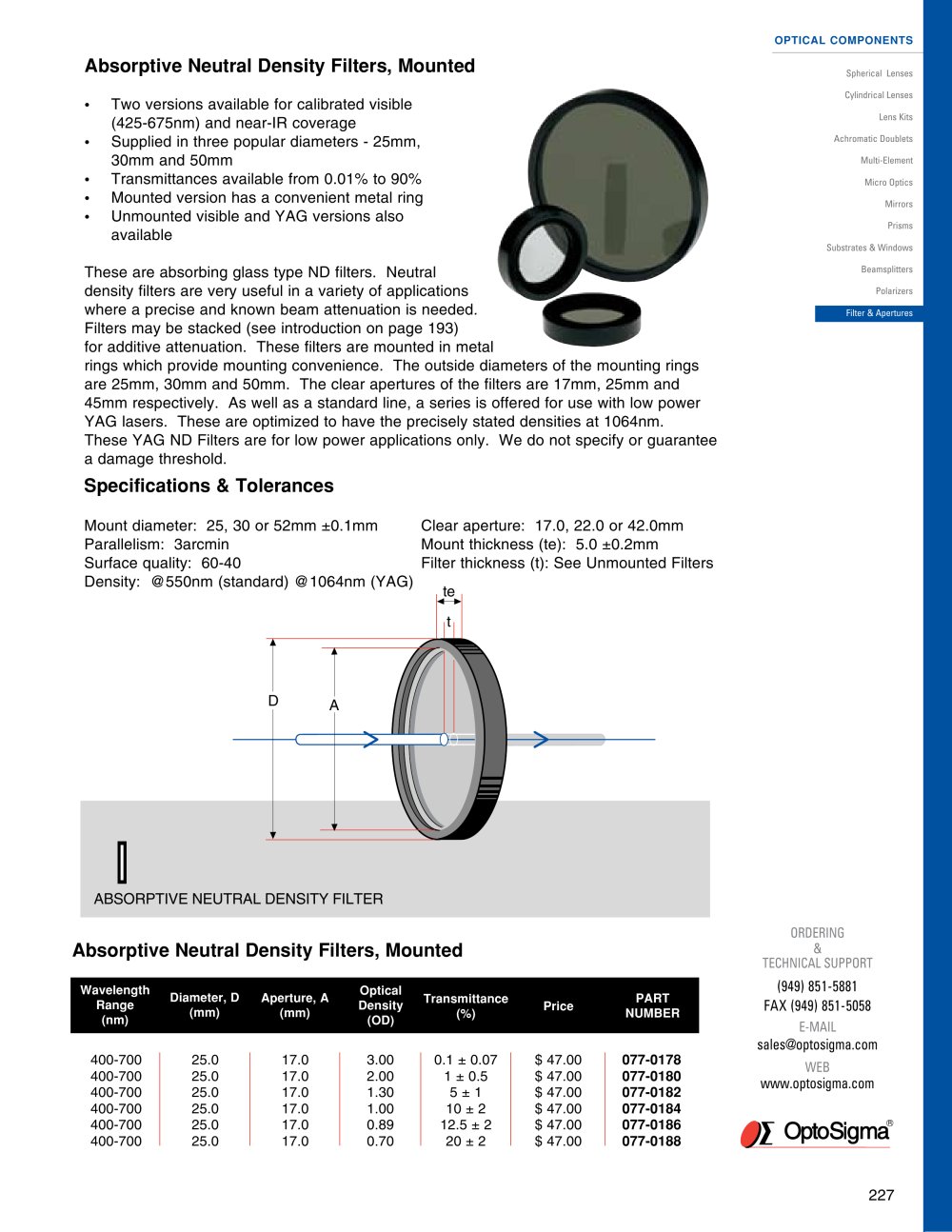

OPTICAL COMPONENTS Absorptive Neutral Density Filters, Mounted Two versions available for calibrated visible (425-675nm) and near-IR coverage Օ Supplied in three popular diameters - 25mm, 30mm and 50mm Transmittances available from 0.01% to 90% Օ Mounted version has a convenient metal ring Unmounted visible and YAG versions also available These are absorbing glass type ND filters. Neutral density filters are very useful in a variety of applications where a precise and known beam attenuation is needed. Filters may be stacked (see introduction on page 193) for additive attenuation. These filters are mounted in metal rings which provide mounting convenience. The outside diameters of the mounting rings are 25mm, 30mm and 50mm. The clear apertures of the filters are 17mm, 25mm and 45mm respectively. As well as a standard line, a series is offered for use with low power YAG lasers. These are optimized to have the precisely stated densities at 1064nm. These YAG ND Filters are for low power applications only. We do not specify or guarantee a damage threshold. Specifications & Tolerances Spherical Lenses Cylindrical Lenses Lens Kits Achromatic Doublets Multi-Element Micro Optics Mirrors Prisms Substrates & Windows Beamsplitters Polarizers Filter & Apertures Mount diameter: 25, 30 or 52mm ±0.1mm Parallelism: 3arcmin Surface quality: 60-40 Density: @550nm (standard) @1064nm (YAG) Clear aperture: 17.0, 22.0 or 42.0mm Mount thickness (te): 5.0 ±0.2mm Filter thickness (t): See Unmounted Filters te Absorptive Neutral Density Filters, Mounted ORDERING & TECHNICAL SUPPORT (949) 851-5881 FAX (949) 851-5058 sales@optosigma.com www.optosigma.com Jl OptoSigma9 Wavelength Range (nm) Diameter, D Aperture, A Optical Density (OD) Transmittance Price PART (mm) (mm) (%) NUMBER 400-700 25.0 17.0 3.00 0.1 ± 0.07 $ 47.00 077-0178 400-700 25.0 17.0 2.00 1 ± 0.5 $ 47.00 077-0180 400-700 25.0 17.0 1.30 5 ± 1 $ 47.00 077-0182 400-700 25.0 17.0 1.00 10 ± 2 $ 47.00 077-0184 400-700 25.0 17.0 0.89 12.5 ± 2 $ 47.00 077-0186 400-700 25.0 17.0 0.70 20 ± 2 $ 47.00 077-0188 227
