Non-contact Laser Dial-Indicator

Product catalog summary

Overview: The DI-500 is a non-contact laser dial-indicator designed as an add-on to Optodyne's MCV-500 laser calibration system. It enables precise displacement measurements of polished surfaces without mechanical contact, functioning as a high-accuracy mechanical dial-indicator.

Applications: The DI-500 is suitable for measuring spindle run-out at high speeds, assessing the rotational angle accuracy of 5-axis machines, and replacing mechanical straightedges and square-edges with optical equivalents as per ASME standards.

Features and Benefits:

Easy setup and operation
No mechanical contact required
NIST traceable laser accuracy
Compact and lightweight design
Quick and efficient measurements
Versatile and flexible usage

Specifications:

Laser stability: 0.1 ppm
Linear accuracy: 1 ppm
Resolution: 1 microinch (0.01 µm)
Measurement range: 40 inches (1000 mm)
Data rates: 1 to 1000 data/sec
Maximum data points: 10,000 points per record
Analog output: 0 to 12 V at 0.234 V/0.001"

Configuration: The system includes components such as a flat-mirror target, optical adapter, focus lens, chrome plated plug gauge, 90-degree beam bender, PC interface card & cable, Windows™ software, and analog output capabilities.

Key Data: The DI-500 can measure spindle runout at 100 RPM over 50 cycles, demonstrating its capability for high-speed precision measurements.

Catalog excerpts

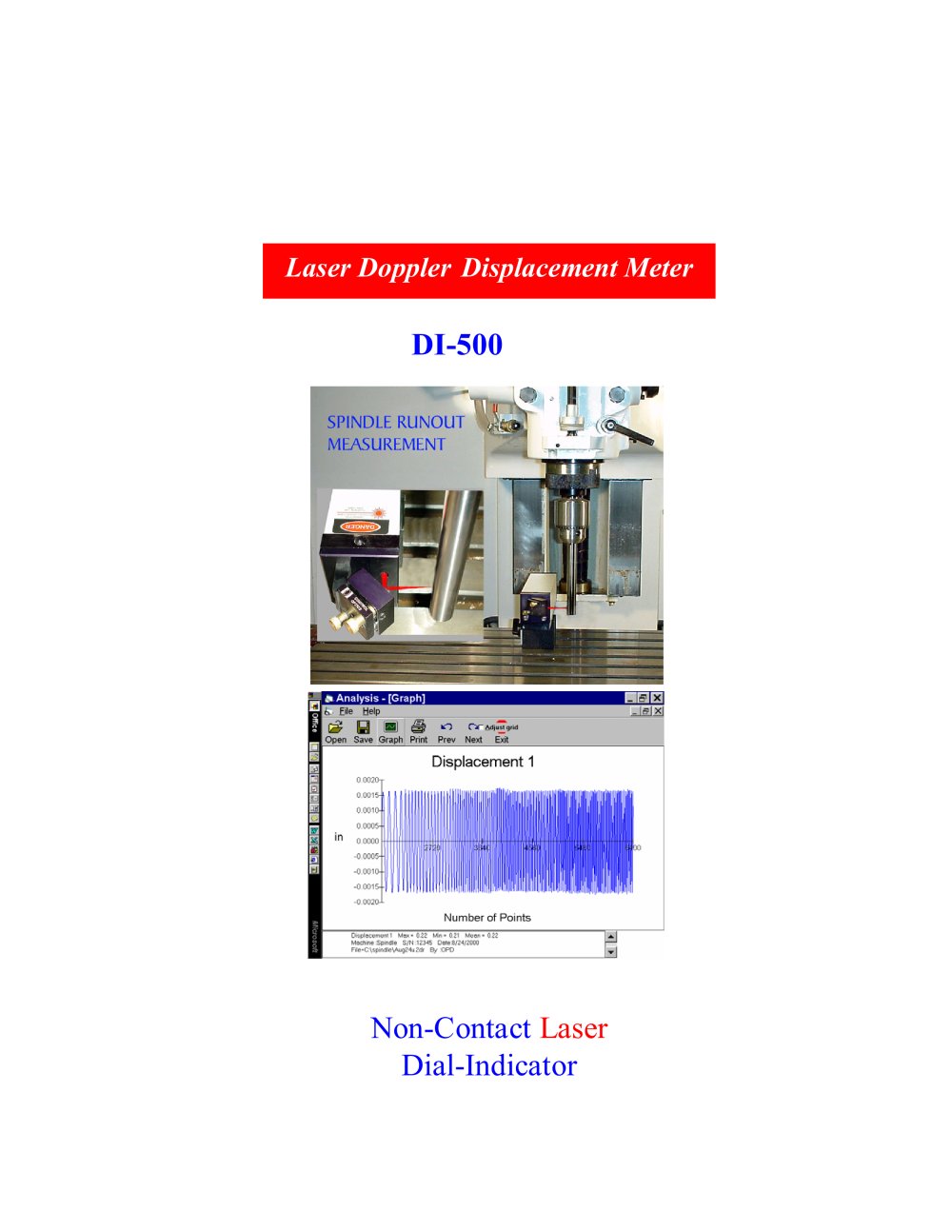

Laser DopplerDisplacement Meter DI-500 Non-Contact Lase r Dial-Indicator >

Open the catalog to page 1

Optodyne's DI-500 non-contact laser dial-indicator is an add-on package to Optodyne'sMCV-500 laser calibration system. The combined system can be used to perform non-contact displacement measurement of a polished surface, such as a flat-mirror or a cylinder. Hence it can be used as a mechanical dial-indicator without mechanical contact and with high accuracy. Typical applications are measuring the spindle run-out at high speed; measuring the accuracy of a rotational angle of a 5-axis machine; replacing a mechanical straightedge by an "optical" straightedge (ASME B5.54 Section 5.8.2.2); replacing...

Open the catalog to page 2

PC interface card & cable IPC5-1000 Windows software W-500LB Analog output IDAC Capabilities Laser stability 0.1 ppm Linear accuracy 1 ppm Resolution 1 microinch (0.01 m) Measurement range 40 inch (1000 mm) Data rates 1 to 1000 data/sec Maximum data points 10,000 points per record Analog output 0 to 12 V at 0.234 V/0.001" >

Open the catalog to page 4
