Linear Measurement Enhancement Package
Product catalog summary

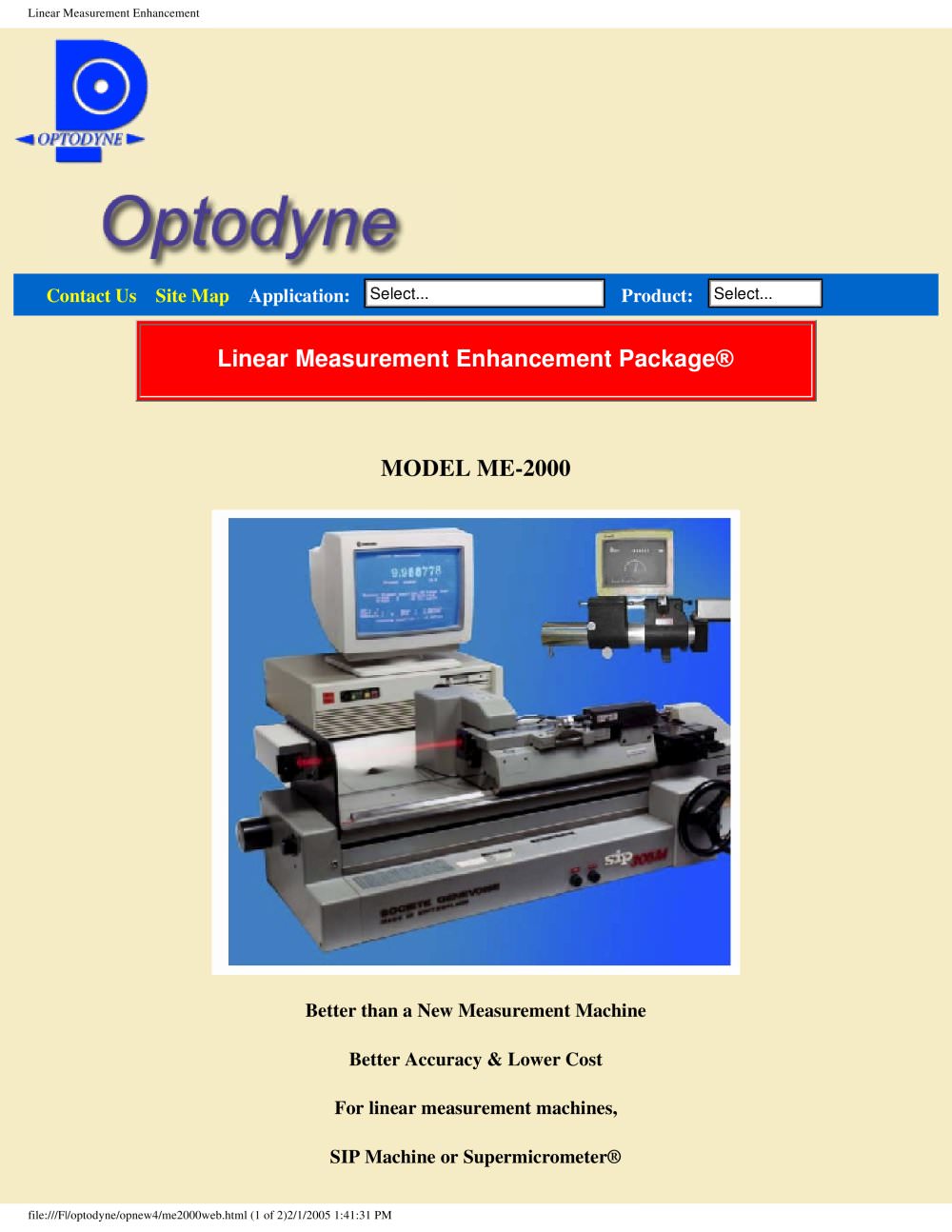

Overview: The Linear Measurement Enhancement Package® (Model ME-2000) is designed to enhance the accuracy and cost-effectiveness of linear measurement machines, such as SIP Machines or Supermicrometers®. It offers better accuracy and lower costs compared to new measurement machines.
Specifications:
- Laser Accuracy: The package provides a resolution of 1.5 microinches with an accuracy of 1.5 microinches ± 1 microinch per inch.
- Opto-Electronic Tailstock: Features a unique sensor for automatic data recording with a repeatability of ± 3 microinches, eliminating the need for an analog meter and difficult zero setting.
- Desk Top Computer Power: Allows for display in English or metric units, automatic data recording, processing, and management.
- Easy Installation: Includes a desktop PC, opto-electronic sensor, and mounting kit for quick installation.
- Automatic Compensation: Offers optional hardware for automatic compensation for environmental changes and thermal expansion.
Configuration:
- Narrow-beam laser head L-103
- Processor Module as an IBM card and home position switch P-501-IHS
- 0.5” Dia. Retroreflector R-102
- Gage block and linear measurement program S-105
- Mounting Kit LD-26
- IBM Compatible PC and color monitor
Options: Automatic Temperature Compensation (ATC) is available.
Power Requirements: 120 VAC, 60 Hz. Certification by NIST is available upon request.
See more
Catalog excerpts
Linear Measurement Enhancement >
Open the catalog to page 4
file:///F|/optodyne/opnew4/me2000web_3.html Contact UsSite MapApplication:Product: > Select... Select... Option: > Configuration: Automatic Temperature compensation ATC Narrow-beam laser headL-103 Processor Module as an IBM card and home position switch P-501-IHS 0.5 Dia. Retroreflector R-102 Gage block and linear measurement programS-105 Mounting Kit LD-26 IBM Compatible PC and color monitor PC Headstock, Laser Device: Resolution1.5 microinches Accuracy1.5 microinchesԱ 1 microinch/inch Max Range 10 inches Max Slew Rate 3 ips Tailstock, Opto-Electronic Transducer: Repeatability 3 microinch Power:...
Open the catalog to page 5All OPTODYNE catalogs and technical brochures
