Automatic Rotary Table Calibration Package
Automatic Rotary Table Calibration Package
OPTODYNE's RT-100A Automatic Rotary Table Calibration Package is an enhancement for Optodyne's MCV-2002 and MCV-4000 models, designed to calibrate rotary tables or stages with high precision. Unlike traditional methods using a laser interferometer, Optodyne's approach is more cost-effective and user-friendly.
Technology
The system utilizes Optodyne's proprietary Laser Doppler Displacement Meter (LDDM) Technology. The dual-beam laser system measures rotational angles up to ±10 degrees, extendable to 360 degrees with a small turntable.
Major Features and Benefits
- Utilizes a standard dual-beam laser system.
- Offers high accuracy and repeatability.
- Eliminates the need for an expensive calibrated indexing table.
- Easy and quick setup and operation.
- Provides true angular measurement without critical setup inaccuracies.
- Compact and affordable solution.
Applications
- Calibration of CNC machine tools' rotary axis.
- Calibration of rotary tables or stages.
- Quality control maintenance.
- Compensation of rotary position errors.
Specifications
- Configuration includes a dual-beam laser system, automatic turntable with controller, adjustable mount, and calibration accessories.
- Laser stability: 0.1 ppm.
- System accuracy: ±0.2% of displayed value or ±0.2 arcsec.
- Angular range: ±10 degrees, extendable to 360 degrees with a turntable.
Setup and Accuracy
The system's large alignment tolerance ensures that angle measurements are unaffected by runout, wobble, parallelism, or co-axial alignment issues. The setup is straightforward, and the laser system's accuracy is better than 1 arcsec under normal conditions.
Catalog excerpts
Laser Doppler Displacement Meter > RT-100A Automatic Rotary Table Calibration Package >

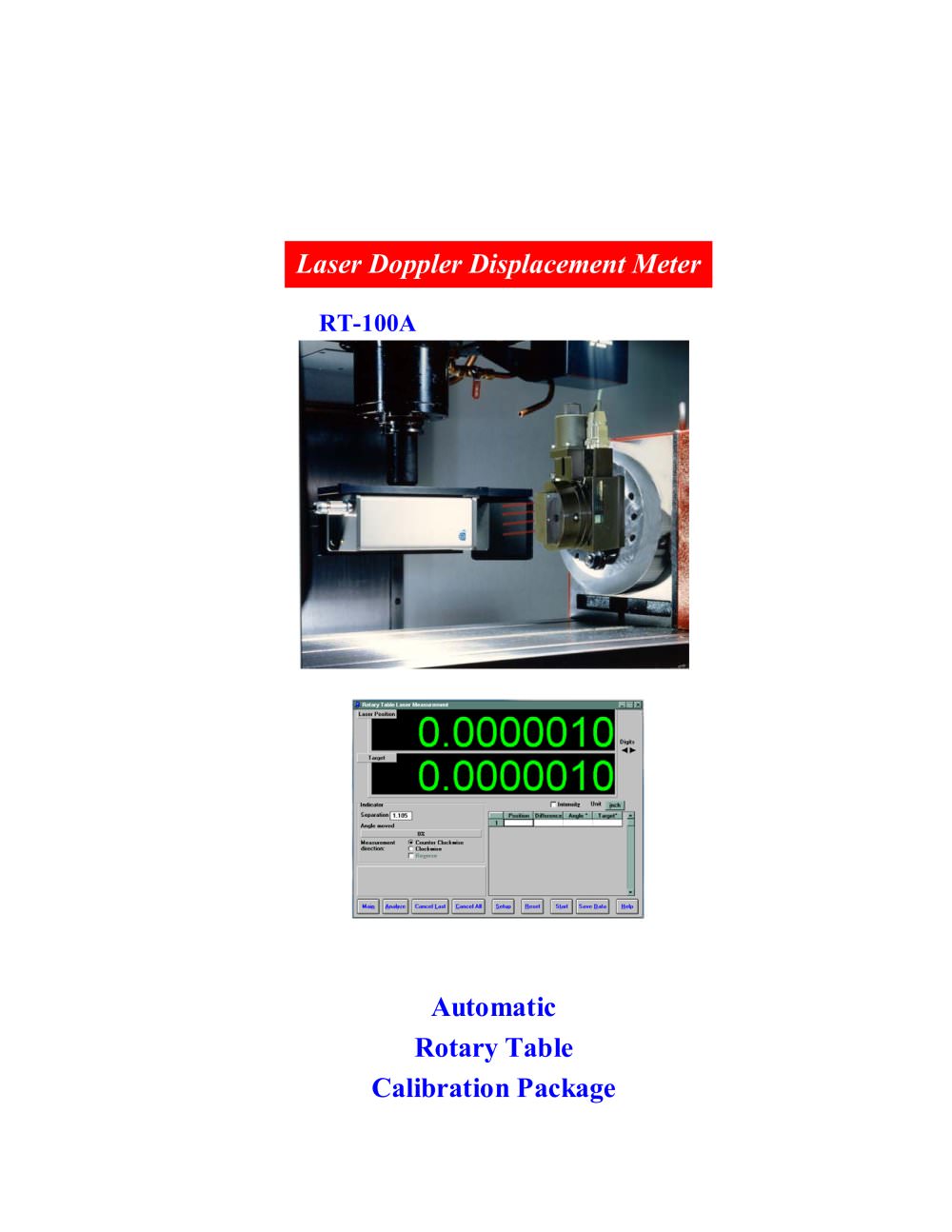

Open the catalog to page 1
OPTODYNE's RT-100A Automatic Rotary Table Calibration Package MAJOR FEATURES AND BENEFITS is an add-on to Optodyne's MCV-2002 Linear and Angular Machine Calibration Instrument (or the enhanced MCV-4000 model). The combined system can be used to calibrate rotary tables or stages with high accuracy. Optodyne's method is different from the conventional comparative approach using a laser interferometer, where the test device is compared to the known inaccuracies in a master rotary calibrator. This comparative approach is both very expensive and difficult to use. Optodyne's machine calibration instruments...
Open the catalog to page 2
Motorized Turn-Table Rotar y Table UnderCalibration Adjustable Mount Dual-Beam Laser Head >
Open the catalog to page 3
Configuration: Dual-beam laser system knot included) MCV-2002 or MCV-4000 Dual retroreflectar R-103 Automatic turntable with controller LD-53 Adjustable mount LD-46A Rotary table calibration accessories LD-54 Rotary table calibration program W- 105 Notebook PC computer (not included) Capability: Laser stability 0.1 ppm System accuracy 0.2% of displayed value ѱ 0.2 arcsec ( higher resolution available) Angular range 10 degrees, 360 degrees with a turntable >
Open the catalog to page 4All OPTODYNE catalogs and technical brochures
