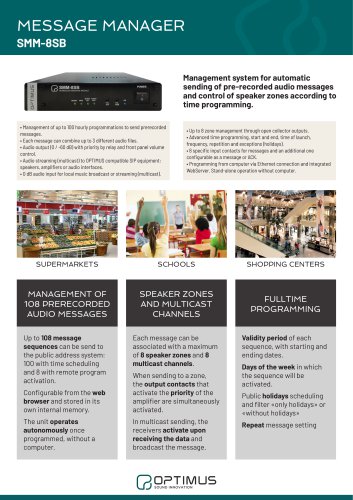

Management system for automatic sending of pre-recorded audio messages and control of speaker zones according to time programming. • Management of up to 100 hourly programmations to send prerecorded messages. • Each message can combine up to 3 different audio files. • Audio output (0 / -60 dB) with priority by relay and front panel volume control. • Audio streaming (multicast) to OPTIMUS compatible SIP equipment: speakers, amplifiers or audio interfaces. • 0 dB audio input for local music broadcast or streaming (multicast). • Up to 8 zone management through open collector outputs. • Advanced time programming, start and end, time of launch, frequency, repetition and exceptions (holidays). • 8 specific input contacts for messages and an additional one configurable as a message or ACK. • Programming from computer via Ethernet connection and integrated WebServer. Stand-alone operation without computer. SHOPPING CENTERS MANAGEMENT OF 108 PRERECORDED AUDIO MESSAGES SPEAKER ZONES AND MULTICAST CHANNELS Up to 108 message sequences can be send to the public address system: 100 with time scheduling and 8 with remote program activation. The unit operates autonomously once programmed, without a computer. Each message can be associated with a maximum When sending to a zone, the output contacts that activate the priority of the amplifier are simultaneously activated. In multicast sending, the receivers activate upon receiving the data and Validity period of each sequence, with starting and ending dates. Days of the week in which the sequence will be activated. Public holidays scheduling and filter «only holidays» or «without holidays» Repeat message setting

EXAMPLE 1Connection of the message manager in a system made up of a music source + amplifier + loudspeakers, new or already installed. In this case, zone selection is not used. music / pre-recorded messages configurable audio output -60 dB / 0 dB and adjustable level MANAGEMENT OF 108 PRERECORDED AUDIO MESSAGES Connecting via Ethernet (direct, switch or router). Access from browser using the integrated web server. Configuration options: - Network functions - Time / Date - Audio files - Input Contacts - Public holidays - Time Scheduling - Checking audio files - Configuration uploading/ downloading...

MESSAGE MANAGER EXAMPLE 2 The message manager, combined with systems that have the ability to select zones through contacts, allows you to take advantage of their ability to selectively send messages to certain groups of loudspeakers. Control desktop microphone music source Public address system music / pre-recorded messages zone control 8 MESSAGE PRIORITY SEQUENCES The unit allows 8 extra message sequences with priority over scheduled messages. These sequences are activated by input contacts. There are 10 priority levels in order to decide which sequence is to be sent in case of coincidence....

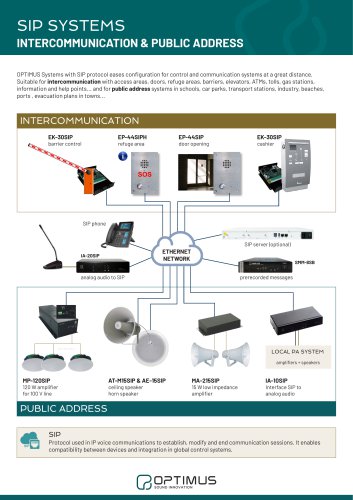

The SMM-8SA message player with time programming and zone control also has an Ethernet output that allows you to send messages to remote OPTIMUS compatible SIP equipment, whether they are loudspeakers, amplifiers or audio interfaces. Therefore, the messages of the device, whether activated by time schedules (50) or by input contacts (8), can be transmitted at the same time by the local public address system and by the different audio points connected to the data network. — audio output MP-120SIP The 120 W power amplifier allows to define a remote zone of multiple loudspeakers, or of high power...
