portable data collection terminal

Product catalog summary

Product Overview

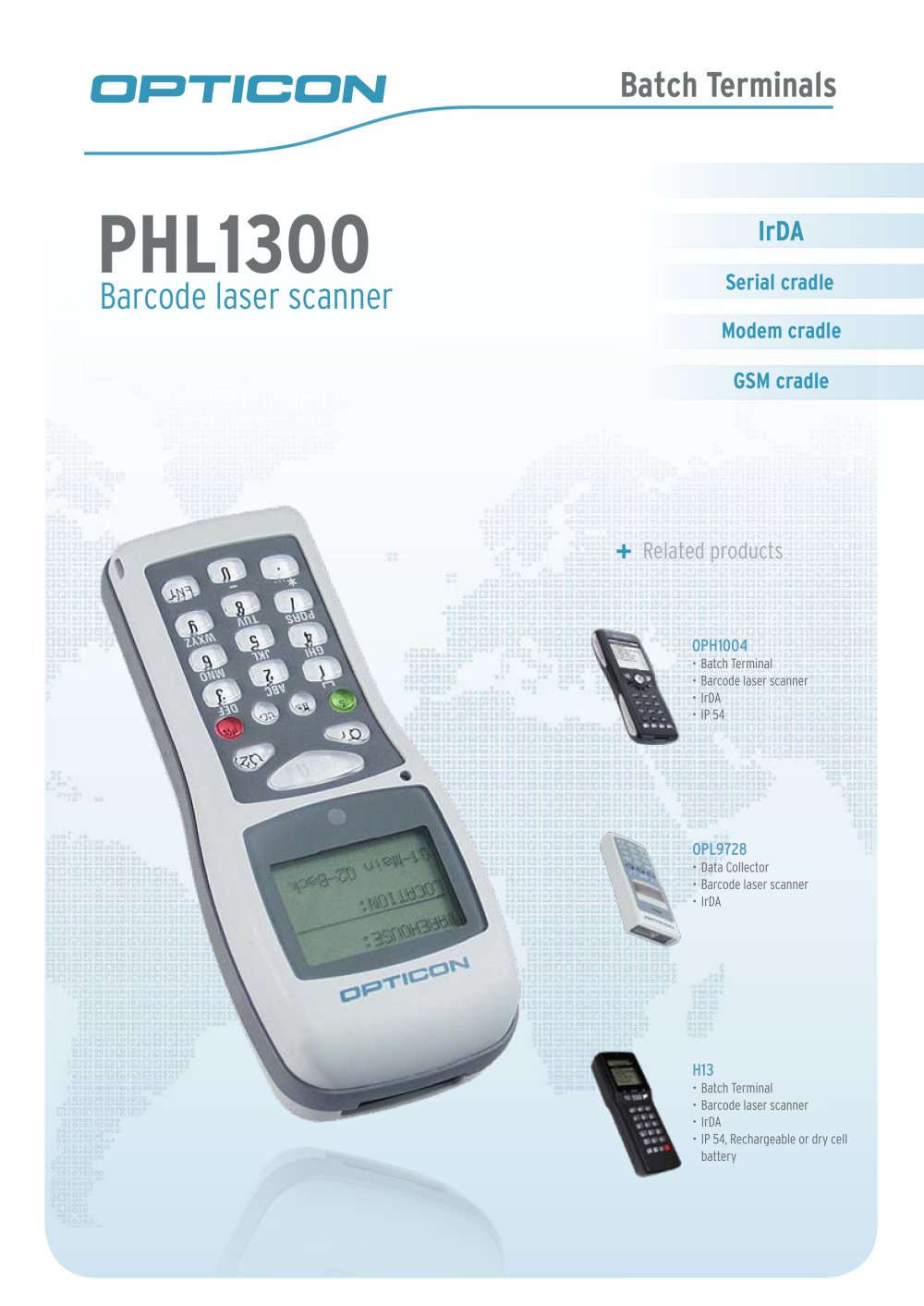

The document provides detailed specifications for the PHL1300 batch terminal, a barcode laser scanner with various communication and power options. It highlights related products such as OPH1004, OPL9728, and H13, which share similar features like barcode scanning and IrDA communication.

Specifications

Operation: The device operates with a 16-bit CPU and a proprietary operating system. It is programmable in C-language, with a free downloadable software development kit.
Memory: It includes 512 kB FlashROM and 8 MB D-RAM.
Display: Features a graphic LCD with backlight, 96 x 64 pixels resolution.
Operating Indicators: Visual indicators include a good read LED (red/green), and a buzzer for non-visual alerts.
Operating Keys: 19 keys total, with a 12 key (alpha)numeric keypad.
Communication: Supports IrDA Ver. 1.2 with baud rates from 2400 bps to 115.2 kbps.
Power: Options include a rechargeable Lithium-Ion battery and 2 x AA-size dry cell batteries, with an operating time of approximately 36 hours for rechargeable and 78 hours for dry cell batteries.

Barcode Scanner Optics

Light Source: 650 nm visible laser diode.
Scan Method: Vibrating mirror with a scan rate of 100 scans/sec.
Depth of Field: Varies based on PCS value, supporting a range of barcode sizes.

Supported Symbologies
The scanner supports various 1D barcodes including JAN/UPC/EAN, Codabar, Code 39, Code 93, and postal codes like Chinese Post.

Durability

Temperature: Operates between -10 to 40 ºC and stores between -20 to 60 ºC.
Humidity: Operates in 20 - 80% non-condensing humidity.
Drop Test: Withstands a 1.5 m drop onto concrete.

Physical Characteristics

Dimensions: 55 x 135 x 33 mm.
Weight: Approximately 140 g including the battery.
Case: Made of ABS, Grey.

Regulatory & Safety
Complies with EN 55022, EN 55024, IEC 825, and is classified as a Class I laser product.

Accessories
Includes a backup battery and hand strap. Additional items like cradles and cases are sold separately.
