OPR 3101 Rugged Handheld Laser Scanner

Product catalog summary

Product Overview
The OPR 3101 is a rugged, ergonomic, and lightweight laser scanner designed for harsh environments. It features Bluetooth connectivity for reliable data transmission and onboard data backup to prevent data loss.

Key Features

Rugged Design: Sealed to IP54 standards, withstands drops up to 2 meters, and includes a trigger guard.
Bluetooth Interface: Uses Bluetooth for instant data transmission to compatible devices.
Data Backup: Stores scanned data onboard to prevent loss when out of Bluetooth range.
Good Read Indicator: Features a bright LED and adjustable tone for feedback in low-light or noisy environments.

Specifications

Electrical: 165 mA typical current consumption, 25-hour battery life with a 3.7 V, 1620 mAh Lithium-Ion battery.
Optical: 650 nm laser diode, 100 scans/sec, various reading angles, and a depth of field up to 720 mm.
Communication: Bluetooth 2.0, Class 2 output, 10-meter range.
Environmental: Operates between -10 to 60 °C, 5-95% humidity, IP54 protection.
Physical: Dimensions of 68 x 155 x 165 mm, weight of 250 g.
Regulatory: Complies with CE, FCC, VCCI, RoHS standards.

Supported Symbologies

1D: Includes JAN/UPC/EAN, Code 39, Code 128, and more.
2D: Supports MicroPDF417 and PDF417.

Accessories

Dedicated Communication Cradle: CRD-3101
Dedicated Power Charger: CHG-3101

Contact Information
Opticon Sensors Europe B.V., Opaallaan 35, 2132 XV Hoofddorp, The Netherlands. Phone: +31 (0)23-5692700, Email: [email protected]

Catalog excerpts

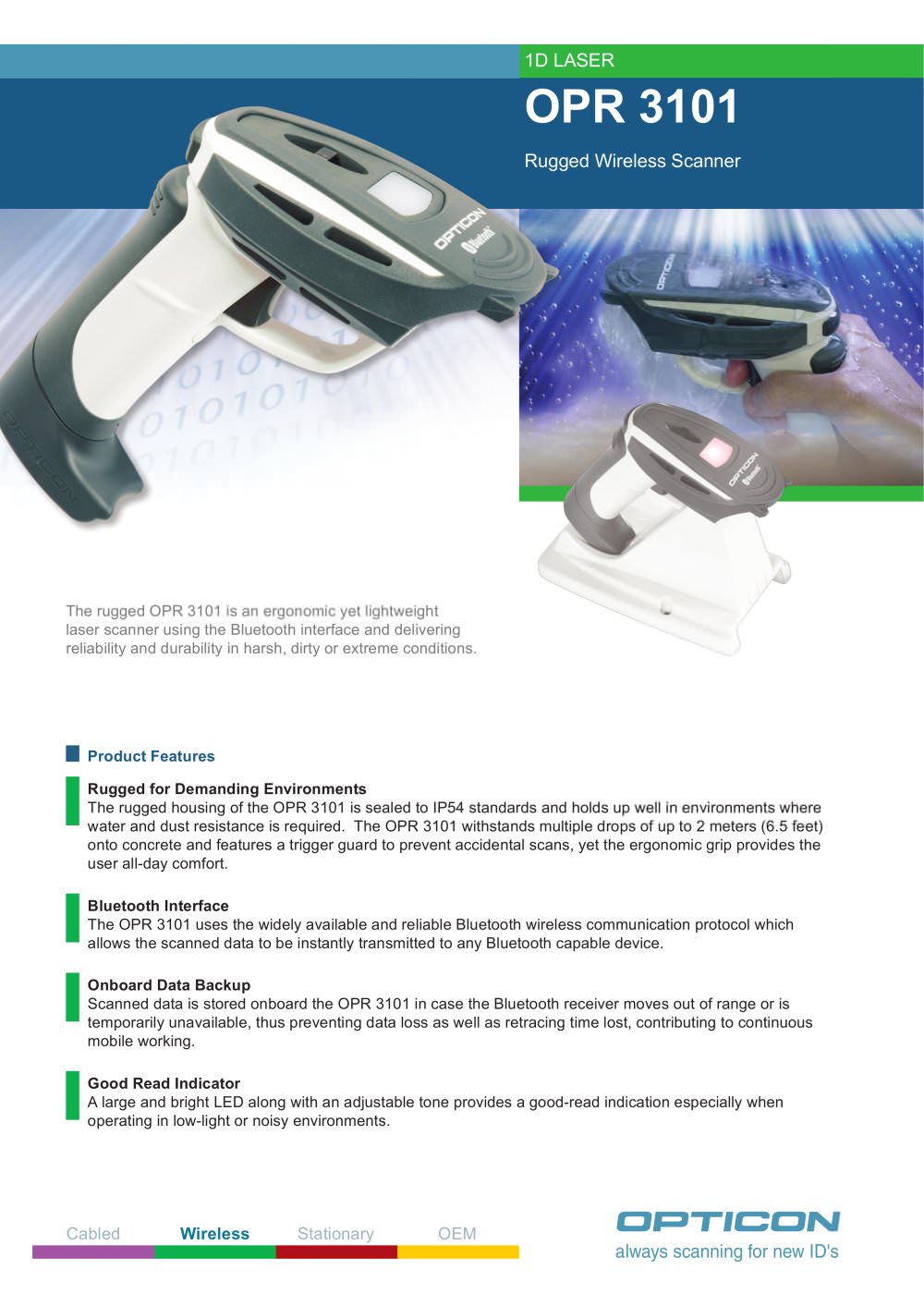

OPR 3101 Rugged Handheld Laser Scanner-1

The rugged OPR 3101 is an ergonomic yet lightweight laser scanner using the Bluetooth interface and delivering reliability and durability in harsh, dirty or extreme conditions. Product Features Rugged for Demanding Environments The rugged housing of the OPR 3101 is sealed to IP54 standards and holds up well in environments where water and dust resistance is required. The OPR 3101 withstands multiple drops of up to 2 meters (6.5 feet) onto concrete and features a trigger guard to prevent accidental scans, yet the ergonomic grip provides the user all-day comfort. Bluetooth Interface The OPR 3101 uses the widely available and reliable Bluetooth wireless communication protocol which allows the scanned data to be instantly transmitted to any Bluetooth capable device. Onboard Data Backup Scanned data is stored onboard the OPR 3101 in case the Bluetooth receiver moves out of range or is temporarily unavailable, thus preventing data loss as well as retracing time lost, contributing to continuous mobile working. Good Read Indicator A large and bright LED along with an adjustable tone provides a good-read indication especially when operating in low-light or noisy environments. >

Open the catalog to page 1

OPR 3101 Rugged Handheld Laser Scanner-2

Copyright Opticon. All rights reserved. This information is subject to change without prior notice.B_OPR3101_002 - The Netherlands: Hoofddorp - Taiwan: Taipei Opticon Sensors Europe B.V.European headquartersOpaallaan 352132 XV Hoofddorp The Netherlandsphone: +31 (0)23-5692700 fax: +31 (0)23-5638266email: [email protected]: www.opticon.com - France: ISSY Les Moulineaux CEDEX - P.R.China: Shanghai - Germany: Dietzenbach - Australia: Kariong - Italy: Castel Maggiore (BO) - Spain: Valencia - Sweden: Jrflla - United Kingdom: Luton, Bedfordshire - U.S.A.: Orangeburg, NY - Bellevue, WA - Japan:...

Open the catalog to page 2
