Product Overview

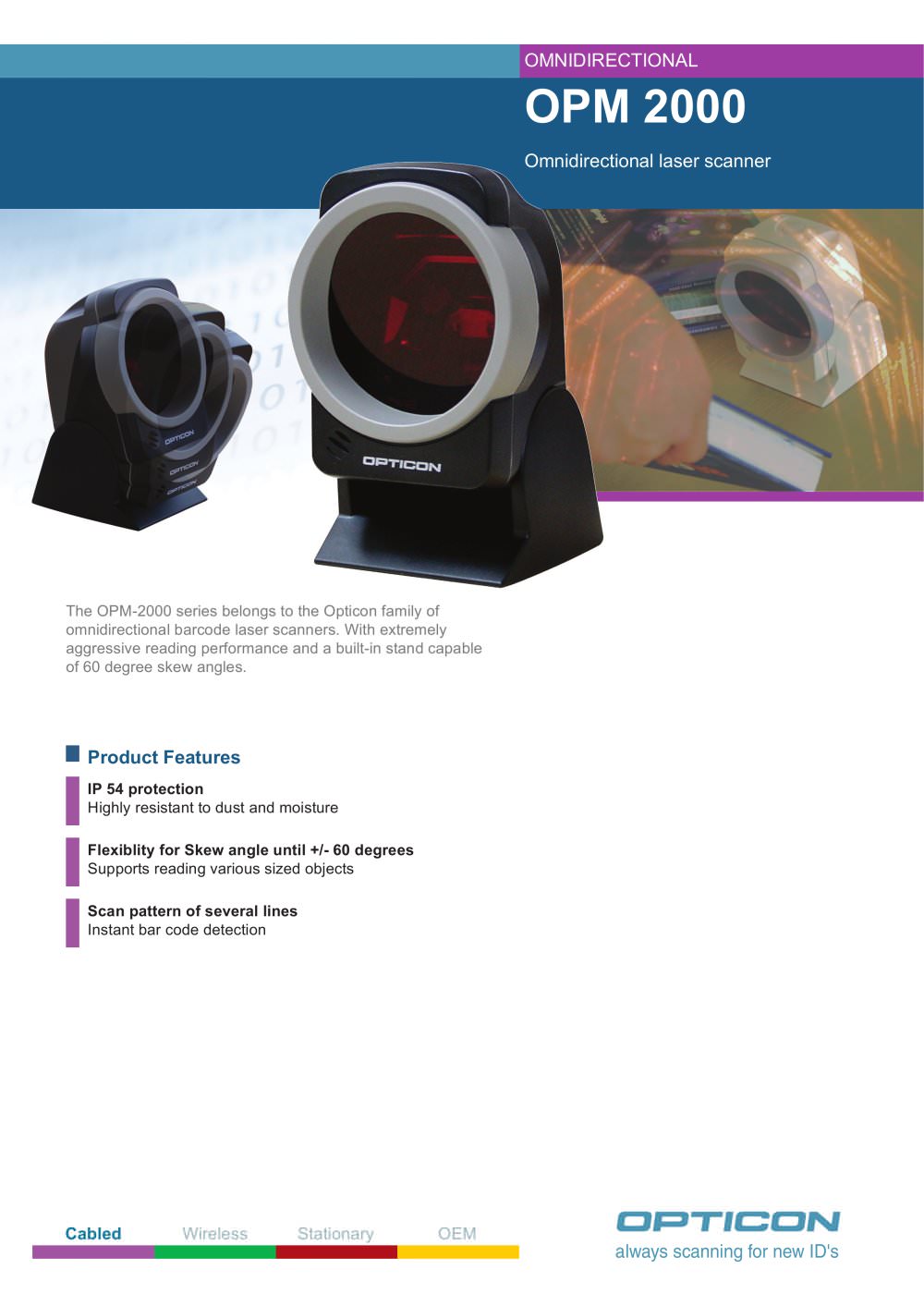

The OPM-2000 series is part of the Opticon family of omnidirectional barcode laser scanners, known for its aggressive reading performance and a built-in stand capable of 60-degree skew angles. It offers IP54 protection, making it highly resistant to dust and moisture, and supports reading various sized objects with a scan pattern of several lines for instant barcode detection.

Specifications
Electrical Specifications: Requires a voltage of 5 V ± 5%.
Optical Specifications: Utilizes a 650 nm visible laser diode with a scan rate of 1000 scans/sec. It supports a reading pitch angle of -50 to 0°, 0 to +50º, a skew angle of -60 to -8°, +8 to +60°, and a rotation angle of 360°. The minimum resolution at PCS 0.9 is 0.127 mm / 5 mil.
Communication Specifications: Interfaces available include RS232C, Keyboard Wedge, and USB(HID).
Environmental Specifications: Operates in temperatures from 0 to 40 ºC and can be stored in temperatures from -20 to 60 ºC. It has a humidity range of 20 - 85% in operation and 20 - 90% in storage. It can reject ambient fluorescent light up to 3,000 lx and direct sunlight up to 70,000 lx.
Physical Specifications: Dimensions are 164 x 104 x 115 mm, weighing approximately 480 g. Available in black and white.

Regulatory Compliance
The product complies with laser safety class IEC 825, class I laser product, and product compliance standards EN 55022, EN 55024, FCC Class B, and CE.

Contact Information
Opticon Sensors Europe B.V., Opaallaan 35, 2132 XV Hoofddorp, The Netherlands. Phone: +31 (0)23-5692700, Email: [email protected], Website: www.opticon.com
