OPL 6845 Laser scanner
OPL 6845 Laser scanner
The OPL-6845 is a versatile laser scanner available in black and off-white, designed to integrate seamlessly with various PC systems through Wedge, USB, or RS232C interfaces. It is suitable for both new and legacy systems.
Product Features
- RoHS compliant, environmentally friendly.
- Enhanced scanning performance with high read rates.
- Collapsible modular stand reduces packaging waste.
- Available in two colors to match most systems.
Specifications
Electrical Specifications
- Voltage requirement: 5 V ± 10%.
- Light source: 650 nm visible laser diode.
- Scan rate: 100 scans/sec.
- Reading angles: Pitch (-52 to 0º, 0 to +44º), Skew (-59 to 0º, 0 to +59º), Rotation (-58 to 0º, 0 to +55º).
- Curvature: R>13 mm (EAN8), R>19 mm (EAN13).
- Minimum resolution at PCS 0.9: 0.127 mm / 5 mil.
- Depth of field varies with resolution, from 20 mm to 243 mm.
- Interfaces: Keyboard Wedge, RS232C, USB(HID).
- Supported barcode symbologies include JAN/UPC/EAN, Codabar, Code 39, Code 93, Code 128, and more.
- Operating temperature: -5 to 50 ºC.
- Storage temperature: -20 to 60 ºC.
- Humidity: 20 - 80% in operation, 10 - 90% in storage.
- Light rejection: 3,000 lx (fluorescent), 50,000 lx (sunlight).
- Shock resistance: 1.5 m drop onto concrete.
- Protection: IP 42.
- Dimensions: 32 x 57 x 159 mm.
- Weight: Approximately 90 g.
- Case material: ABS with antibacterial coating.
- Dimensions: 160 x 190 mm, height 245 mm.
- Weight: Approximately 290 g.
- Purpose: Auto trigger stand.
Regulatory Compliance
- Laser safety: IEC 825, Class I laser product.
- Product compliance: EN 55022, EN 55024.
Contact Information
Opticon Sensors Europe B.V., Opaallaan 35, 2132 XV Hoofddorp, The Netherlands. Phone: +31 (0)23-5692700, Email: [email protected], Website: www.opticon.com
Catalog excerpts

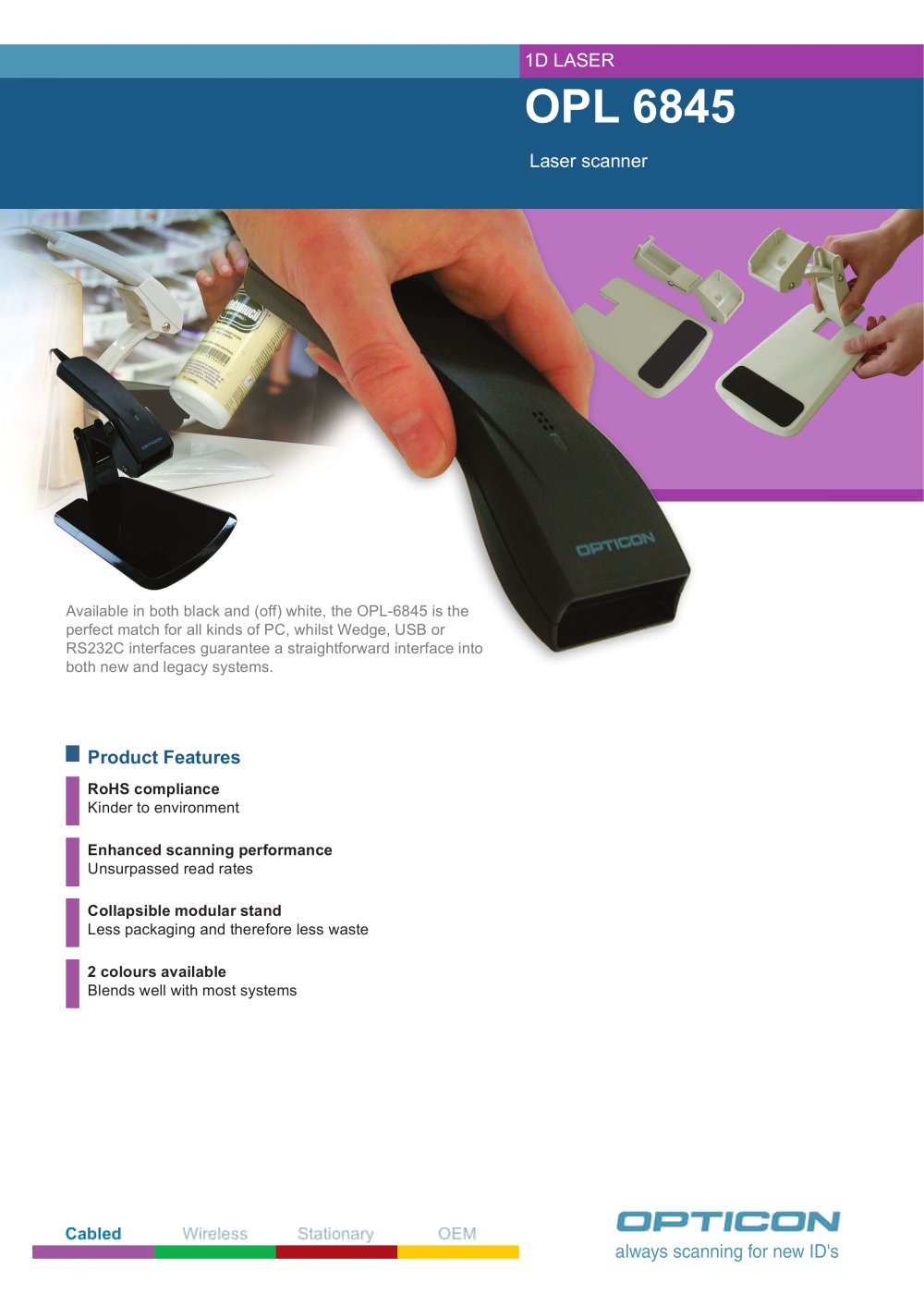

Available in both black and (off) white, the OPL-6845 is the perfect match for all kinds of PC, whilst Wedge, USB or RS232C interfaces guarantee a straightforward interface into both new and legacy systems. > RoHS compliance Kinder to environment Enhanced scanning performance Unsurpassed read rates Collapsible modular stand Less packaging and therefore less waste 2 colours available Blends well with most systems >
Open the catalog to page 1
Copyright Opticon. All rights reserved. This information is subject to change without prior notice.B_OPL6845_003 - The Netherlands: Hoofddorp - Taiwan: Taipei Opticon Sensors Europe B.V.European headquartersOpaallaan 352132 XV Hoofddorp The Netherlandsphone: +31 (0)23-5692700 fax: +31 (0)23-5638266email: [email protected]: www.opticon.com - France: ISSY Les Moulineaux CEDEX - P.R.China: Shanghai - Germany: Dietzenbach - Australia: Kariong - Italy: Castel Maggiore (BO) - Spain: Valencia - Sweden: Jڤrflla - United Kingdom: Luton, Bedfordshire - U.S.A.: Orangeburg, NY - Bellevue, WA - Japan:...
