OPI 4002 Imager Scanner
1 / 2 PagesView full catalog

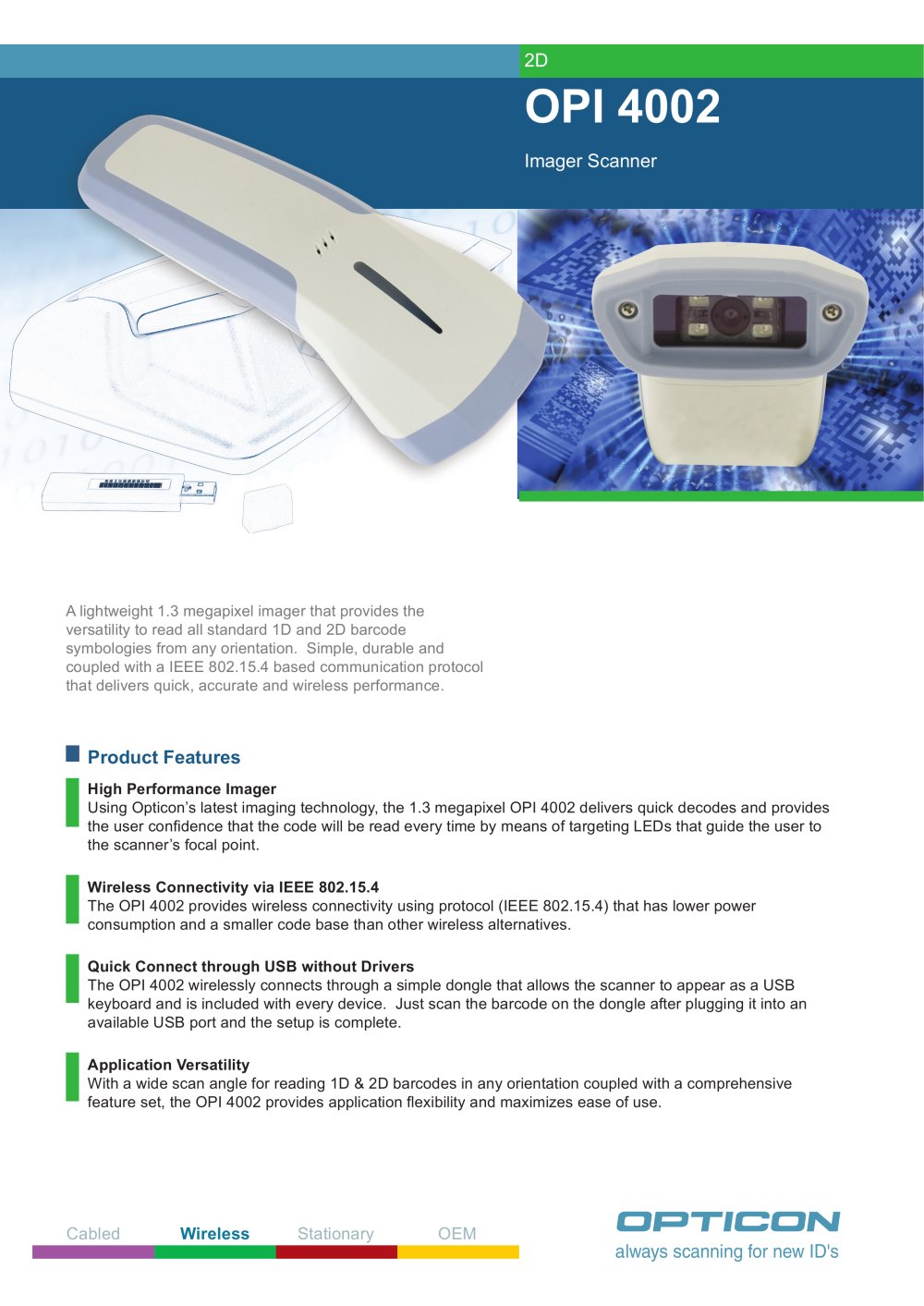

OPI 4002 Imager Scanner
Product catalog summary
Overview: The OPI 4002 is a 1.3 megapixel imager designed for reading all standard 1D and 2D barcode symbologies from any orientation. It features wireless connectivity via IEEE 802.15.4, offering low power consumption and efficient performance.
Product Features:
- High Performance Imager: Utilizes Opticon’s imaging technology for quick decodes with targeting LEDs for precise scanning.
- Wireless Connectivity: Employs IEEE 802.15.4 protocol for efficient wireless communication.
- USB Quick Connect: Connects via a USB dongle, appearing as a USB keyboard without needing drivers.
- Application Versatility: Wide scan angle supports reading in any orientation, enhancing usability.
Specifications:
- Electrical: Lithium-Ion battery with 30-hour operation time and 3-hour charging time.
- Optical: CMOS area sensor with a scan rate of up to 30 fps and various reading angles.
- Communication: IEEE 802.15.4 interface with a 30-meter range.
- Environmental: Operates between -0 to 40 °C with humidity tolerance of 5-90%.
- Physical: Dimensions are 59 x 43 x 164 mm, weighing approximately 125 g.
- Regulatory Compliance: CE, FCC, VCCI, RoHS certified.
Supported Symbologies: Includes a wide range of 1D and 2D codes such as Code 39, PDF417, QR Code, and more.
Environmental and Durability: Designed to withstand drops from 1.5 meters and is protected against dust and moisture (IP 42).
Contact Information: Opticon Sensors Europe B.V., Hoofddorp, The Netherlands. Phone: +31 (0)23-5692700, Email: [email protected]
