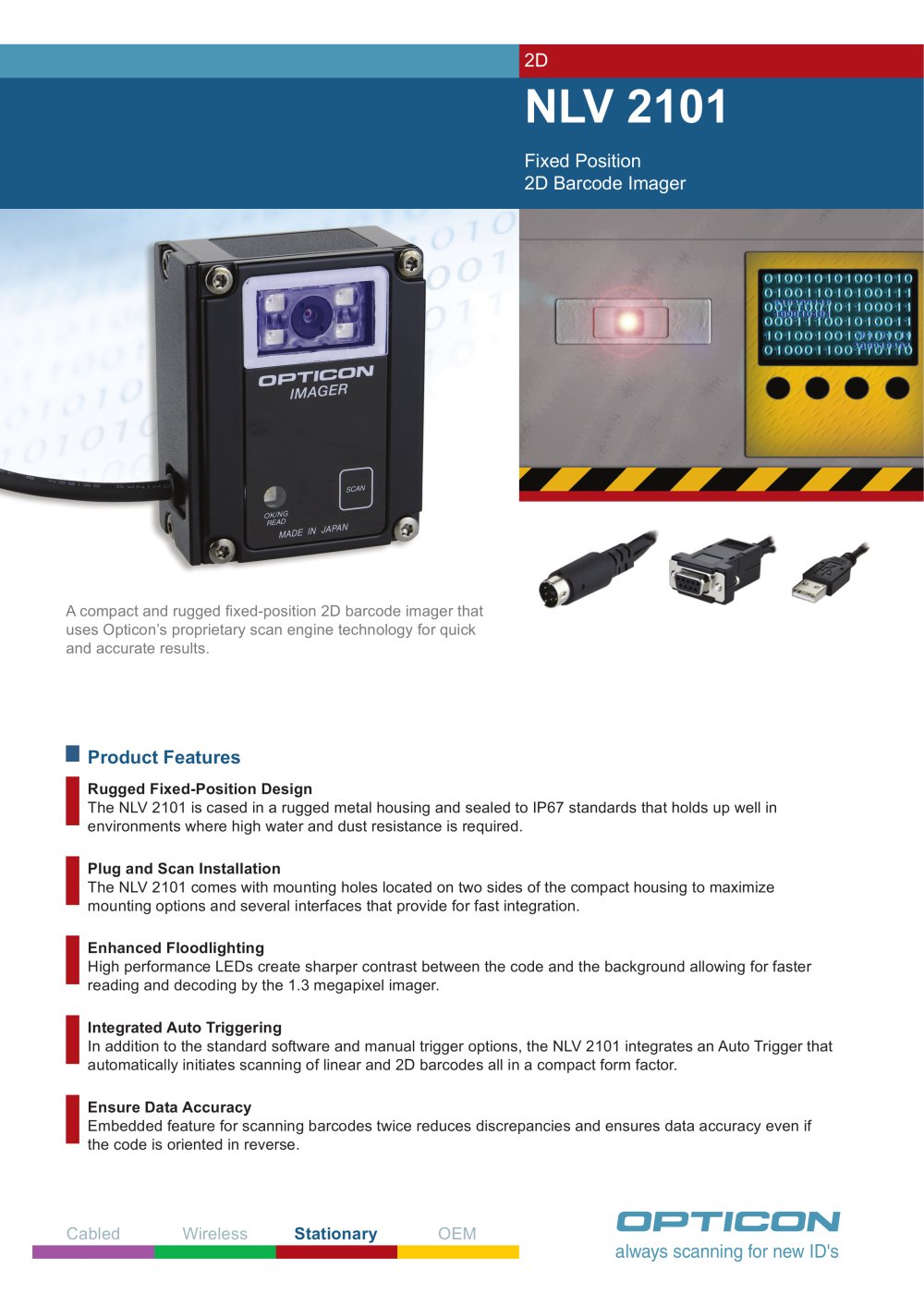

NLV 2101 Fixed Position 2D Barcode Imager
1 / 2 PagesView full catalog
NLV 2101 Fixed Position 2D Barcode Imager
Product catalog summary
Product Overview
The NLV 2101 is a compact and rugged fixed-position 2D barcode imager designed for quick and accurate scanning using Opticon’s proprietary technology. It is suitable for environments requiring high water and dust resistance, adhering to IP67 standards.
Key Features
Specifications
Contact Information
Opticon Sensors Europe B.V., Opaallaan 35, 2132 XV Hoofddorp, The Netherlands. Phone: +31 (0)23-5692700, Email: [email protected], Website: www.opticon.com
The NLV 2101 is a compact and rugged fixed-position 2D barcode imager designed for quick and accurate scanning using Opticon’s proprietary technology. It is suitable for environments requiring high water and dust resistance, adhering to IP67 standards.
Key Features
- Rugged Design: Encased in a metal housing, the NLV 2101 is built to withstand harsh conditions.
- Easy Installation: Features mounting holes on two sides and multiple interfaces for fast integration.
- Enhanced Floodlighting: High-performance LEDs improve contrast for faster reading.
- Auto Triggering: Automatically initiates scanning of linear and 2D barcodes.
- Data Accuracy: Scans barcodes twice to reduce discrepancies.
Specifications
- Electrical: Requires 5 V ± 10% voltage, with a maximum current consumption of 330 mA.
- Optical: Utilizes CMOS area sensor with a scan rate of up to 30 fps. Supports various barcode symbologies including 1D and 2D codes.
- Environmental: Operates between 0 to 45 ºC and can be stored between -20 to 60 ºC. It is resistant to ambient light and antistatic electricity.
- Physical: Dimensions are 46 x 58 x 24.5 mm, weighing approximately 120 g.
- Regulatory Compliance: Meets CE, FCC, VCCI, and RoHS standards.
Contact Information
Opticon Sensors Europe B.V., Opaallaan 35, 2132 XV Hoofddorp, The Netherlands. Phone: +31 (0)23-5692700, Email: [email protected], Website: www.opticon.com
