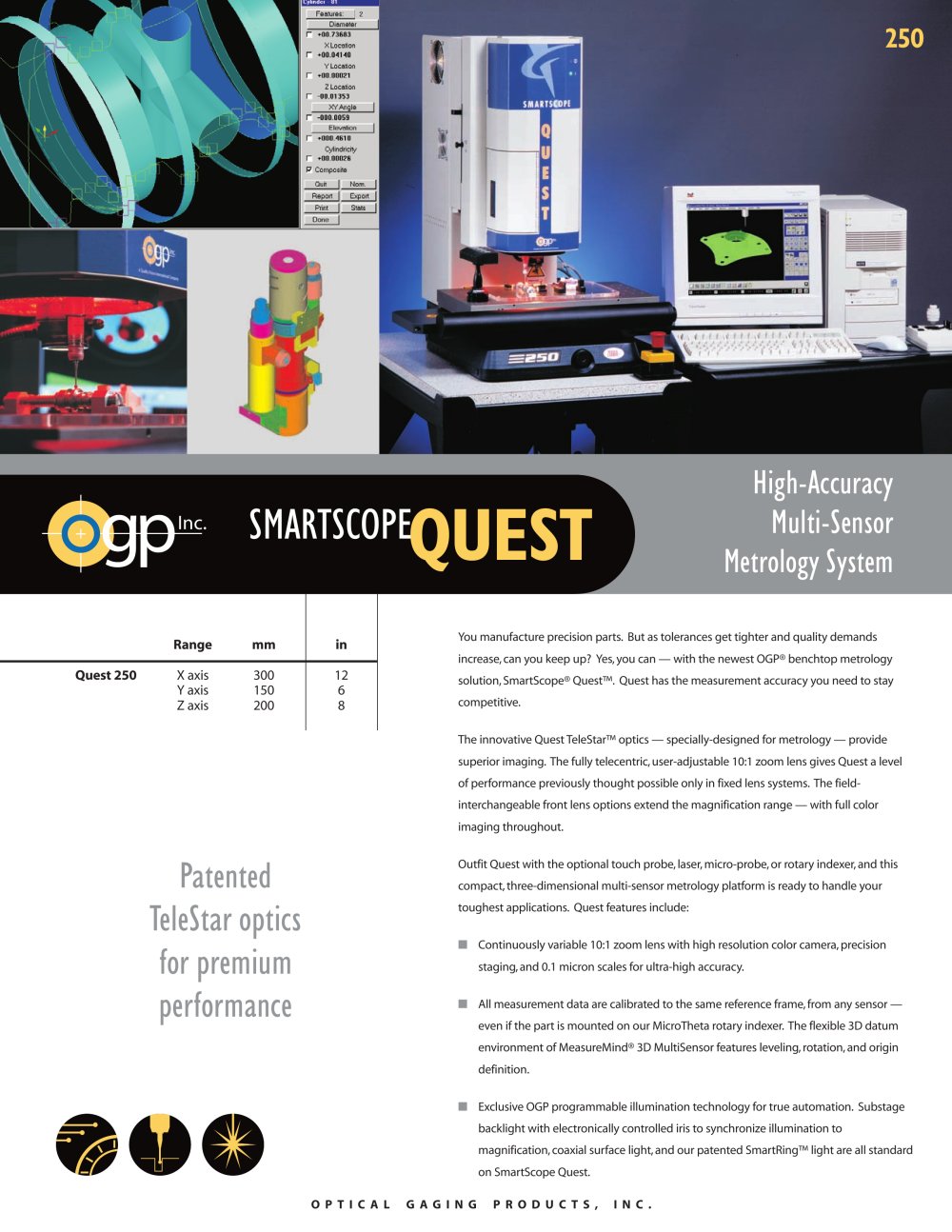

Overview: The document introduces the SmartScope Quest, a high-accuracy multi-sensor metrology system designed for precision part manufacturing. It highlights the system's ability to meet tight tolerances and quality demands with advanced optics and multi-sensor capabilities.

Specifications: The SmartScope Quest features a measuring range of 300 x 150 x 200 mm, with a resolution of 0.10 µm. It includes a continuously variable 10:1 zoom lens, high-resolution color camera, and precision staging. The system is equipped with a DC servo motor drive and a hardcoat anodized worktable with a 25 kg load capacity.

Optics and Imaging: The Quest utilizes patented TeleStar optics for superior imaging, offering a fully telecentric, user-adjustable zoom lens. It supports field-interchangeable front lens options to extend magnification range, maintaining full color imaging.

Multi-Sensor Options: The system can be outfitted with optional touch probes, lasers, micro-probes, and rotary indexers, enhancing its capability to handle complex applications. All measurement data are calibrated to a single reference frame, even with the use of a MicroTheta rotary indexer.

Illumination and Image Processing: The Quest includes programmable illumination technology with a substage backlight, coaxial surface light, and patented SmartRing light. It supports 256 level grayscale processing with up to 50:1 sub-pixel resolution.

Software and Computing: The system operates on Microsoft Windows 2000 and includes software like MeasureMind 3D MultiSensor, MeasureFit Plus, and SmartReport Plus. It requires a minimum configuration of a Pentium IV processor, 512 MB RAM, and a 40 GB hard drive.

Environmental and Operational Conditions: The rated environment for the system is 18-22°C with 30-80% humidity. It can operate in temperatures ranging from 15-30°C.

Accuracy and Warranty: The system offers high accuracy with specific metrics for X, Y, and Z axes. It comes with a one-year on-site warranty and options for fixtures, calibration artifacts, and service contracts.

Contact Information: The document provides contact details for Optical Gaging Products Inc., including their headquarters and various technology centers worldwide.
