V-Grooved Pulleys
1 / 1 PageView full catalog
V-Grooved Pulleys
Product catalog summary
Specifications for Taper Bushes:
- Section Orientation and Cross Section Ribs: The document lists various sections such as SPZ, SPA, SPB, and SPC with corresponding dimensions ranging from 50 mm to 1250 mm and rib counts from 1 to 10.
- Belt Width and Teeth: Sections L, H, and XH are specified with belt widths from 12.7 mm to 101.6 mm and teeth counts from 16 to 120.
Specifications for Cylindrical Bores:
- Section Orientation and Cross Section Ribs: Sections SPZ, SPA, SPB, and SPC are detailed with dimensions from 45 mm to 630 mm and rib counts from 1 to 6.
- Belt Width and Teeth: Sections XL, L, H, and XH are specified with belt widths from 6.4 mm to 101.6 mm and teeth counts from 10 to 120.
Standards and Recommendations:
- V-Grooved Pulleys: These are in accordance with DIN 2211 standards and are compatible with taper bushes.
- Standard Timing Belt Pulleys: These are also compatible with taper bushes.
See more
Catalog excerpts

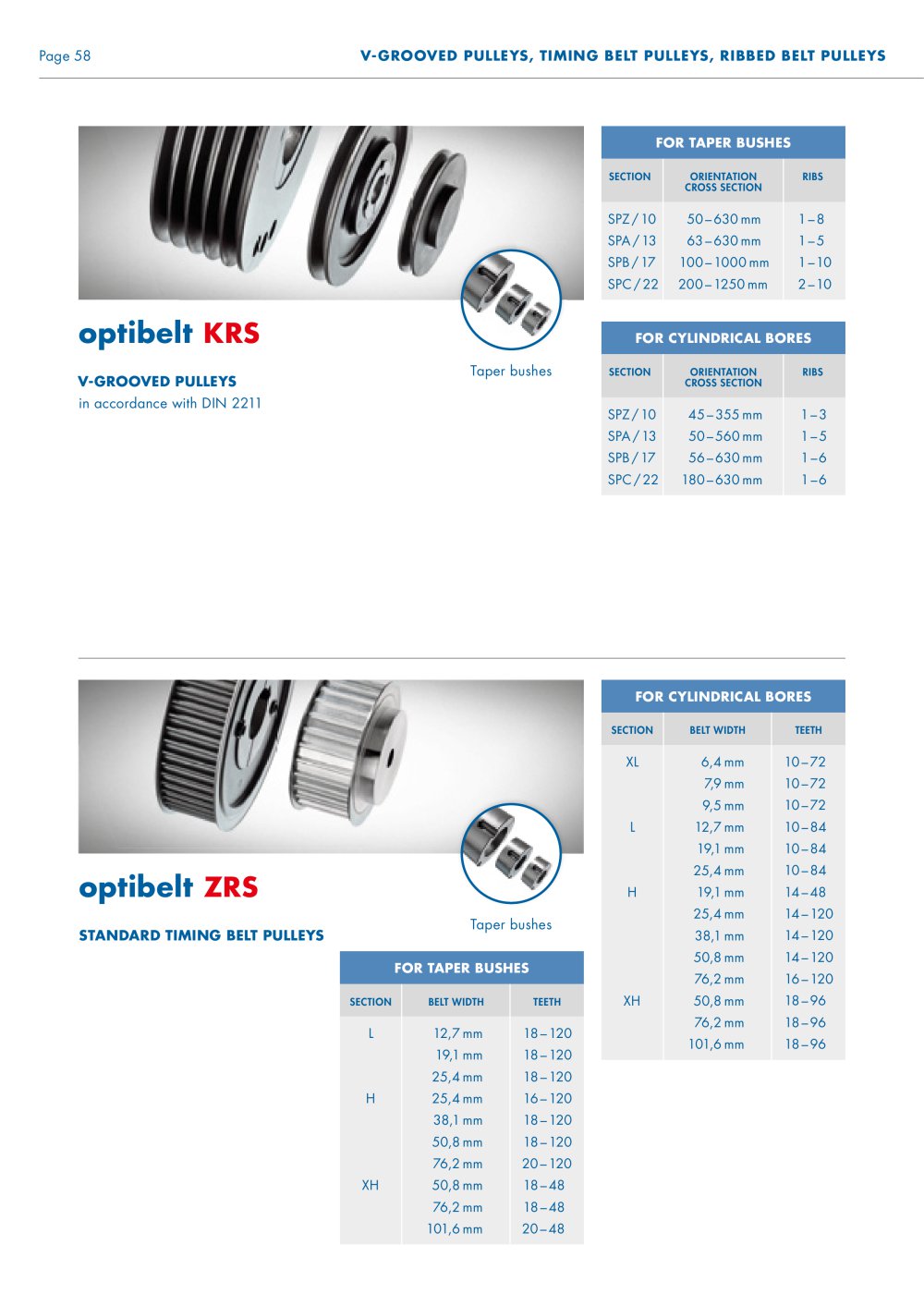

V-gROOVED PULLEYS, Timing BELT PULLEYS, RiBBED BELT PULLEYS fOR TaPER BUSHES sEcTIOn OrIEnTaTIOn crOss sEcTIOn taper bushes OrIEnTaTIOn crOss sEcTIOn V-gROOVED PULLEYS fOR CYLinDRiCaL BORES sEcTIOn BELT wIdTH BELT wIdTH taper bushes STanDaRD Timing BELT PULLEYS
Open the catalog to page 1All Optibelt catalogs and technical brochures
