optibelt ALPHA

Product catalog summary
Overview: The Optibelt ALPHA timing belts are designed for a variety of applications including light engineering, data processing, office equipment, gardening equipment, machine tools, medical technology, textile machines, and toys. These belts are known for their durability and resistance to various environmental factors.
Specifications: The belts are available in imperial (inch) sizes and are made with low stretch steel tension cords that offer high reverse bending strength. They are resistant to abrasion, oil, acids, and alkaline solutions.
Features:
  • Timing and double timing belts
  • Economic drive
  • High resistance to teeth shearing
  • Compatibility with ISO 5296 pulleys
Applications: The belts are suitable for use in cameras, plotters, printers, coin dispensers, scarifiers, aerators, feed drive systems, sample transport, fabric feed, and model aircraft.
Profiles and Dimensions: The ALPHA profiles include XL and L with steel wire cords, and MXL with Aramid tension cords. They range from 2.4 to 67 inches in size.
Pulleys: The belts can be used with all standard pulleys, with special pulleys available upon request.
See more

Catalog excerpts

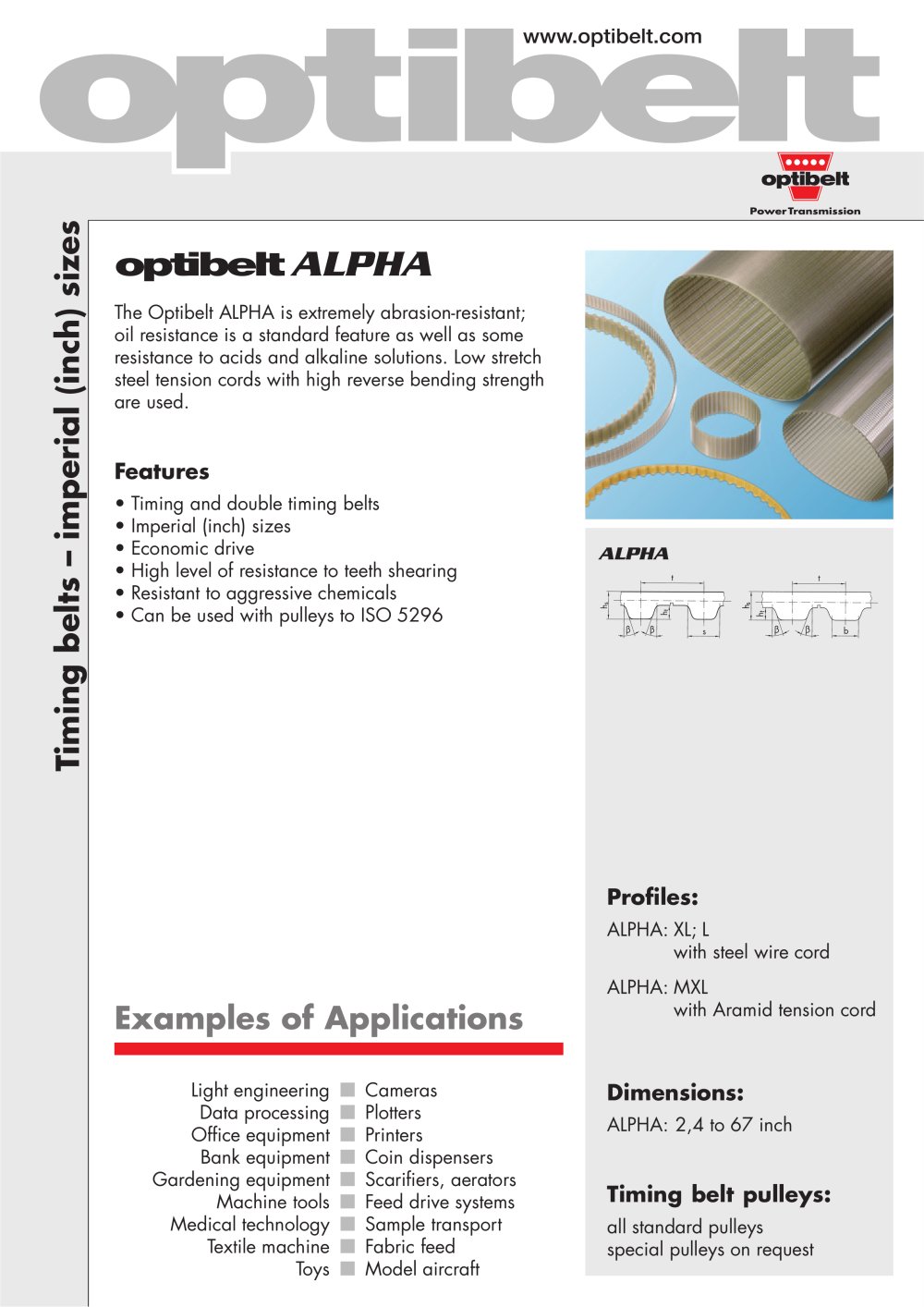

optibelt ALPHA-1

Timing belts . imperial (inch) sizes optibelt ALPHA Light engineering Cameras Data processing Plotters OfÞ ce equipment Printers Bank equipment Coin dispensers Gardening equipment ScariÞ ers, aerators Machine tools Feed drive systems Medical technology Sample transport Textile machine Fabric feed Toys Model aircraft The Optibelt ALPHA is extremely abrasion-resistant; oil resistance is a standard feature as well as some resistance to acids and alkaline solutions. Low stretch steel tension cords with high reverse bending strength are used. Features • Timing and double timing belts • Imperial (inch) sizes • Economic drive • High level of resistance to teeth shearing • Resistant to aggressive chemicals • Can be used with pulleys to ISO 5296 Examples of Applications ProÞ les: ALPHA: XL; L with steel wire cord ALPHA: MXL with Aramid tension cord Dimensions: ALPHA: 2,4 to 67 inch Timing belt pulleys: all standard pulleys special pulleys on request ALPHA

 Open the catalog to page 1
