Optibelt ALPHA ATC

Product catalog summary

Overview: The document discusses the Optibelt ALPHA ATC polyurethane timing belts equipped with a flexible cleat system. This system allows for the customized positioning of cleats on-site, facilitating quick and easy installation.

Specifications: The ATC system enables users to install screw-on cleats via any tooth on-site. The system includes ATC inserts that fit into cut-outs in the teeth of the Optibelt ALPHA V timing belt, profile ATC10. These inserts allow for the direct attachment of high-precision metal workpiece carriers without the need for welded cleats.

Advantages and Characteristics:

Customizable cleat positioning on-site.
Detachable and twist-proof bar/cleat connection.
High stability through a bar/clip mechanism.
Compatible connection size for clips and cleats.
Quick installation and removal for cleat exchange or shape change.
Use of existing cleats is possible.
Quick punching of the belt surface with ATC tools.

Dimensions and Compatibility: The belts are available in widths of 50, 100, and 150 mm, with further dimensions available on demand. They are compatible with all standard timing belt pulleys, with special pulleys available upon request.

Applications: The system is suitable for various machines, including die carriers, parallel or synchronous conveyors, inclined conveyors, and indexing conveyors. It can accommodate cleats made from materials other than polyurethane and is ideal for frequently changing goods in terms of shape and size.

Catalog excerpts

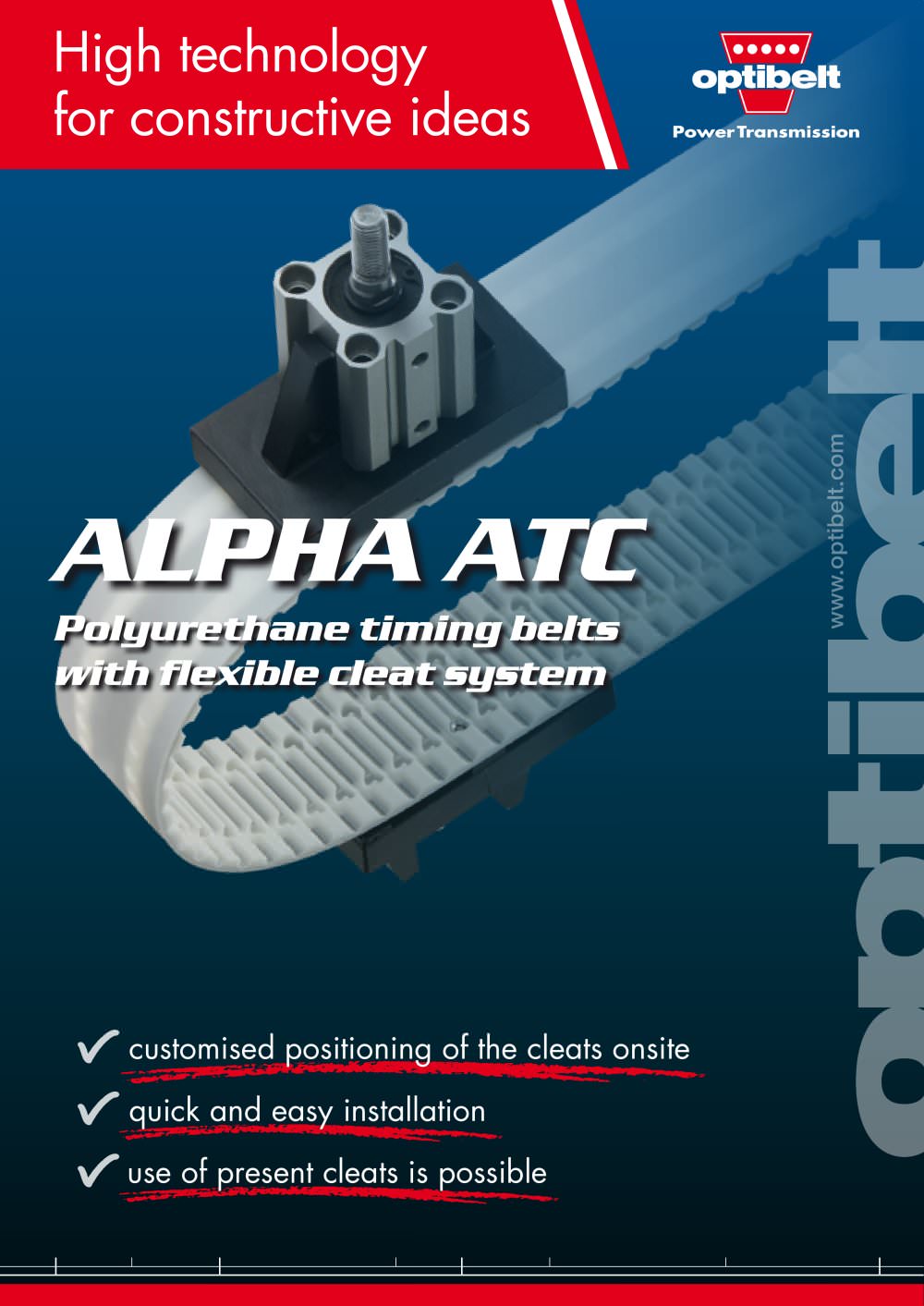

High technology for constructive ideas ALPHA ATC Polyurethane timing belts with flexible cleat system c ustomised positioning of the cleats onsite q uick and easy installation u se of present cleats is possible

Open the catalog to page 1

Users of the ATC system are able to install screw-on cleats quickly and easily via any tooth on-site. Using the ATC system, ATC inserts are placed in the a pplicable cut-out in the tooth in order to screw the screw-on cleat in place. These cut-outs are standard features for all teeth of the Optibelt ALPHA V timing belt in profile ATC10. ATC inserts allow for the direct screwing-on of e. g. high-precision metal workpiece carriers without w elded, specially manufactured cleats with inserts. Screw-on cleats are able to transmit more power than permanent cleats. Furthermore, the minimum pulley...

Open the catalog to page 2
