Product Overview

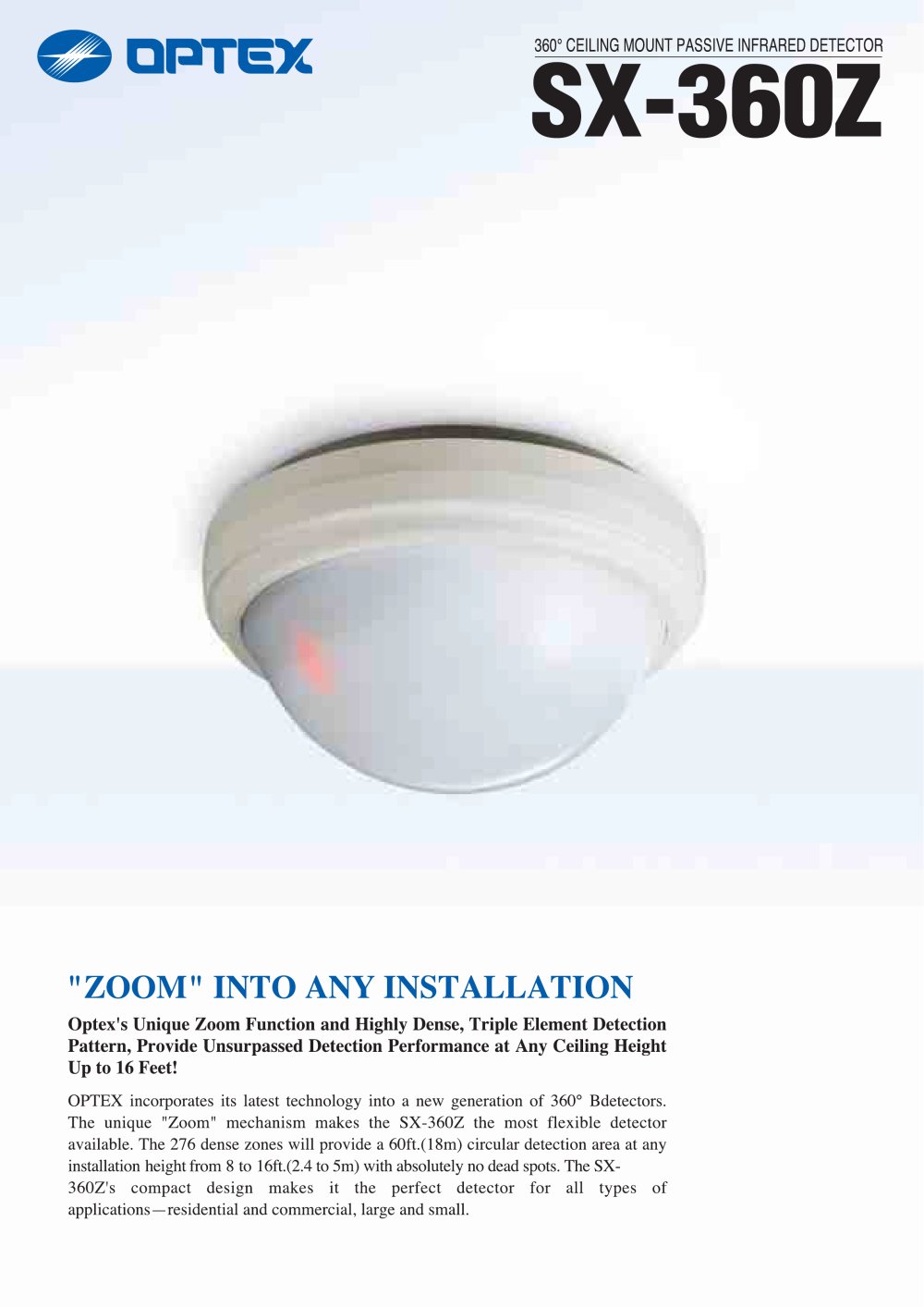

The document describes the SX-360Z, a 360° ceiling mount Passive Infrared (PIR) detector manufactured by OPTEX CO., LTD. It is designed for high-density detection environments with advanced features to reduce false alarms.

Main Features

• Highly Dense Detection: The detector is optimized for environments requiring dense coverage, ensuring reliable motion detection.
• Zoom Function / Pattern Adjustment: The device includes a zoom feature allowing adjustment of detection patterns to suit different installation needs and coverage areas.
• Patented Multi-focus Lens: Utilizes a patented lens technology to enhance detection accuracy and range.
• False Alarm Protection: Incorporates advanced algorithms and sensor technology to minimize false alarms caused by environmental factors.
• Other Features: Additional unspecified features enhance performance and usability.

Detection Patterns and Coverage
The detector provides a 360° coverage pattern suitable for ceiling mounting. The zoom function allows selection among multiple detection ranges and patterns, labeled as Zoom positions "A", "C", and "E". These positions correspond to different detection distances and sensitivity settings, enabling customization:

• Zoom "A" Position: Detection range approximately 2.4m to 4.8m (8 to 16 ft)
• Zoom "C" Position: Detection range approximately 3.0m to 6.0m (10 to 20 ft)
• Zoom "E" Position: Detection range approximately 3.6m to 9.0m (12 to 30 ft)

These adjustable ranges allow the detector to be tailored for various room sizes and security requirements.

Specifications
The document includes technical specifications such as detection distances, mounting dimensions, and sensor characteristics. Although exact numeric details are partially obscured, the key parameters include:

• Detection distance up to 9 meters (30 feet) depending on zoom setting
• Ceiling mount design with compact dimensions
• Multi-zone detection coverage for comprehensive area monitoring

Installation and Adjustment Recommendations
The zoom function is critical for pattern adjustment and should be configured according to the specific environment to optimize detection and minimize false alarms. Proper installation height and positioning are implied to be important for effective coverage.

Summary
The SX-360Z PIR detector by OPTEX is a versatile, ceiling-mounted security sensor offering 360° coverage with adjustable detection patterns via a zoom function. Its patented multi-focus lens and false alarm protection features make it suitable for high-density and sensitive security environments. The adjustable detection ranges provide flexibility for various installation scenarios, enhancing security system effectiveness.
