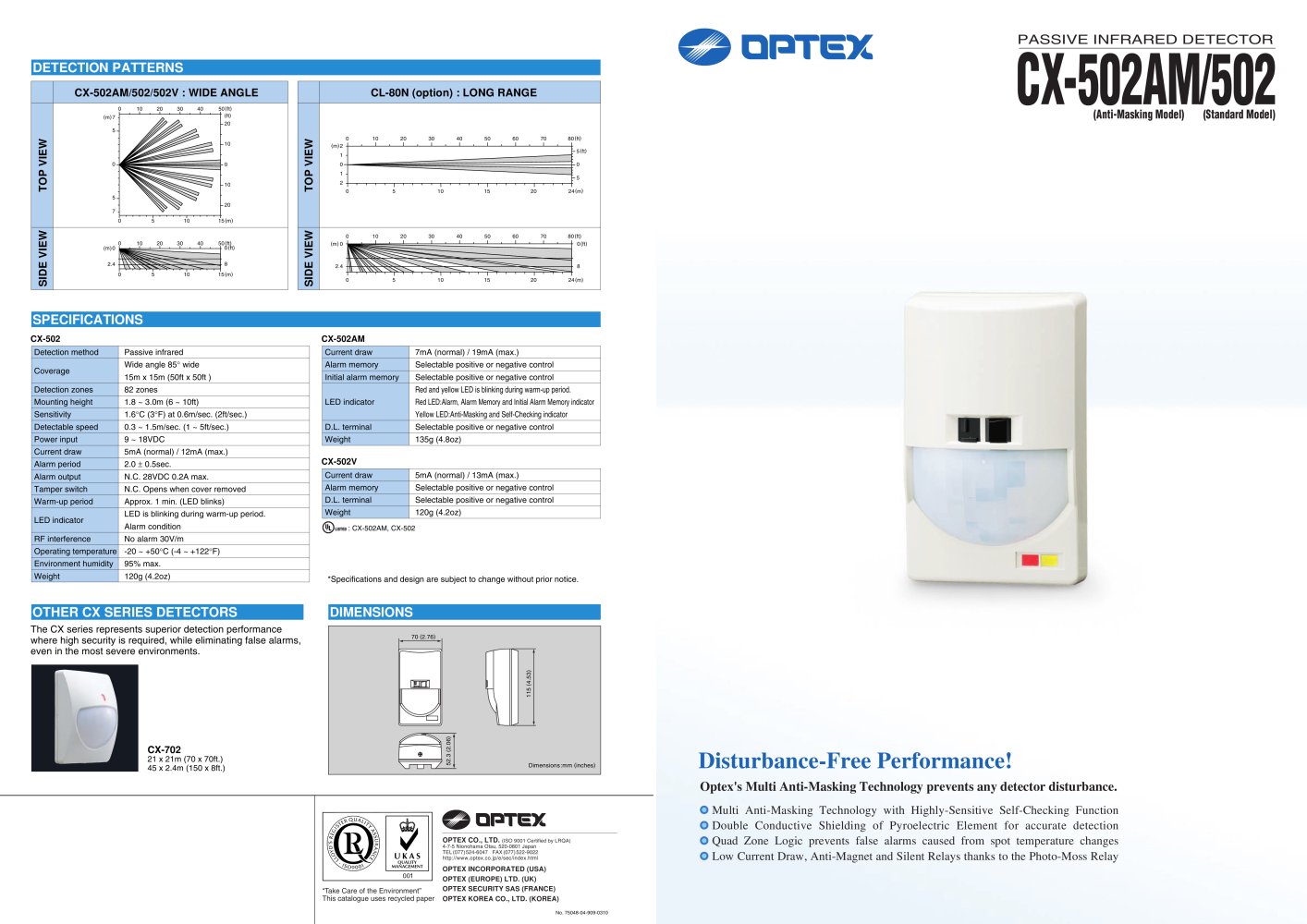

Detection Patterns and Specifications
The CX series detectors are designed for high-security environments, offering superior detection performance while minimizing false alarms. Key specifications include passive infrared detection, wide-angle coverage of 85° with a range of 15m x 15m, and 82 detection zones. The detectors operate at a mounting height of 1.8 to 3.0 meters and are sensitive to temperature changes of 1.6°C at a speed of 0.6m/sec. They require a power input of 9 to 18VDC and have a current draw of 5mA in normal conditions, increasing to 12mA at maximum.

Features and Technology
The CX-502AM model incorporates Multi Anti-Masking Technology, which prevents disturbances by detecting variations in optical expansions and directions. This model also features a self-checking function that operates every 5 hours to ensure proper functionality. The Initial Alarm Memory function indicates the first activated detector in a loop, and the LED Remote Control Terminal is available for specific models.

Advanced Detection Capabilities
The Quad Zone Logic enhances detection accuracy by creating high vertical zone density, capturing entire body mass and detecting small temperature contrasts. Temperature Compensation adjusts sensitivity based on environmental conditions, maintaining high false alarm protection. Sealed optics prevent false alarms caused by drafts or insects.

Installation and Options
The CX series offers easy installation with features like easy wiring knockout and visible LED indicators. Various mounting options are available, including wall and ceiling brackets. The detectors are protected against RFI and visible light, and they have low current draw, reducing energy consumption.

Models and Variants
The CX-502 series includes different models such as the CX-502AM with anti-masking and self-checking features, the standard CX-502, and the CX-502V with alarm memory. Optional accessories include various mounting brackets and a long-range lens.
