PT-7LD
1 / 2 PagesView full catalog
PT-7LD
Product catalog summary
Product Overview: The THERMO-HUNTER PT-7LD is a portable, non-contact thermometer designed for practical applications in various fields. It features a laser diode with a maximum power of 1.0mW and a wavelength of 630-670nm, classified as a Class 2 laser product.
Key Features:
- Waterproof with an IP67 rating, ensuring protection against dust and immersion in water up to 1m for 30 minutes.
- Equipped with a Hi/Lo alarm system using a buzzer and LED indicators.
- 99-point data memory for storing readings.
- Measuring range from -30.0 to 200.0°C with a resolution of 0.1°C/°F and a quick response time of 0.7 seconds.
- Includes a laser marker and two-mode emissivity settings (0.95 for hot and 0.85 for cold).
- Backlight for easy reading in low-light conditions.
Specifications:
- Display range: -40.0 to 220.0°C.
- Accuracy varies with temperature range: ±3.0°C below 0.0°C, ±1.0°C from 0.1 to 100.0°C, and ±2.0°C from 100.1 to 200.0°C.
- Repeatability of ±1.0°C of the reading value.
- Powered by a 9V alkaline battery with a life of 15 hours under maximum load.
- Operating temperature range: 0 to 50°C, with storage temperatures from -10 to 60°C.
- Constructed from antibacterial ABS material, weighing 200g including the battery.
Usage and Safety Warnings:
- Avoid direct eye exposure to the laser beam to prevent eye injury.
- Not suitable for medical purposes as it is not a clinical thermometer.
- Ensure the thermometer is kept away from water, strong electromagnetic sources, direct sunlight, dust, high temperatures, and high humidity to avoid damage or incorrect measurements.
- For accurate readings on shiny objects, apply black tape or paint to the surface to adjust for emissivity differences.
Additional Information: Calibration certificates are available, ensuring conformity to specifications and traceability to the Japan Electric Meters Inspection Corporation (JEMIC).
See more
Catalog excerpts

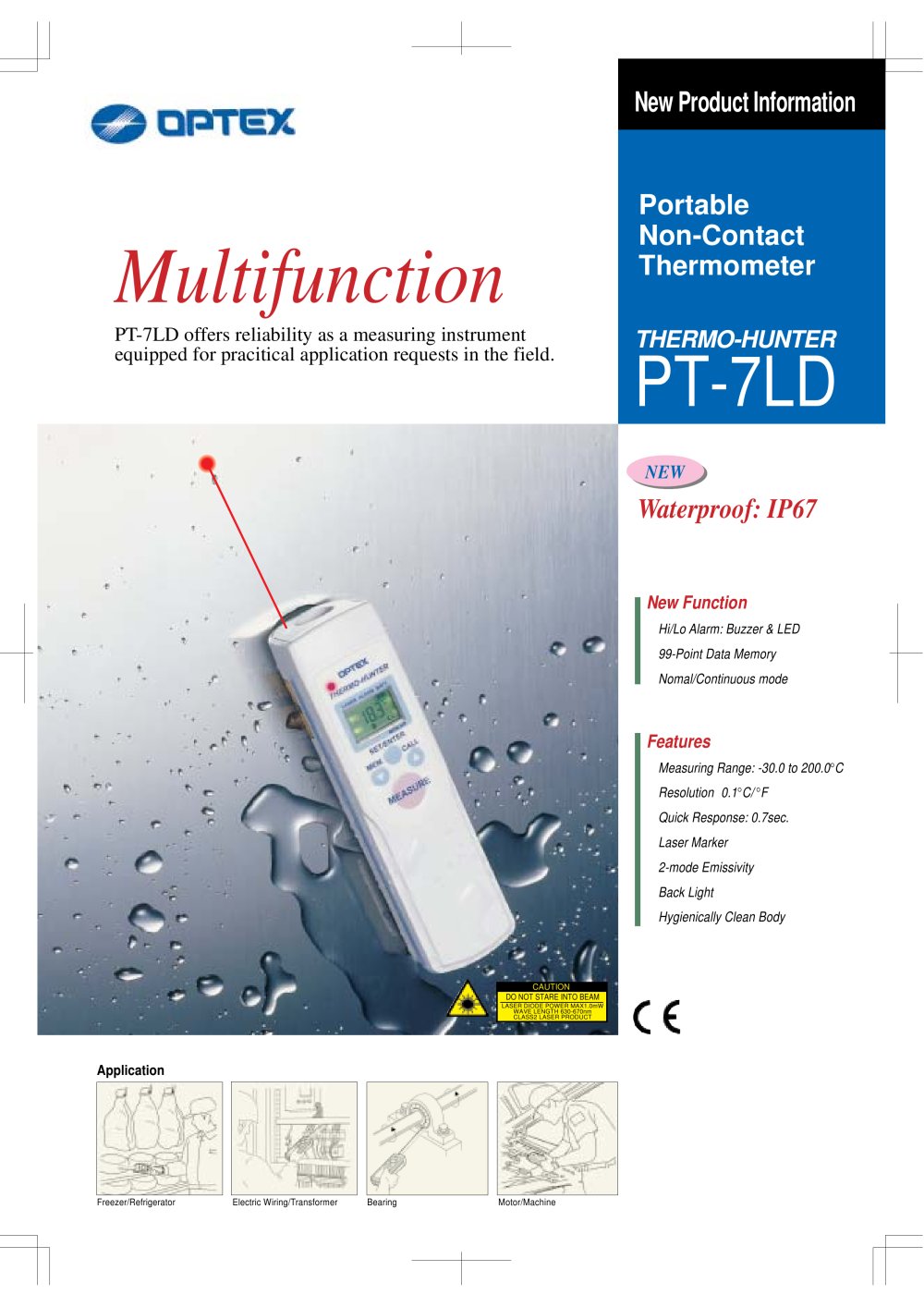

˔ Hi/Lo Alarm: Buzzer & LED ˔ 99-Point Data Memory ˔ Nomal/Continuous mode > ˔ Measuring Range: -30.0 to 200.0 C Ћ Resolution ԉ 0.1 ߰ C/ F Ћ Quick Response: 0.7sec. ԋ Laser Marker ԋ 2-mode Emissivity ԋ Back Light ԋ Hygienically Clean Body > CAUTION DO NOT STARE INTO BEAM ԉ LASER DIODE POWER MAX1.0mWWAVE LENGTH 630-670nm CLASS2 LASER PRODUCT ى Application > Freezer/RefrigeratorElectric Wiring/TransformerBearingMotor/Machine size="-1">
