Built-in 2 BS Series

Product catalog summary

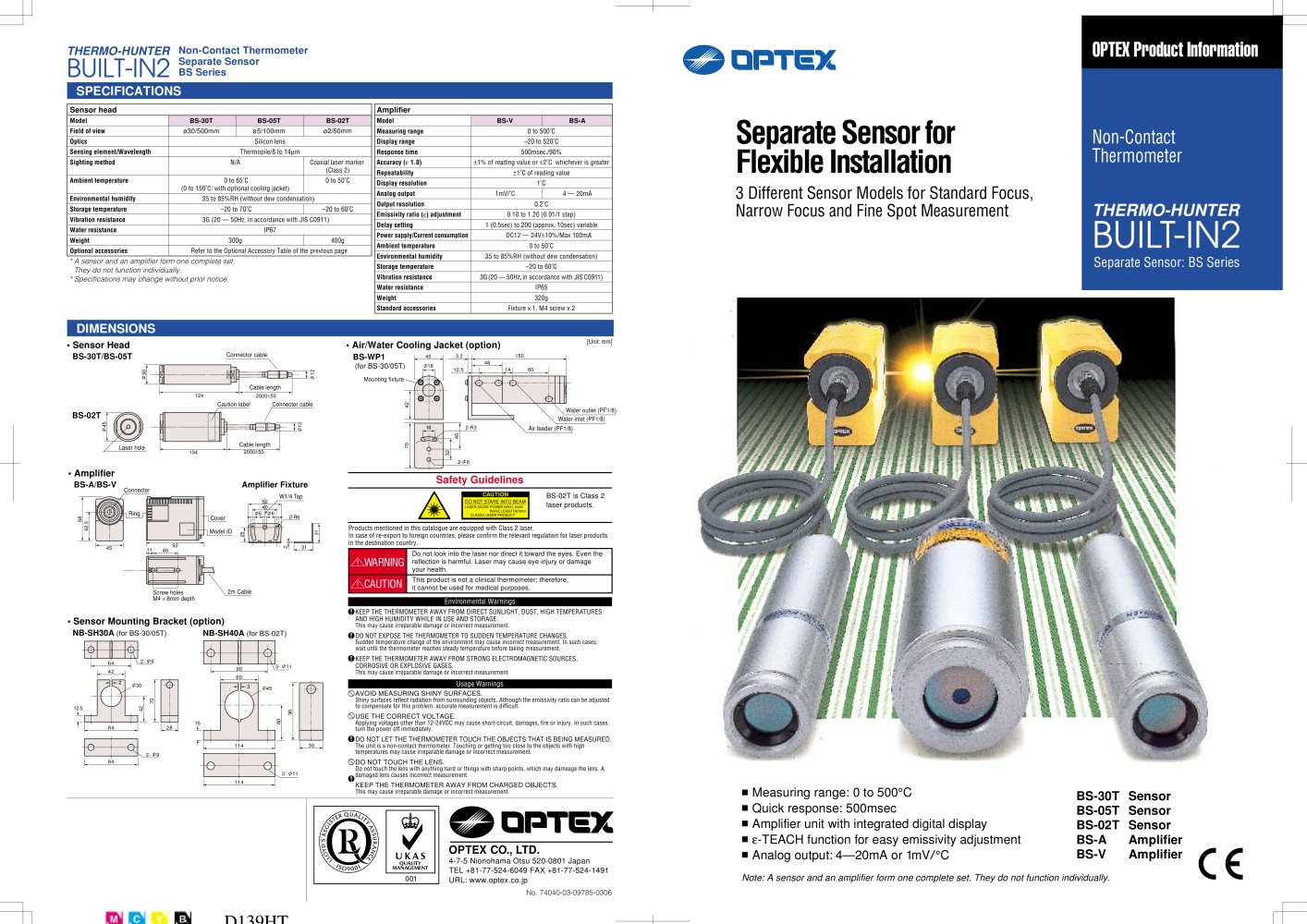

Product Overview: The OPTEX THERMO-HUNTER is a non-contact thermometer designed for flexible installation with separate sensor and amplifier units. It offers three sensor models for different focus measurements: Standard Focus (BS-30T), Narrow Focus (BS-05T), and Fine Spot (BS-02T).

Specifications:

Measuring Range: 0 to 500°C
Response Time: 500ms
Emissivity Adjustment: ε-TEACH function for easy adjustment
Analog Output: 4—20mA or 1mV/°C
Water Resistance: IP67 for sensors, IP65 for amplifiers

Sensor Details:

BS-30T: Field of view ø30/500mm, ambient temperature 0 to 65°C
BS-05T: Field of view ø5/100mm, ambient temperature 0 to 50°C
BS-02T: Field of view ø2/50mm, Class 2 laser product

Amplifier Details:

Models: BS-V and BS-A
Display Range: –20 to 520°C
Accuracy: ±1% of reading value or ±2°C
Power Supply: DC12—24V±10%

Safety and Usage Guidelines:

Avoid direct eye exposure to the laser beam.
Do not measure shiny surfaces without adjusting emissivity.
Ensure correct voltage to prevent damage.
Keep away from direct sunlight, dust, and electromagnetic sources.

Environmental Considerations:

Use air or water cooling jackets for high ambient temperatures.
Maintain stable environmental conditions for accurate measurements.

Optional Accessories:

Air/Water Cooling Jacket
Sensor Mounting Brackets
Extension Cables

Applications: Suitable for temperature monitoring in various industrial processes such as rubber forming, printed board heating checks, and more.

Catalog excerpts

Spot Dia. Spot Dia. Spot Dia. 16 23304560 250 500 750 1000 0 0 0 Distance: Sensor to object Distance: Sensor to object Distance: Sensor to object Temperature monitoring of a printing roller Integrated laser marker (BS-30T/BS-05T) Just as the 2m cable that comes with all sensor models, this 8m cable can also withstand heat up to 150˚C. 10m cable length gives enough room for all the twists and turns to make installation easier. > Use of an air purge/water cooling jacket significantly improves sensors ability to operate in various environment. > with air cooling 50100 Do not stare into beam.Power...
