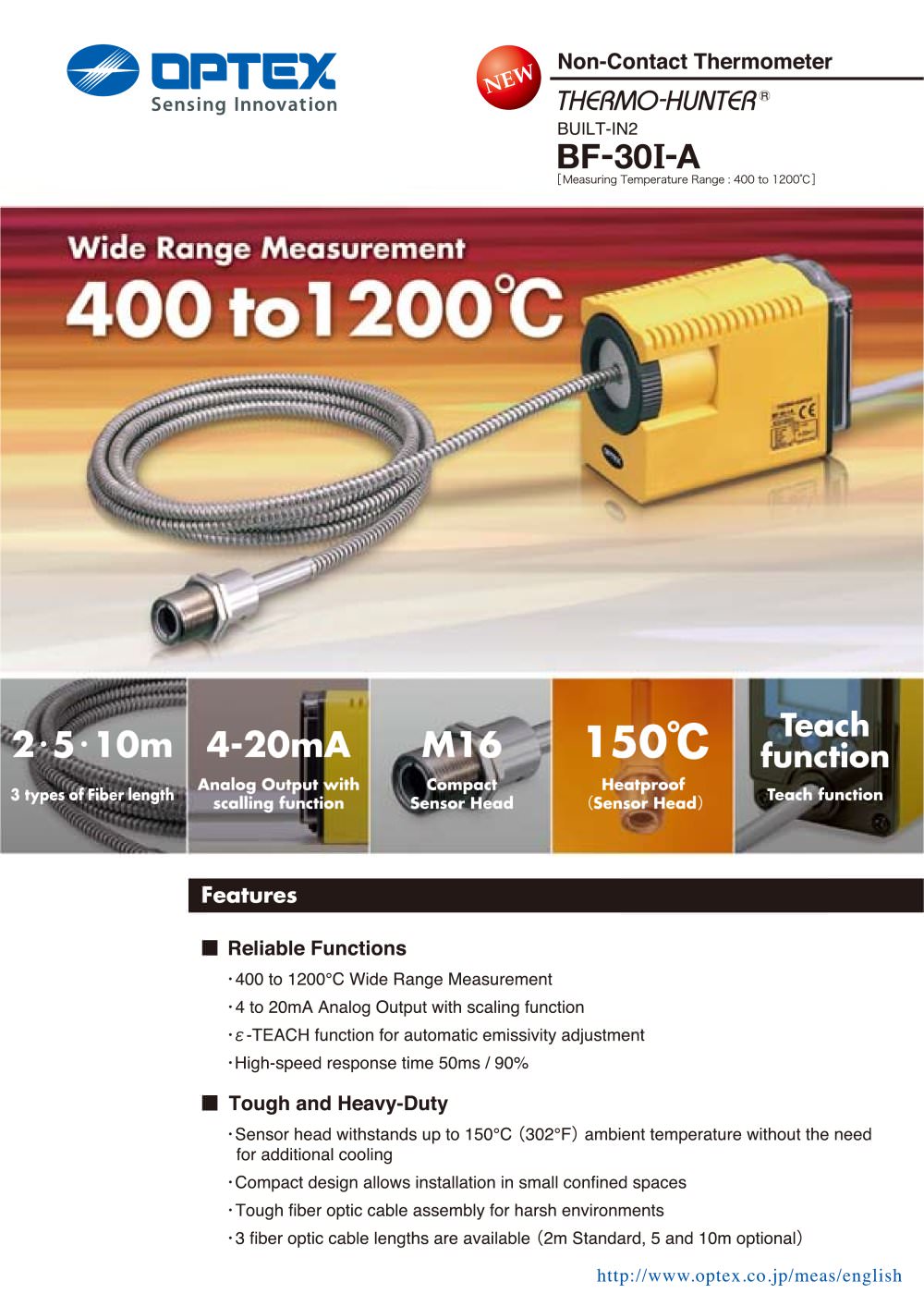

Sensing Innovation Non-Contact Thermometer [Measuring Temperature Range : 400 to 1200°C] Wide Range Measurement Lnalog Output with scalling function (Sensor Head) Teach function Reliable Functions •400 to 1200°C Wide Range Measurement •4 to 20mA Analog Output with scaling function •e-TEACH function for automatic emissivity adjustment •High-speed response time 50ms /90% •Sensor head withstands up to 150°C (302°F) ambient temperature without the need •Compact design allows installation in small confined spaces •Tough fiber optic cable assembly for harsh environments •3 fiber optic cable lengths are available (2m Standard, 5 and 10m optional) http ://www.optex .co .jp/meas/english
Open the catalog to page 1Main Unit (without lens) Fiber length Attachment screw holes without lens ^Calibration at the factory is done with BFL-30 standard lens. The optical resolution values stated in "Field of View" are at minimum 90% energy. The size of measuring object should be sufficiently larger than the field of view (spot size) shown in the above illustration. This product is made from Glassfiber and extremely sensitive to shock and bending. The followings are the instruction so you would not break the fiber optics by rough treatment. Safe Usage This user's manual contains various warnings to ensure safe...
