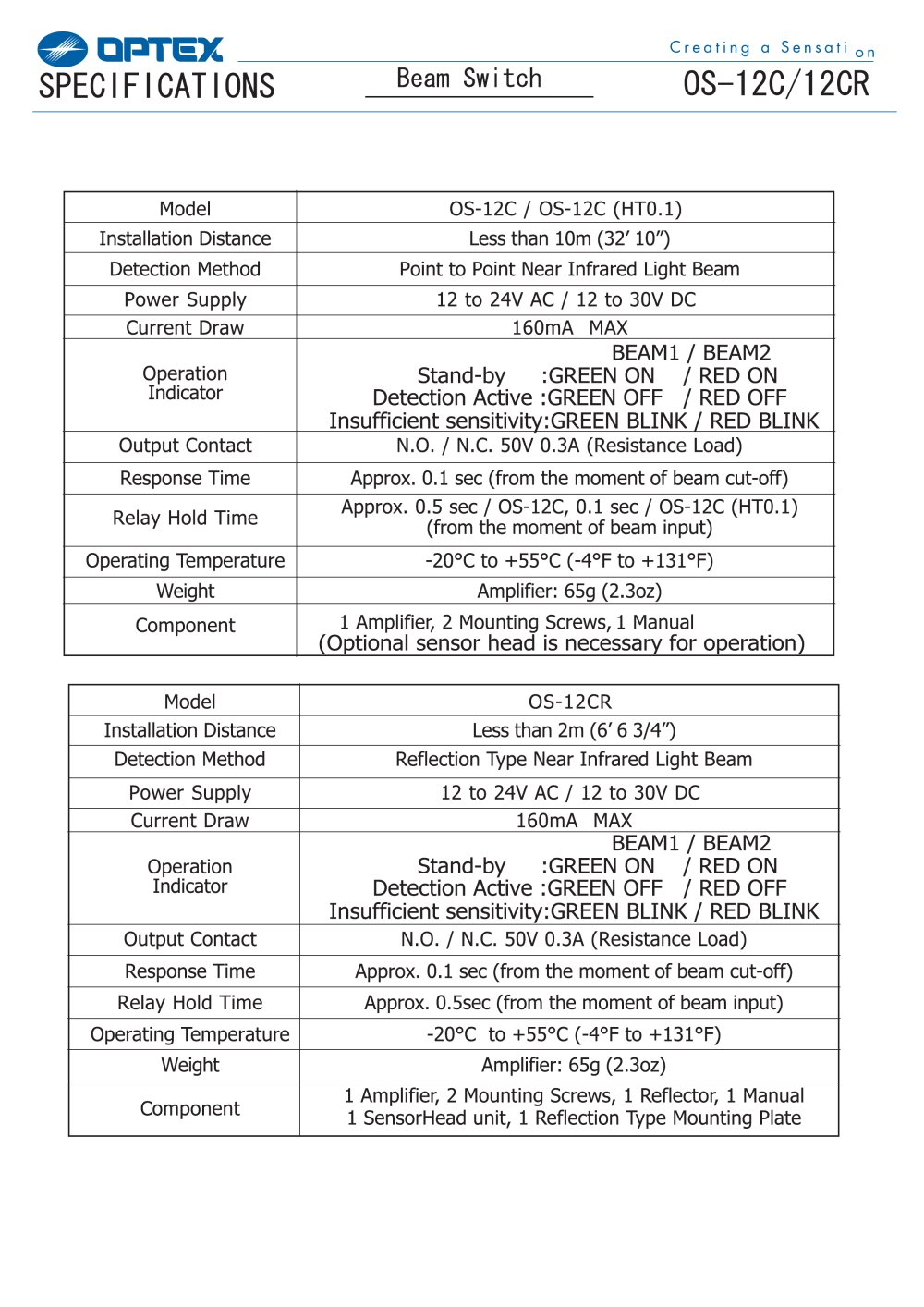

© DPTEX SPECIFICATIONS Creoling o S e n s a 11 Q Beam Switch 0S-12C/12CR Model OS-12C / OS-12C (HT0.1) Installation Distance Less than 10m (32' 10") Dtection Method Point to Point Near Infrared Light Beam Power Supply 12 to 24V AC / 12 to 30V DC Current Draw 160mA MAX Opration Indicator BEAM1 / BEAM 2 Stand-by :GREEN ON / RED ON D驩tection Active :GREEN OFF / RED OFF Insufficient sensitivity:GREEN BLINK / RED BLINK Output Contact N.O. / N.C. 50V 0.3A (Rsistance Load) Response Time Approx. 0.1 sec (from the moment of beam cut-off) Relay Hold Time Approx. 0.5 sec / OS-12C, 0.1 sec / OS-12C (HT0.1) (from the moment of beam input) Operating Temprature -20°C to +55°C (-4°F to +131°F) Weight Amplifier: 65g (2.3oz) Component 1 Amplifier, 2 Mounting Screws, 1 Manual (Optional sensor head is necessary for op驩ration) Model OS-12CR Installation Distance Less than 2m (6' 6 3/4") Dtection Method Reflection Type Near Infrared Light Beam Power Supply 12 to 24V AC / 12 to 30V DC Current Draw 160mA MAX Opration Indicator BEAM1 / BEAM 2 Stand-by :GREEN ON / RED ON D驩tection Active :GREEN OFF / RED OFF Insufficient sensitivity:GREEN BUNK / RED BLINK Output Contact N.O. / N.C. 50V 0.3A (Rsistance Load) Response Time Approx. 0.1 sec (from the moment of beam cut-off) Relay Hold Time Approx. 0.5sec (from the moment of beam input) Operating Temprature -20°C to +55°C (-4°F to +131°F) Weight Amplifier: 65g (2.3oz) Component 1 Amplifier, 2 Mounting Screws, 1 Reflector, 1 Manual 1 SensorHead unit, 1 Reflection Type Mounting Plate

Open the catalog to page 1

O DPTEX OUTER DIMENSIONS Creoting a Sensation Beam Switch 0S-12C/12CR IfcACHlN lot.no. output ne.n.o. I3I4-J ԇf < II II I: II p 5 ^PPP f- ■ 1_i_■ __I_1 co 46(1 13/16") UN IT : mm ( i nch)
