Overview

This document provides technical specifications, installation dimensions, electrical characteristics, and operational notes for the OA-6000 series intelligent sensor controller, including models OA-6000R, OA-6000T, and OA-6000S.

Detection Area and Dimensions

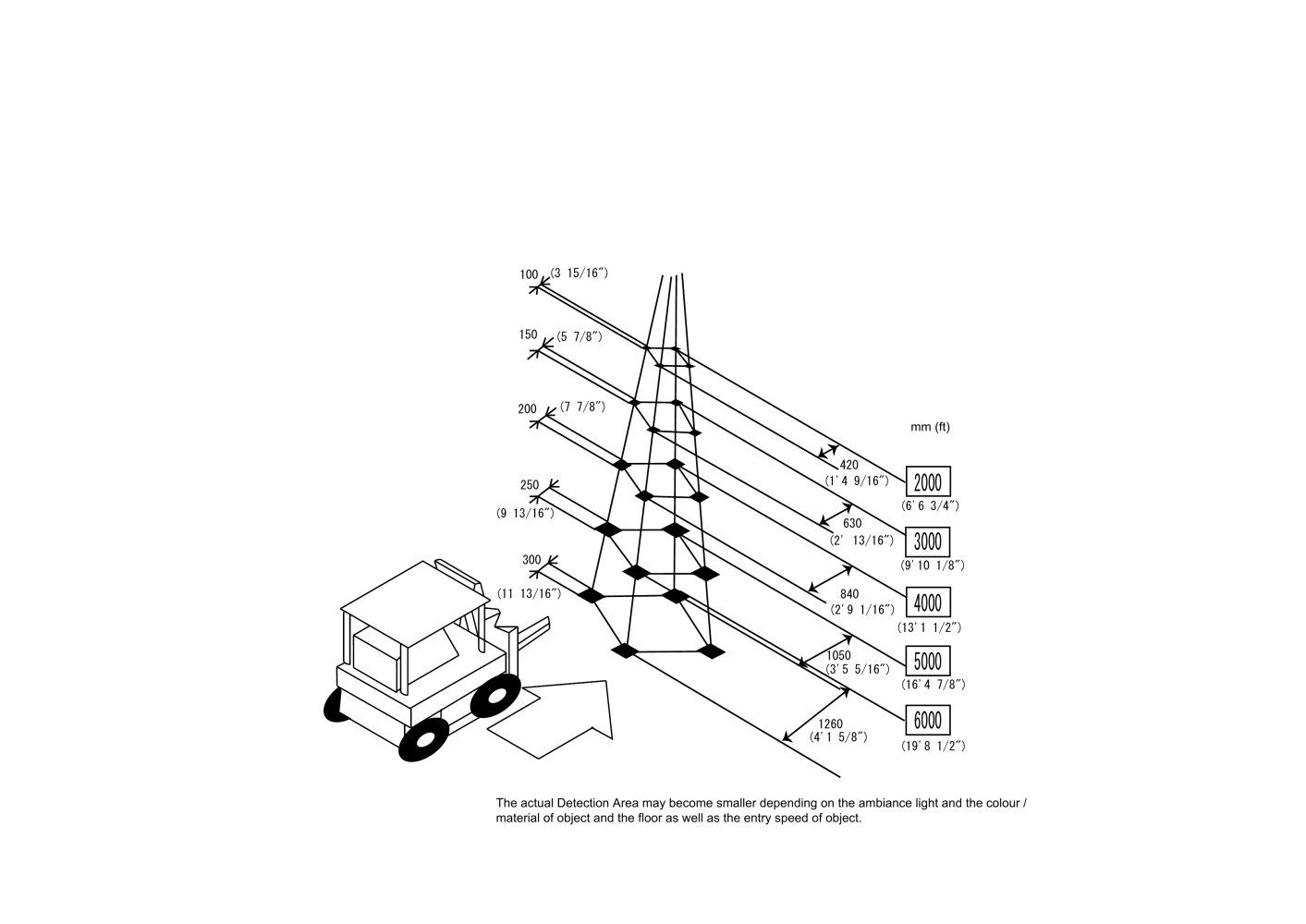

• The detection area varies depending on ambient light, object color/material, floor conditions, and object entry speed.
• Detection distances are provided in millimeters and feet, ranging from 100 mm (3 15/16") up to 6000 mm (19'8 1/2").
• Mounting pitch dimensions are specified with diameters of φ85 mm and φ100 mm.
• Additional dimensional details include various component sizes in millimeters and inches, such as sensor body sizes and mounting hole spacing.

Electrical Specifications

• Power input: AC 100 V to 220 V, 50/60 Hz.
• Power consumption: 19 VA at 100 V, 24 VA at 200 V.
• Output contacts: 1A contact at AC 100 V, 0.1A contact at DC 30 V.
• Power output: DC 24 V for sensor power supply.
• Signal wiring: White wire for signal, black for ground (GND), red for power supply.

Model Identification and Markings

• Model number: OA-6000R (controller), OA-6000T, OA-6000S (sensor units).
• Lot number and product identification are printed on the device.

Installation and Mounting

• Mounting pitch and hole sizes are specified for proper installation.
• Dimensions for mounting and sensor placement are given in both metric and imperial units for precision.

Operational Notes

• The effective detection area may reduce under certain environmental conditions such as lighting and surface characteristics.
• Proper wiring and power supply connections are critical for correct operation.

Summary of Critical Parameters
