OA-EDGE/EU/T

OA-EDGE/EU/T
7Pages

Catalog excerpts

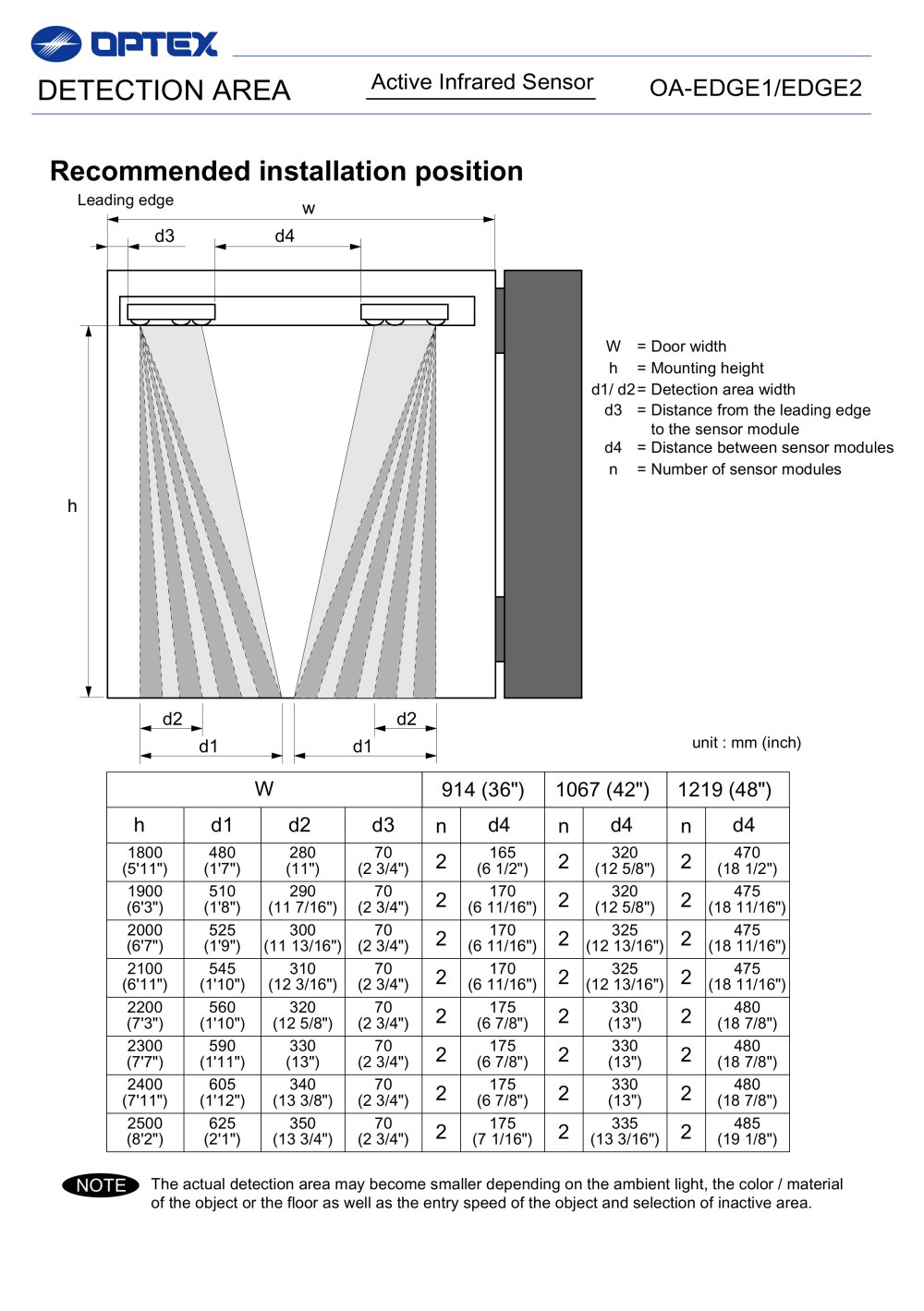

OA-EDGE EU Mounting height Detection h = d1 = area width = Distance from the leading edge to the sensor module The actual detection area may become smaller depending on the ambient light, the color / material of the object or the floor as well as the entry speed of the object. NOTE Recommended installation position Detection area per a module unit : mm (inch) h d1 1800 (5'11") 1900 (6'3") 2000 (6'7") 2100 (6'11") 2200 (7'3") 2300 (7'7") 2400 (7'11") 2500 (8'2") 480 (1'7") 510 (1'8") 525 (1'9") 545 (1'10") 560 (1'10") 590 (1'11") 605 (1'12") 625 (2'1") d2 70 (2 3/4") h d2 d1 Leading edge d2...

Open the catalog to page 2

SPECIFICATIONS Active Infrared Sensor OA-EDGE1/EDGE2 LED indicator Solid Green Slow Green blinking Twice Green blinking Blinking Red Status Stand-by Opening side detection (output 1) Closing side detection (output 2) Incomplete Initialization Learning Incomplete learning Signal saturation Sensor failure Sensor module indicator Communication error Solid Red Solid Orange Red & Green blinking Yellow & Red blinking Slow Red blinking Fast Red blinking Twice Orange blinking Blinking Yellow LED module indicator ON : Solid Red Safety / Test output 1 OFF : Solid Green ON : Solid Orange Safety / Test...

Open the catalog to page 4

SPECIFICATIONS Active Infrared Sensor OA-EDGE EU Profile color Mounting height Detection method Min. configuration Max. configuration Depth angle adjustment Power supply Power consumption LED indicator Test input Safety / Test output 1 Safety / Test output 2 Output hold time Response time Operating temperature Operating humidity IP rate : Silver / Black : 1.5 (4'11") to 3.0m (9'10") : Triangulation : 1 master module +1 LED module : 4 sensor modules +2 LED modules : 0° to +25° : 12 to 24VAC ±10% (50 / 60 Hz) 12 to 30VDC ±10% : < 1.3W (< 2VA at AC) at Min. configuration < 3.5W (< 4.5VA at AC)...

Open the catalog to page 5

SPECIFICATIONS Active Infrared Sensor OA-EDGE T Profile color Mounting height Detection method Min. configuration Max. configuration Depth angle adjustment Power supply Power consumption LED indicator Test input Safety / Test output 1 Safety / Test output 2 Output hold time Response time Operating temperature Operating humidity IP rate Noise level Category Performance level : Silver / Black : 1.5 (4'11") to 3.0m (9'10") * : Triangulation : 1 master module +1 LED module : 4 sensor modules +2 LED modules : 0° to +25° : 12 to 24VAC ±10% (50 / 60 Hz) 12 to 30VDC ±10% : < 1.3W (< 2VA at AC) at...
