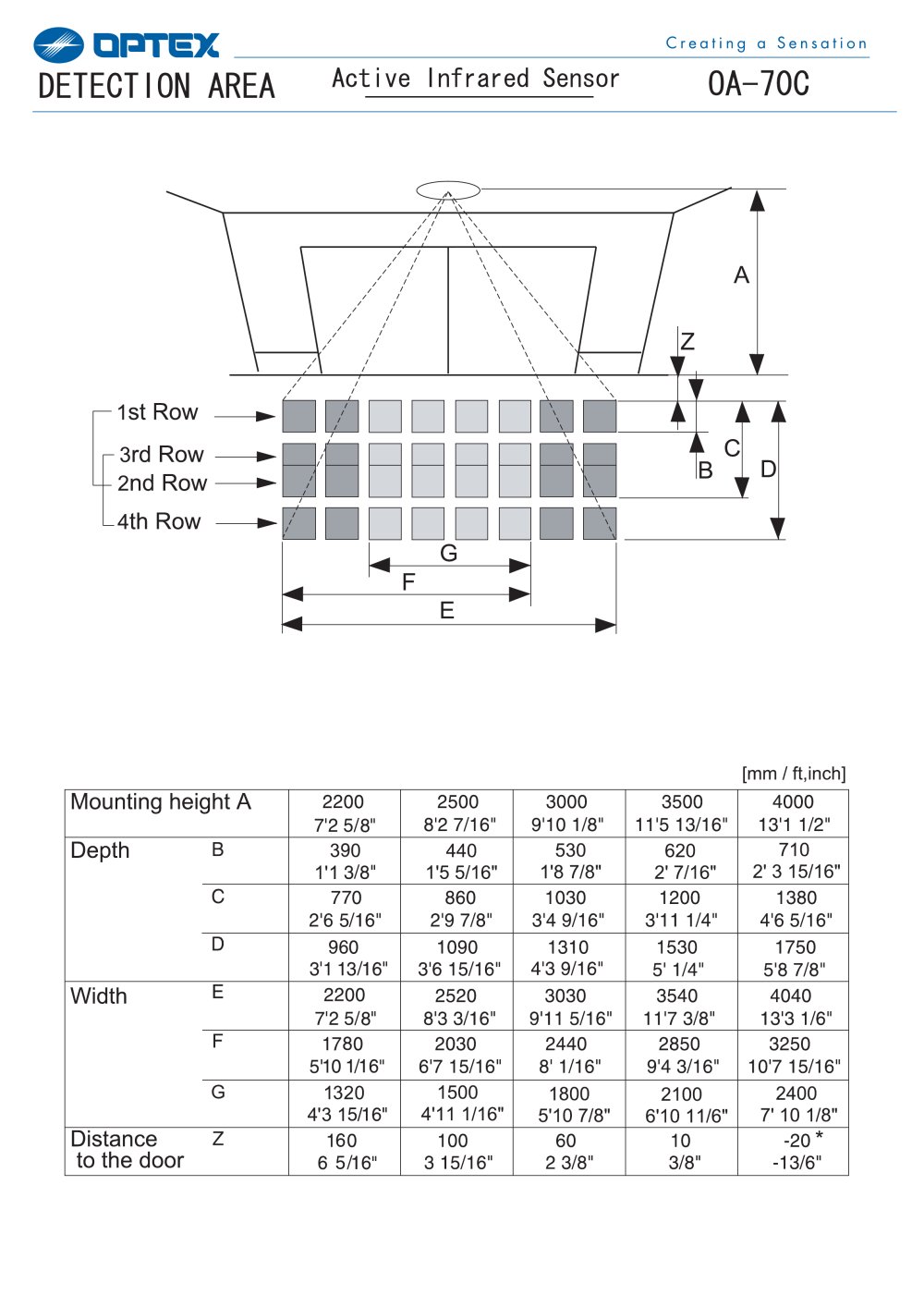

||3r^^ J Creating a Sensation SPECIFICATIONS Active Infrared Sensor 0A-70C Model Cover Colour Mounting Height Détection Area Dtection Method Dtection Area Adjustments Power Supply Power Consumption Op驩ration Indicator OA-70C Silver/White 2.0(6'6 3/4") to 4.0(13'1 1/2")m See the chart in ADJUSTMENT Active Infrared Reflection Depth -6° to 8° Width -10° to+10° 12(-5%) to 24V(+10%) AC 12(-5%) to 30V(+10%) DC <4VA,<200mA(12VDC) Green: Stand-by Red: 1st Row Dtection Active Orange: 2nd-4th Row Dtection Active "Form C" relay 50V 0.3A max. (r驩sistance load) Approx. 0.5 sec. <0.3sec -20°C to +55°C...

Open the catalog to page 2

Creating a Sensation OUTER DIMENSIONS Active Infrared Sensor 0A-70C Recommended diameter of a mounting hole: <M30mm Required ceiling thickness for mounting: 2 to 24mm fl25 (4 15/16") Power/opration indicator light (6 1/8") UNIT:mm(inch)
