OA-203C-2

Product catalog summary

Specifications

Model: OA-203C-2
Cover Color: Silver / Black
Mounting Height: Maximum 3.0m (9'10")
Detection Method: Active Infrared Reflection Method
Detection Angle Adjustment: Adjustable by ±4° with 1° increments
Detection Width Adjustment: Adjustable by ±7° with 3.5° increments
Power Supply: 12 to 30V AC/DC
Current Draw: Maximum 160mA at 12V AC
Operation Indicator: Green for Stand-by, Red for 1st Row Detection Active, Orange for 2nd Row Detection
Output: "Form C" relay 50V 0.3A Max.
Relay Hold Time: Approximately 0.5 seconds
Response Time: Less than 0.3 seconds
Weight: 200g (7.1oz)
Operating Temperature: -20℃ to +55℃ (-4°F to +131°F)
Accessories: Includes 1 Cable (3m), 2 Mounting Screws, 1 Operation Manual, 1 Mounting Template, 1 Area Adjustment Tool

Outer Dimensions

The unit's dimensions are provided in millimeters, with key measurements including 221mm in length and other specific dimensions for installation purposes.

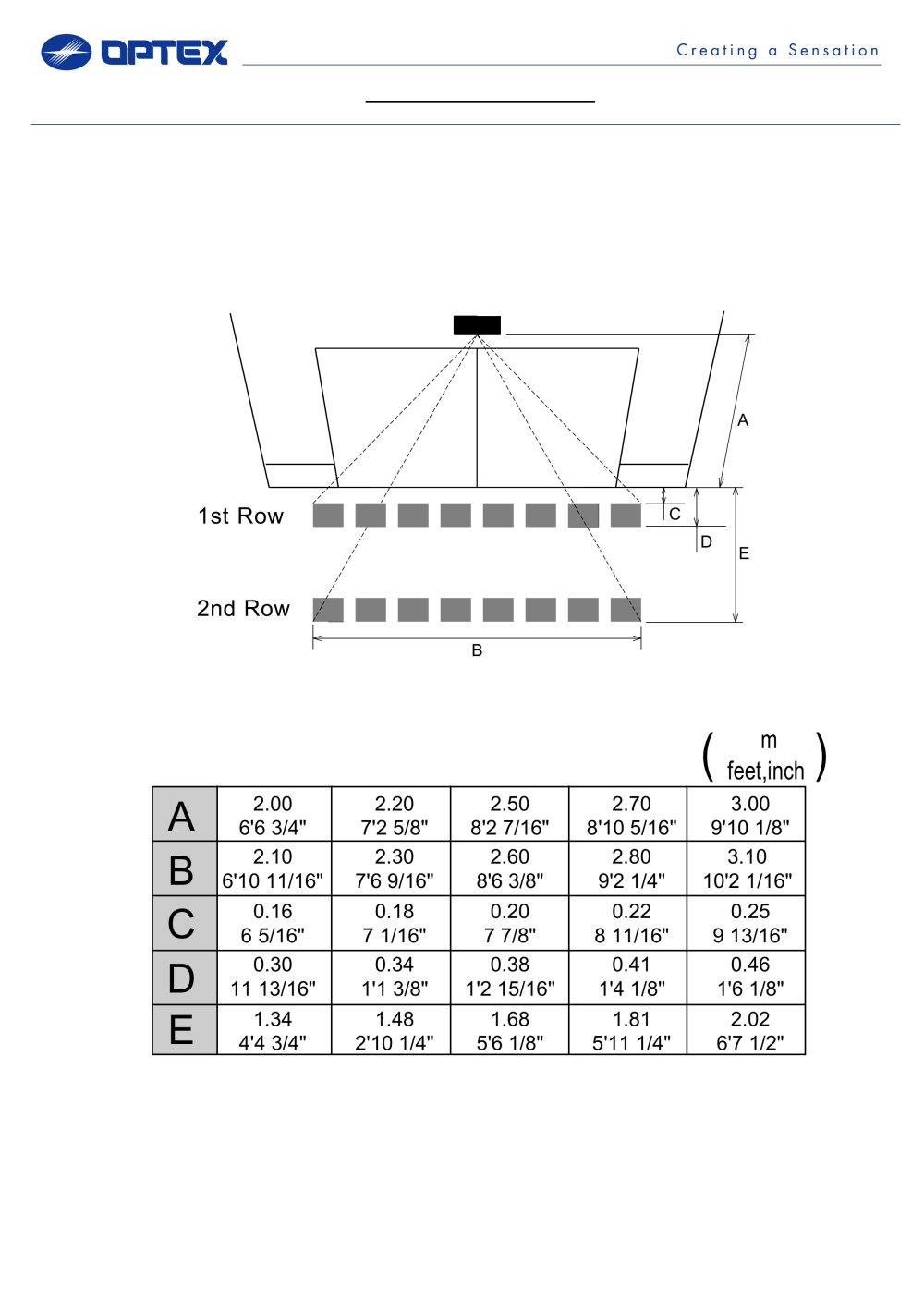

Detection Area

The detection area is specified in both meters and feet/inches, with various measurements indicating the sensor's range and coverage capabilities.

Catalog excerpts

Active Infrared Sensor OA-203C-2 A

Open the catalog to page 1

Active Infrared Sensor OA-203C-2 Adjustment Adjustment : OA-203C-2 : Silver / Black : 3.0m(9'10") Max. : Active Infrared Reflection Method : ±4°adjustable by 1°every one click (Deep / Shallow) : ±7°adjustable by 3.5°every one click : 12 to 30V AC/DC : 160mA Max.(at 12V AC) : Green : Stand-by Red : 1st Row Detection Active

Open the catalog to page 2

OA-203C-2

OA-203C-2
