MIRAGE
3Pages

Catalog excerpts

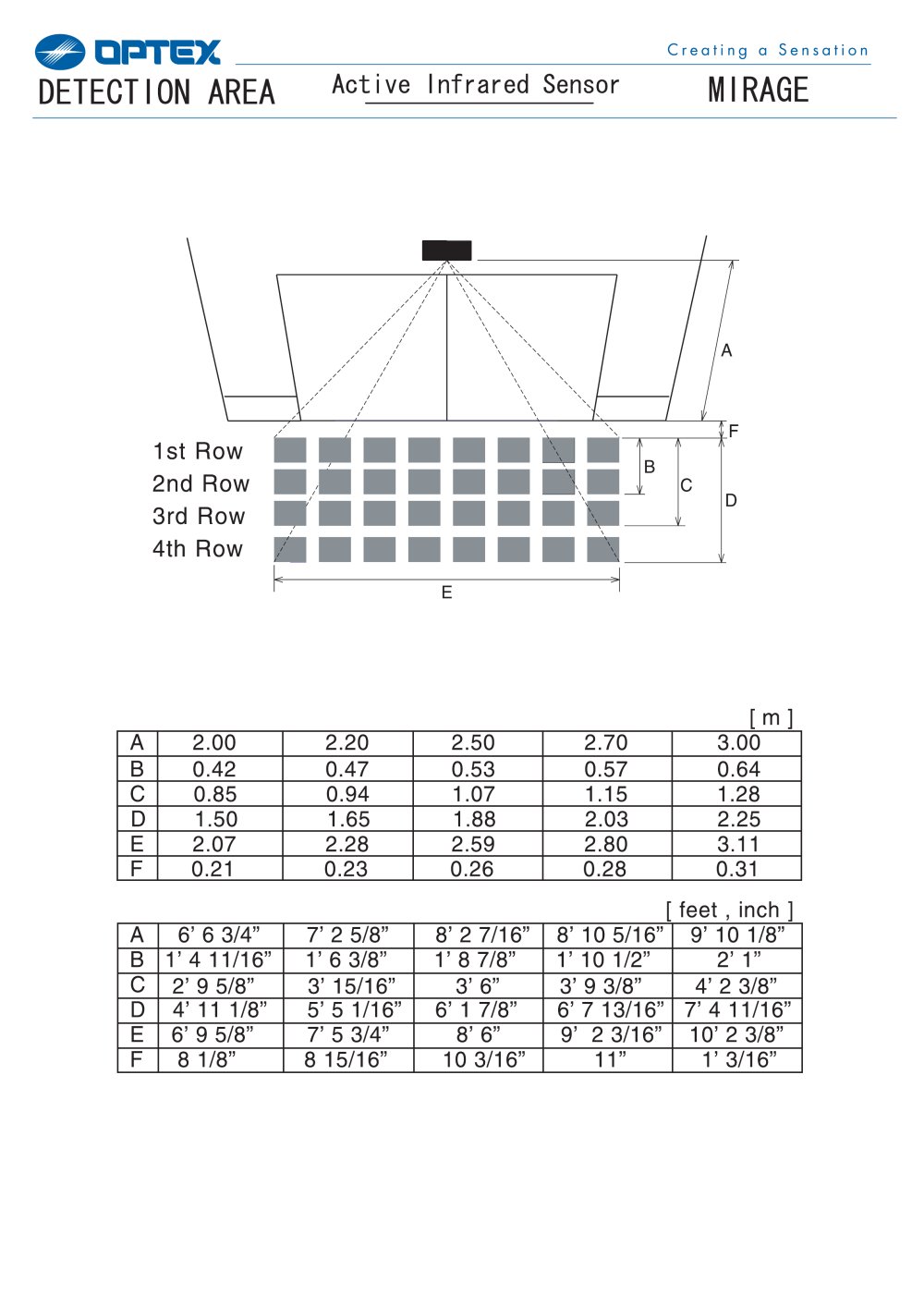

SPECIFICATIONS Active Infrared Sensor MI RAGE Model Cover color type Mounting Height Dtection Area Dtection Method D驩tection Angle Adjustments Dtection Width Adjustments Power Supply Current Draw Opration Indicator : MIRAGE : Black : 3.0m (9'10") Max. : See "D驩tection Area" : Active Infrared Reflection Method : ±4° adjustable by 1° every one click (Deep / Shallow) : 4 type selectable with Adjustment Shutters (Not angle adjustment) : 12 to 30VAC/DC : 200mA Max. (At 12V AC) : Green / Stand-by Red /1 st Row Dtection Active : "Form C" relay 50V 0.3A Max. (Rsistance Load) : 0.5 sec. : < 0.3 sec....

Open the catalog to page 2

J Creating a Sensatii OUTER DIMENSIONS Active Infrared Sensor MIRAGE 234 (9 3/16") 37 (1 7/16") Ti f □ □ 229.5 (9 1/16") co LO c\i co AdjustmentFrame 244 (9 5/8") 253 (9 15/16") 235 (9 1/4") mm (inch) 00 Mounting Board Thickness : < 26mm (1") UNIT:mm(inch)

Open the catalog to page 3
