Rollei AIC Digital Camera

Rollei AIC Digital Camera

Product catalog summary

Overview: The Rollei AIC is a robust digital camera system designed for high-vibration environments, such as aircraft, incorporating Phase One's Digital Back for superior image quality.

Key Features/Benefits:

Minimal moving parts for enhanced durability and reliability in high-vibration settings.
High-resolution digital images with a 22-megapixel array size (5440 x 4080) and 9-micron pixel size.
Shutter speed ranges from 1/125 to 1/1000 seconds, with an electronically controlled leaf shutter.
Stable one-piece aluminum alloy body for aerial application endurance.
Stable metric calibration across multiple missions.
Includes an additional 50 mm lens for backup during missions.
AC Control 6008 software for remote camera monitoring and control.
Flexible orientation options: landscape or portrait.

Camera Specifications:

Aspect ratio of 3:4 with automatic aperture mode and shutter priority.
Exposure compensation of ±1 EV in 1/3 EV steps.
Maximum exposure rate of 4 seconds with center-weighted average light metering.

Camera Computer:

Hardware includes a ruggedized RAID internal disk drive (320 GB) and a removable disk drive (250 GB).
Connections available: Ethernet, TTL, RS-232C interfaces compatible with standard Flight Management Systems and Applanix POS/AV.
Software includes AC Control 6008 for parameter control and log reporting, and Capture One for raw image capture and post-processing to TIFF format.

Physical and Environmental Specifications:

Camera size: 150 x 150 x 250 mm, weight: 3.6 kg (with 50 mm lens).
Camera computer size: 146 x 483 x 406 mm, weight: ~21 kg.
Operating temperature range: Camera: -10 to +40°C, Computer: -10 to +55°C.
Humidity tolerance: 5 – 90% RH non-condensing.
Power requirements: Camera: 15 – 18 VDC (min 250 mA), Computer: 28 VDC, ~300 W (max).

Catalog excerpts

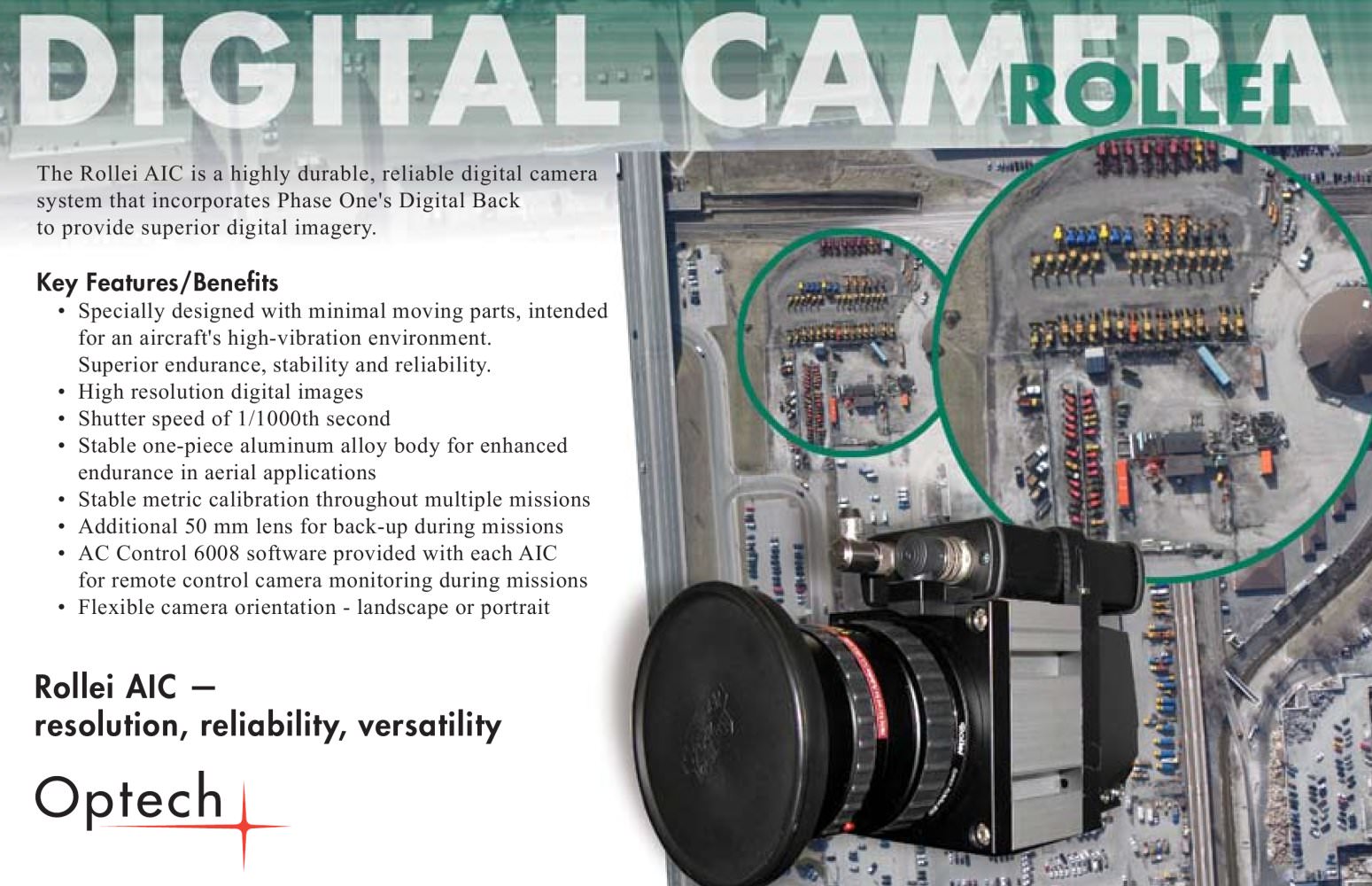

The Rollei AIC is a highly durable, reliable digital camera system that incorporates Phase One's Digital Back to provide superior digital imagery. > Specially designed with minimal moving parts, intended for an aircraft's high-vibration environment. Superior endurance, stability and reliability. Օ High resolution digital images Shutter speed of 1/1000th second Օ Stable one-piece aluminum alloy body for enhanced endurance in aerial applications Stable metric calibration throughout multiple missions Օ Additional 50 mm lens for back-up during missions AC Control 6008 software provided with each AIC for remote control camera monitoring during missions Օ Flexible camera orientation - landscape or portrait >

Open the catalog to page 1

Software AC Control 6008: Controls parameters such as camera Image capture aperture, shutter speed, performance. Stores log report of all camera functions performed during mission including errors and warnings. Capture One: Controls capture of images in raw Image extraction digital format. Develops the raw images and post-processing to 8- or 16-bit TIFF format. developmentOptional QC thumbnail image via ethernet or remote display. CAMERA COMPUTERHardware Internal disk drive: Ruggedized RAID, 320 GB Removable disk drive: 250 GB Connections: Ethernet, TTL, RS-232C interfaces to standard Flight...

Open the catalog to page 2
