Product catalog summary

Overview
Optech is a leader in laser-based rangefinding instruments, offering solutions for topographic mapping, hydrographic applications, laser imaging, and industrial rangefinders. Their products are designed for non-contact, precise measurements in various industrial settings.

Product Series
Sentinel Series: Non-intrusive level monitors for inventory control, effective up to 150 meters.
Sentry Series: Short-range laser technology for level monitoring and object positioning, up to 25 meters.
Watchman Series: Long-range object positioners, effective up to 250 meters or 1,500 meters with reflectors.

Laser Technology Advantages
Optech's laser rangefinders provide precise, reliable, and fast measurements with high update rates. They feature "last-pulse logic" and internal windowing software to filter false returns.

Technical Specifications

Rapid measurements: Up to 15 readings per second.
Accuracy: 2-4 cm depending on the model.
Non-contact measurements unaffected by dust, temperature, or vibration.
Factory-calibrated and easy to set up with low maintenance.
Compatible with RS-232C, RS-422, and analog outputs.

Applications
Monitoring Liquids: Suitable for chemical, petrochemical, and pharmaceutical industries, capable of monitoring turbulent or agitated slurries and detecting foam layers.
Monitoring Solids: Effective for measuring stockpiles, bins, and silos, with superior dust penetration and the ability to measure reflective and non-reflective surfaces.
Position Monitoring: Tracks bulk material-handling equipment and moving industrial objects accurately in challenging environments.

Environmental and Safety Features

Operating temperature range: -40°C to 150°C.
Explosion-proof enclosures with CSA, CE, and FM approvals.
Class 1 eyesafe laser technology.

Accessories and Options

Sentry Cooling Plate for high-temperature applications.
Air Curtains to maintain clean windows.
Hand-Held Remote Display and Flange Kit for easy installation and maintenance.

Catalog excerpts

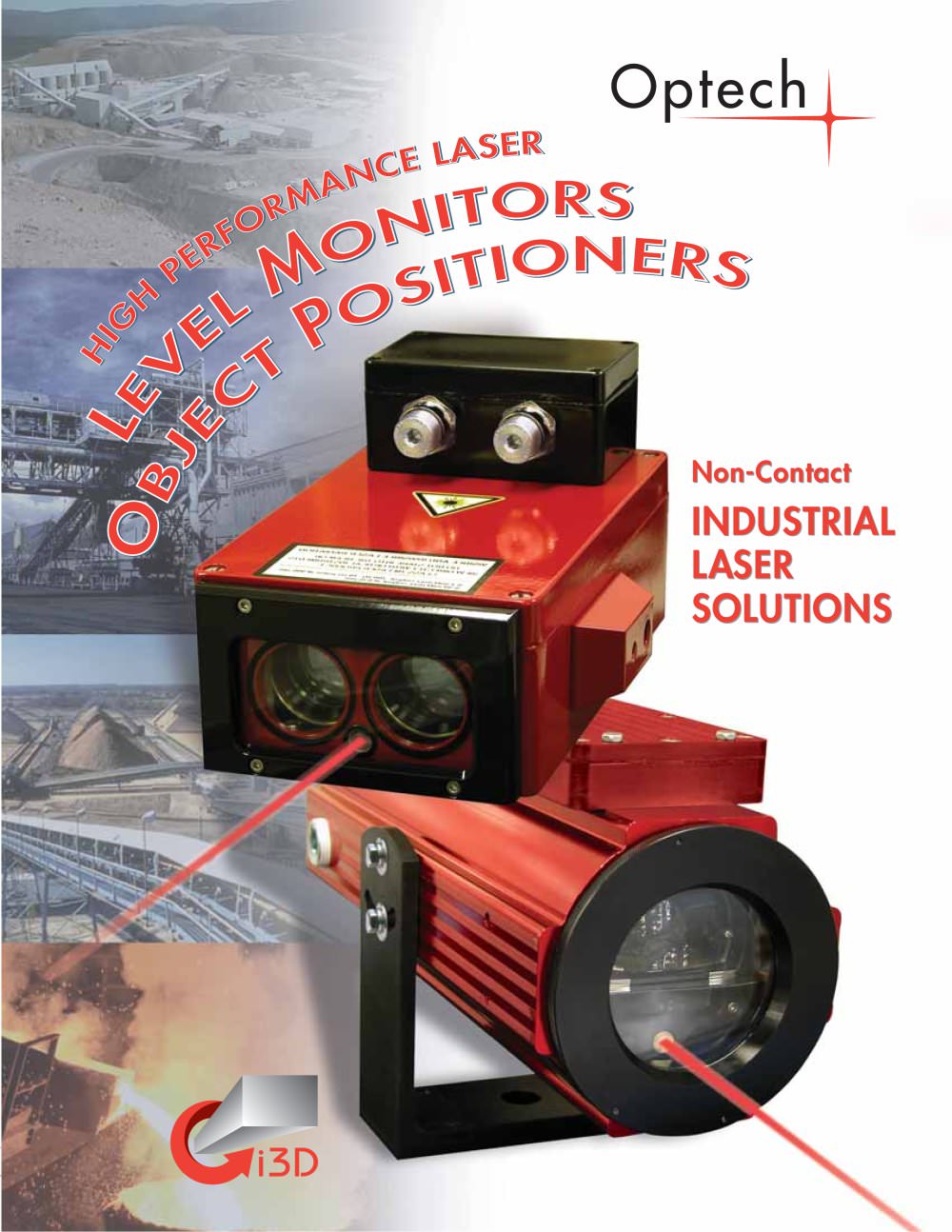

Non-Contact Non-Contact INDUSTRIAL LASER SOLUTIONS INDUSTRIALLASER SOLUTIONS >

Open the catalog to page 1

OLUTIONS The Optech Advantage Optech is the global market leader in advanced laser-based rangefinding instruments, with clients world-wide. Optech has over 30 years of experience in pulsed laser radar (lidar) applications. We offer industry-tested solutions in topographic mapping, hydrographic applications, laser imaging, space-based atmospheric monitors and landing/ docking systems, as well as industrial rangefinders. Sentry Series The Sentry SR series is the latest in laser technology, designed for both level monitoring and object positioning. It operates at short ranges of up to 25 meters...

Open the catalog to page 2

Optech Technology Rapid measurements, up to 15 readings per secondՕAccurate, with absolute accuracies of 2-4 cm depending on the modelNon-contact, non-intrusive measurements ՕMeasure through moderate amounts of dust,by using advanced softwareNarrow beam divergence for long-range tracking of small targets, accurate unit location/alignment, and to aim past obstacles > DVANTAGE Made to Measure! The ultimate solution for industrial process challenges, OptechՒs laser rangefinders exploit the unique properties of light to produce precise, reliable, fast measurements. High update rates provide accurate...

Open the catalog to page 3

Typical Applications Monitoring Solids Report material levels for solids in bins, silos and stockpiles such as:֕Polystyrene, nylon and PRVC pellets Talc and lime powders ՕOre and muck in ore passes Wet or dry wood chips ՕStockpiled coal Typical Applications Monitoring Liquids > In the chemical, petrochemical, pharmaceutical and other industries, gauge tank levels are used for inventory control on low-dielectric crude and refined products such as:֕Liquid asphalt Polymerization reactor vessels (under high pressure)ՕReactor vessels (under vacuum) Molten glass ՕFerrous and non-ferrous metals and...

Open the catalog to page 4
