• High-quality color digital imagery
• Fast shutter speed of 1/4000th second
• Interchangeable Carl Zeiss lenses (40 mm, 60 mm)
• Extreme accuracy in automatic measurements
• Direct georeferencing capability
• VIS and CIR options
• Ultra-efficient data processing and product handling
• Rapid data capture with a super-fast digital chip

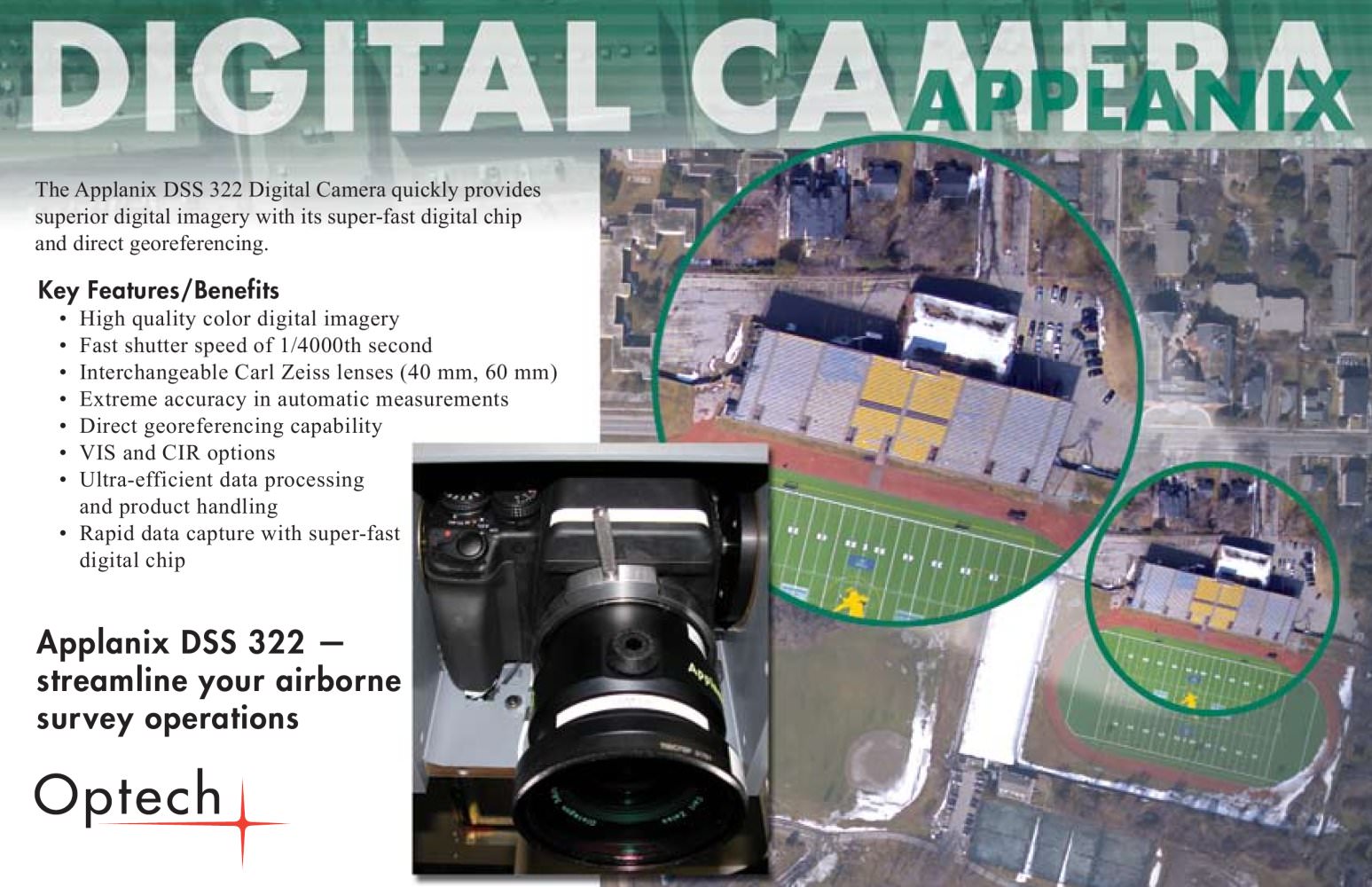

The Applanix DSS 322 Digital Camera is designed to streamline airborne survey operations by providing superior digital imagery quickly. It features a super-fast digital chip and direct georeferencing capabilities.

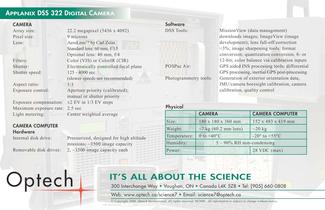

• Array size: 22.2 megapixel (5436 x 4092)
• Pixel size: 9 microns
• Lens: AeroLensTM by Carl Zeiss with standard 60 mm, f/3.5 and optional 40 mm, f/4
• Filters: Color (VIS) or ColorIR (CIR)
• Shutter: Electronically controlled focal plane with speeds from 125 to 4000 sec
• Aspect ratio: 1:1
• Exposure control: Aperture priority (calibrated), manual or shutter priority
• Exposure compensation: ±2 EV in 1/3 EV steps
• Maximum exposure rate: 2.5 sec
• Light metering: Center weighted average

• Hardware: Internal and removable disk drives with ~3500 image capacity each
• Software: DSS Tools for data management and image development, POSPac Air for GPS aided INS processing, and photogrammetry tools for exterior orientation data generation and quality control

• Camera size: 180 x 180 x 360 mm, weight: ~7 kg (60.2 mm lens)
• Camera computer size: 152 x 483 x 419 mm, weight: ~20 kg
• Operating temperature: Camera 0 to +40°C, Computer -20° to +55°C
• Humidity: 5 – 90% RH non-condensing
• Power: 28 VDC (max)
