Introduction
The ALTM Gemini is the latest addition to the ALTM family, offering enhanced capabilities for base mapping. It maintains the performance of the ALTM 3100EA while allowing higher altitude operations at peak repetition rates, making it ideal for base mapping needs. Key features include intensity capture with a large dynamic range for high-quality lidar imagery.

Technological Advancements
The ALTM Gemini features revolutionary multipulse technology, enabling users to double conventional operating altitudes without compromising data density compared to single-pulse systems. It boasts an effective pulse repetition rate of 167 kHz and advanced inertial technology to maximize mapping efficiency.

Specifications

Operational Altitudes: 150-4000 m AGL, nominal
Horizontal Accuracy: 1/10,000 x altitude (m AGL)
Elevation Accuracy: < 5–30 cm; 1 s
Laser Repetition Rate: Programmable, 33–167 kHz
Beam Divergence: Dual divergence: 0.25 mrad and 0.8 mrad, nominal
Scan Frequency: 0 to 70 Hz, programmable in 1 Hz increments
Scan FOV: 0-50°, programmable in ±1º increments
Intensity Capture: 12-bit dynamic range
Range Capture: Up to 4 range measurements, including 1st, 2nd, 3rd, last returns
Power Requirements: 28 V, 35 A (peak)
Laser Classification: Class IV (US FDA 21 CFR)
Data Storage: Ruggedized removable SCSI hard disks
Position and Orientation System: POS AV 510 OEM with embedded BD960 GNSS receiver (GPS and GLONASS)

Environmental Conditions

Humidity: 0-95% non-condensing
Storage Temperature: Control rack: -10°C to +50°C; Sensor head: 0°C to +50°C
Operating Temperature: Control rack: +10° to +35°C; Sensor head: -10° to +35°C (with provided sensor insulating jacket)

Conclusion
The ALTM Gemini is a versatile and advanced lidar system designed for efficient base mapping, offering customizable options to meet specific requirements and ensuring high accuracy and quality in data collection.

Catalog excerpts

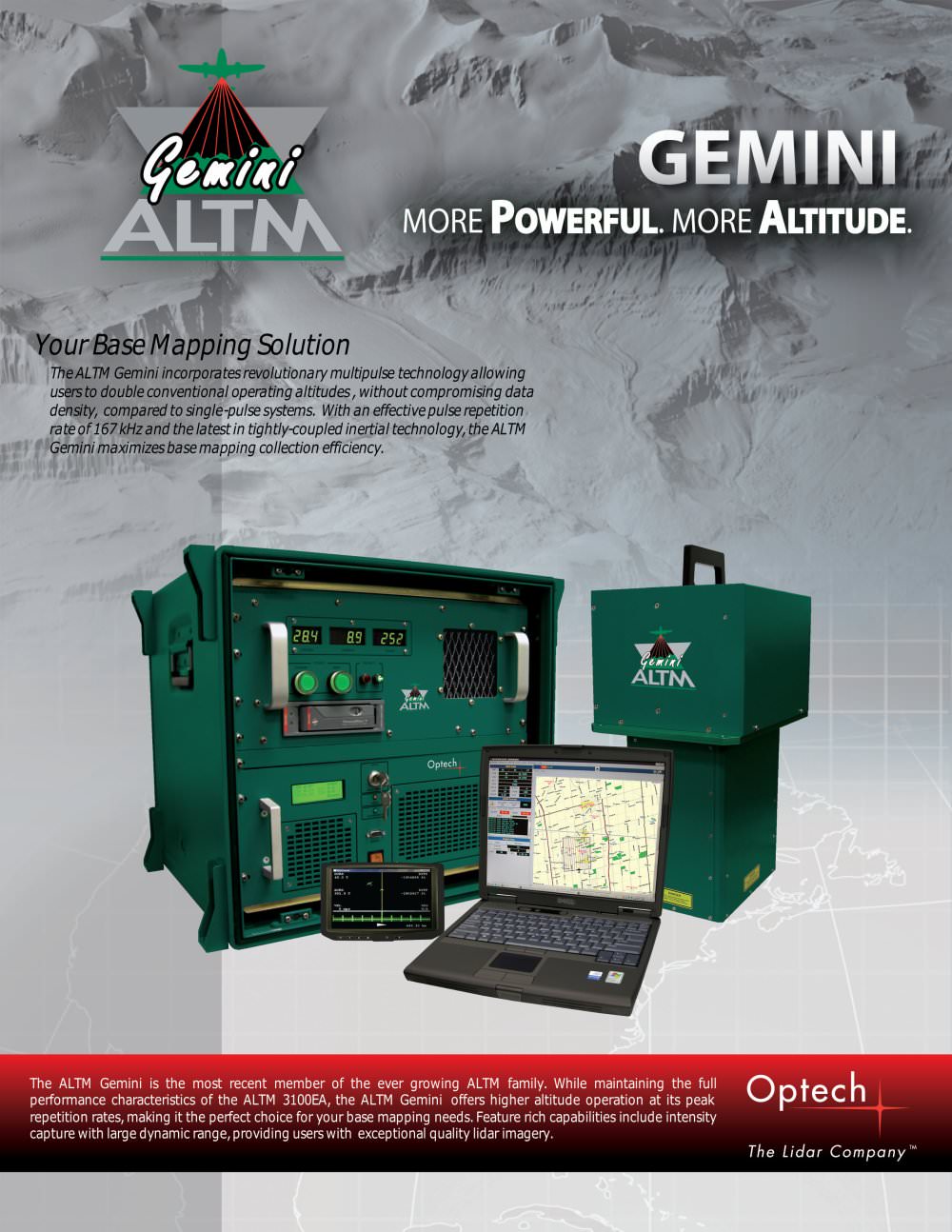

The ALTM Gemini is the most recent member of the ever growing ALTM family. While maintaining the fullperformance characteristics of the ALTM 3100EA, the ALTM Gemini offers higher altitude operation at its peak repetition rates, making it the perfect choice for your base mapping needs. Feature rich capabilities include intensity capture with large dynamic range, providing users with exceptional quality lidar imagery. >

Open the catalog to page 1

Parameter Specification > 1 150-4000 m AGL,nominalOperational Altitudes Horizontal Accuracy > 2, 3 1/5,500 x altitude (m AGL); 1 s Elevation Accuracy > 3 s Programmable, 33167 kHzEffective Laser Repetition Rate Internal video camera (NTSC or PAL)Video CameraControl rack: 65 cm x 59 cm x 49 cm; 53.2 kgSensor head: 26 cm x 19 cm x 57 cm; 23.4 kgDimensions and Weight0-95% non-condensingHumidityControl rack:-10 > st , 2 > nd , 3 > rd , last returnsRange Capture< 5֖30 cm; 1 0-50 Programmable in б 1increments;Scan FOV12-bit dynamic rangeMeasurements for all recorded returns, including last returnIntensity...
