The ALTM Gemini is the latest addition to the ALTM family, offering enhanced capabilities for base mapping. It maintains the performance of the ALTM 3100EA while allowing higher altitude operations at peak repetition rates, making it ideal for base mapping needs.

Key Features

Multipulse Technology: Allows operation at double the conventional altitudes without compromising data density compared to single-pulse systems.
Pulse Repetition Rate: Effective rate of 167 kHz, enhancing mapping efficiency.
Intensity Capture: Provides lidar imagery with a large dynamic range.

Specifications

Operational Altitudes: 150-4000 m AGL, nominal.
Horizontal Accuracy: 1/5,500 x altitude (m AGL); 1 s.
Elevation Accuracy: Less than 5–30 cm; 1 s.
Laser Classification: Class IV (US FDA 21 CFR).
Beam Divergence: Dual divergence of 0.25 mrad and 0.8 mrad, nominal.
Power Requirements: 28 V, 35 A (peak).
Operating Temperature: Control rack: +10° to +35°C; Sensor head: -10° to +35°C (with insulating jacket).
Storage Temperature: Control rack: -10°C to +50°C; Sensor head: 0°C to +50°C.
Humidity: 0-95% non-condensing.

Additional Features

Data Storage: Ruggedized removable SCSI hard disks.
Position and Orientation System: POS AV 510 OEM with embedded BD960 GNSS receiver (GPS and GLONASS).
Roll Compensation: ±5° at full FOV, more compensation available if FOV reduced.
Scan Frequency: 0 to 70 Hz, programmable in 1 Hz increments.
Scan FOV: 0-50°, programmable in ±1º increments.
Range Capture: Up to 4 range measurements, including 1st, 2nd, 3rd, and last returns.

Conclusion
The ALTM Gemini is a versatile and advanced lidar system, offering high-altitude operation and exceptional data quality, making it a suitable choice for comprehensive base mapping solutions.

Catalog excerpts

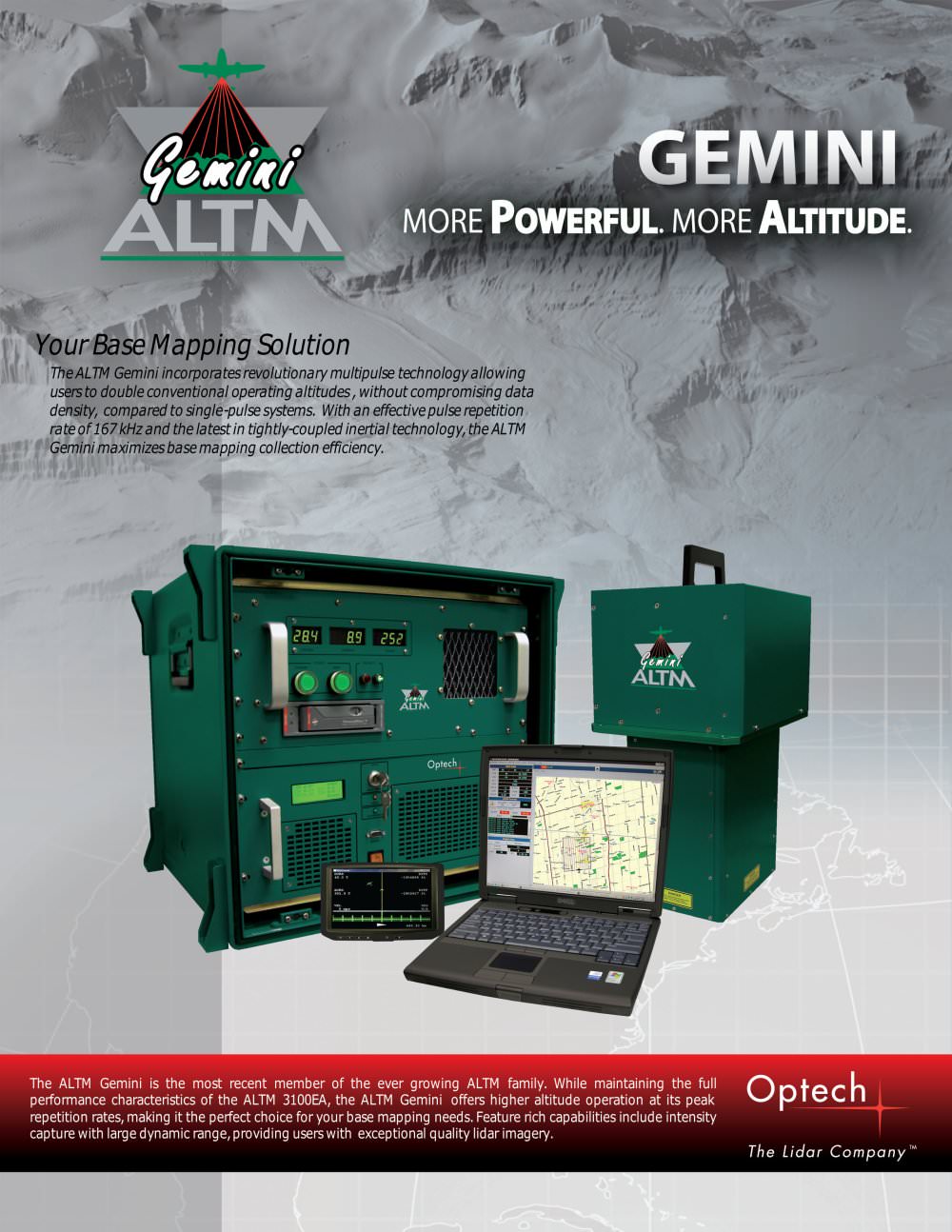

The ALTM Gemini is the most recent member of the ever growing ALTM family. While maintaining the fullperformance characteristics of the ALTM 3100EA, the ALTM Gemini offers higher altitude operation at its peak repetition rates, making it the perfect choice for your base mapping needs. Feature rich capabilities include intensity capture with large dynamic range, providing users with exceptional quality lidar imagery. >

Open the catalog to page 1

Parameter Specification > 1 150-4000 m AGL,nominalOperational Altitudes Horizontal Accuracy > 2, 3 1/5,500 x altitude (m AGL); 1 s Elevation Accuracy > 3 s Programmable, 33167 kHzEffective Laser Repetition Rate Internal video camera (NTSC or PAL)Video CameraControl rack: 65 cm x 59 cm x 49 cm; 53.2 kgSensor head: 26 cm x 19 cm x 57 cm; 23.4 kgDimensions and Weight0-95% non-condensingHumidityControl rack:-10 > st , 2 > nd , 3 > rd , last returnsRange Capture< 5֖30 cm; 1 0-50 Programmable in б 1increments;Scan FOV12-bit dynamic rangeMeasurements for all recorded returns, including last returnIntensity...
