ALTM 3100EA Airborne Laser Terrain Mapper

ALTM 3100EA Airborne Laser Terrain Mapper

Product catalog summary

Introduction
The Optech ALTM 3100EA is an advanced Airborne Laser Terrain Mapper designed to provide enhanced accuracy for detailed mapping. It offers precision results with an accuracy of ±3 cm under optimal conditions, making it ideal for large-scale mapping projects.

Specifications

Operating Altitude: 80-3,500 m nominal
Horizontal Accuracy: 1/5,500 x altitude; 1-sigma
Range Capture: Up to 4 range measurements per pulse
Intensity Capture: 12-bit dynamic range
Scan Frequency: Variable, up to 70 Hz
Scan Angle: Variable from 0 to ±25°
Swath Width: Variable from 0 to 0.93 x altitude
Laser Repetition Rate: Up to 100 kHz
Beam Divergence: Dual divergence 0.3 mrad or 0.8 mrad
Power Requirements: 28 VDC, 35 A max
Operating Temperature: Control rack: +10°C to +35°C; Sensor head: -10°C to +35°C
Storage Temperature: -10°C to +50°C
Humidity: 0 - 95% non-condensing

Control Rack and Sensor Head
The control rack is vibration-isolated with dimensions of 65 cm x 59 cm x 49 cm and a weight of 53.2 kg. The sensor head fits standard camera mounts and weighs 23.4 kg.

Processing Software
The REALM Survey Suite includes differential kinematic GPS solutions, trajectory optimization, and vegetation classification features. It is compatible with Windows NT/2000/XP.

GPS Ground Support
Requires multiple base stations with dual frequency receivers and Rinex output. GPS data quality is crucial for maintaining accuracy, requiring at least four satellites in lock and a PDOP of less than 4.

Contact Information
Optech International, Inc. in the USA and Optech Incorporated in Canada provide contact details for inquiries.

Catalog excerpts

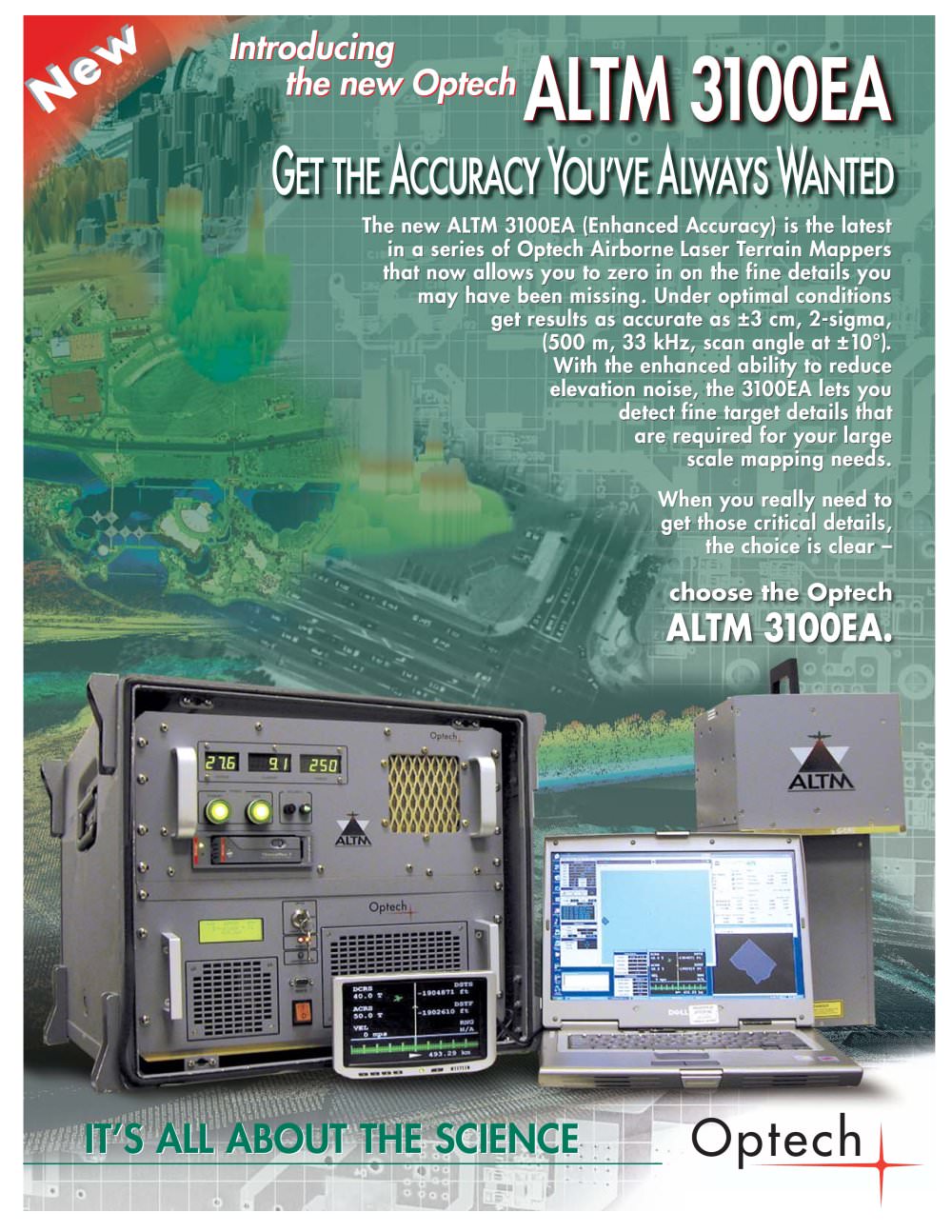

ALTM 3100EA Airborne Laser Terrain Mapper-1

The new ALTM The new ALTM 31 The new ALTM The new ALTM 31 > 00EA (Enhanced 00EA (Enhanced A 00EA (Enhanced 00EA (Enhanced A > ccuracy) is the latest ccuracy) is the latest ccuracy) is the latest ccuracy) is the latest > in a series of Optech in a series of Optech in a series of Optech in a series of Optech Airborne Airborne Airborne Airborne Laser Laser T Laser Laser T errain Mappers errain Mappers errain Mappers errain Mappers that now allows you to zero in on the fine details you that now allows you to zero in on the fine details you that now allows you to zero in on the fine details you that now allows you to zero in on the fine details you may have been missing. Under optimal conditions may have been missing. Under optimal conditions may have been missing. Under optimal conditions may have been missing. Under optimal conditions get results as accurate as ұ3 cm, 2-sigma, get results as accurate as 3 cm, 2-sigma, get results as accurate as ѱ3 cm, 2-sigma, get results as accurate as 3 cm, 2-sigma, (500 m, (500 m, 3 (500 m, (500 m, 3 3 kHz, scan angle at ѱ 3 kHz, scan angle at 10Ѱ). 3 kHz, scan angle at 3 kHz, scan angle at ѱ10). With the enhanced ability to reduce With the enhanced ability to reduce With the enhanced ability to reduce With the enhanced ability to reduce elevation noise, the elevation noise, the 31 elevation noise, the elevation noise, the 31 00EA lets you 00EA lets you 00EA lets you 00EA lets you detect fine target details that detect fine target details that detect fine target details that detect fine target details that are required for your large are required for your large are required for your large are required for your large scale mapping needs. scale mapping needs. scale mapping needs. scale mapping needs. When you really need to When you really need to When you really need to When you really need to get those critical details, get those critical details, get those critical details, get those critical details, the choice is clear Ж the choice is clear the choice is clear ֖ the choice is clear >

Open the catalog to page 1
